General Description of Plywood Hot Press:
Plywood Hot Press Machine is a key equipment for plywood manufacturing plant. It functions to hot pressing the glued plywood slab and make it better gluing.
The plywood hot press machine mainly including 3 parts: main machine parts, controlling and driving parts & heating system.

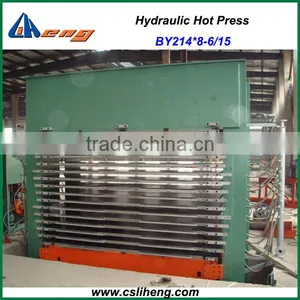

Picture of Plywood Hot Press Machine:
Specification of Plywood Hot Press Machine, BY214x8-6/15
1. Pressure: 600ton (500ton 800ton model available)
2. Layer: 15layers (8-15layer model available)
3. Platen size: 2700x1370x42mm (52mm thickness palten is available)
4. Opening: 70mm (80mm, 100mm, 12mm model is available)
5. Cylinder: ¢400mmX2pcs (¢360*2+¢190mm model is available)
6. Cylinder strike: 1050mm;
7. Working Pressure: 25-27MPa;
8. Total Power: 26kw;
9. Weight: 34.5ton;
10. Dimension: 4800*1480*4750mm
Pressure, layer, platen size and thickness. opening size can be changed as customer's detailed requirements.
Advantages of our Plywood Hot Press Machine:
1. Frame use high quality steel, and whole frame is dismountable for easy container loading;
2. Use China high quality cylinder, with long working life;
3. Precisionly processed steel platen, double inlets and outlets of heating source, with even heating of plywood, no burning black point on surface;
4. Taiwan Made seals for cylinder, with long working life, no easy breakdown during working;
5. Other spare parts supplied steadily in long term even beyond warranty time.

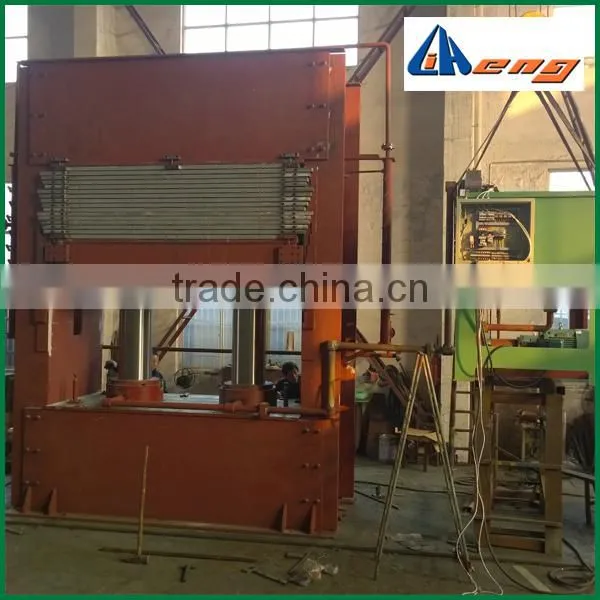

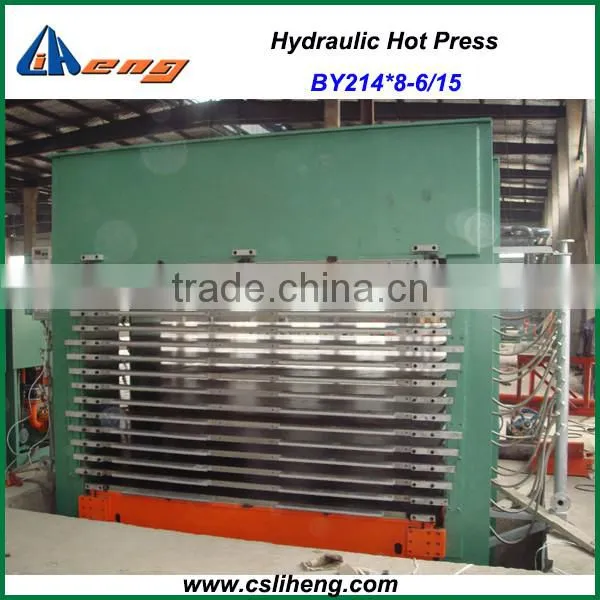

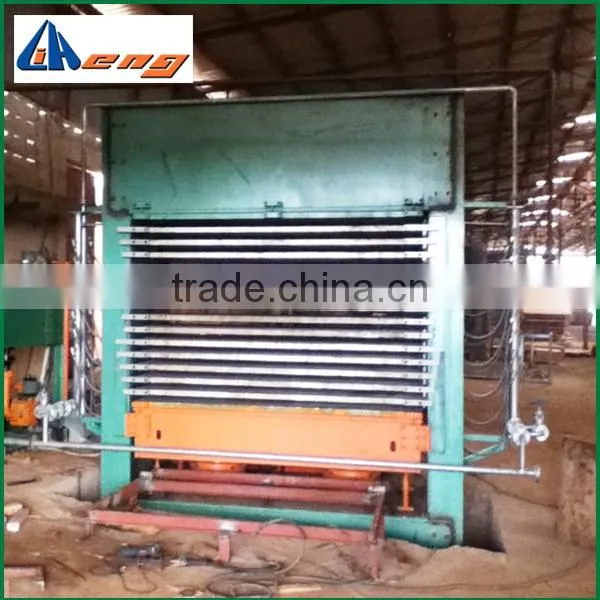

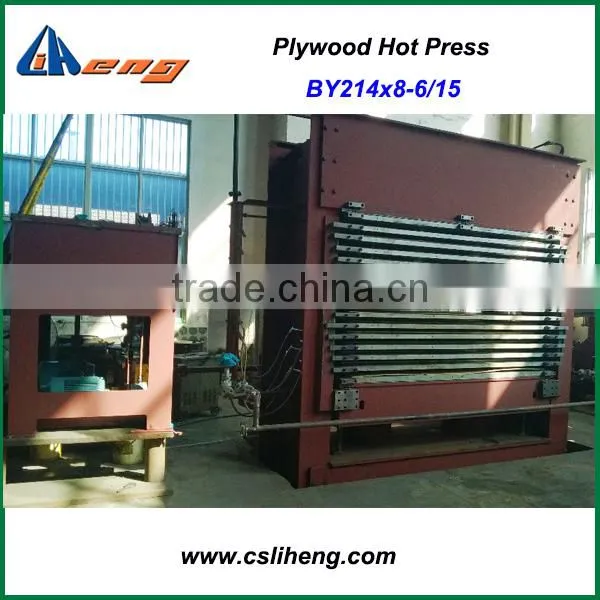

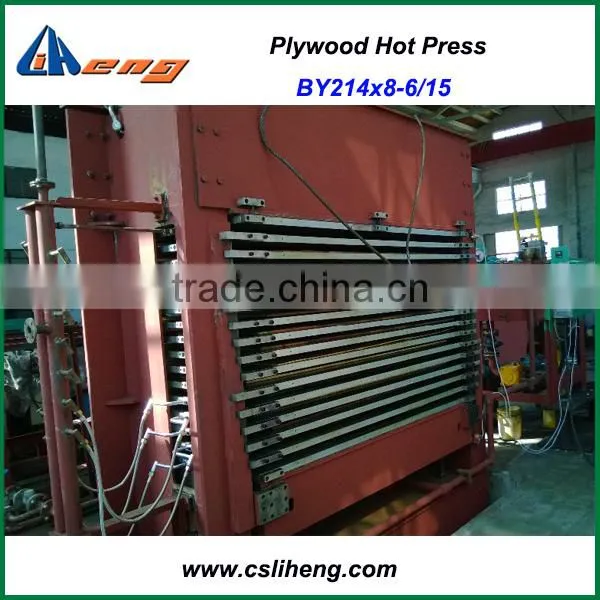

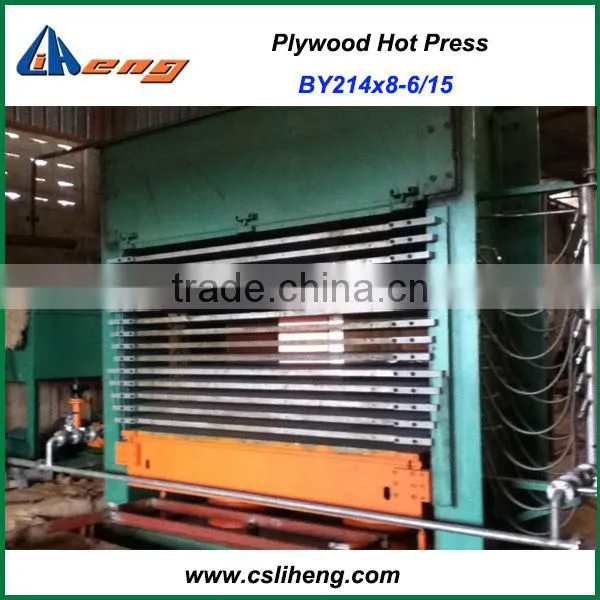

More pictures of Plywood Hot Press Machine
Packing & Shipping of Plywood Hot Press Machine;
1 Packing: Dismounted for Container loading, parts with plywood box, parts with pallet;
2. Shipment: By sea (1*40GP+1*20GP)
Our Service:
1. We supplying high quality plywood hot press machine
2. Engineer overseas service is available on requirements;
3. Steady spart parts supplying in long term;
4. We can also supply other related equipment for plywood production, give best solutions for plywood manufacturing;
5. We can also being your purchasing agent in China for other products;
About Changshu Xingliheng Wood Machienry Co.,Ltd
Changshu Xingliheng Wood Machinery Co.,Ltd locats in beautiful Changshu City, Jiangsu Province, only 1 hour from Shanghai City. Very Good Communications.
Changshu Xingliheng Wood Machinery Co.,ltd is a profesisonal manufacturer for plywood machine, has a history about 20years. With continuous improving of the production technology, Xingliheng has shipped high quality plywood machine to all over the world and gain Good reputations.
Welcome all friend visit us for plywood machine, plywood hot press machine
