Silica gel ESD Wrist Strap
- 1000 Piece / Pieces per Month
- Shenzhen
- Credit Card
- FK-ETD34 clamp, ETD34 transformer clamp, interlocking style, made of SUS301 stainless steel, with good elasticity, easy assembly of the product, and stable fastening force.
- Production of high and low frequency transformers, power transformers, choke coils, inductor coils, and current transformers. Design and produce according to customer drawings or samples. Fast delivery time.
- Production of high and low frequency transformers, power transformers, choke coils, inductor coils, and current transformers. Design and produce according to customer drawings or samples. Fast delivery time.
- EP7-2SEC-6P SMD/SMT transformer bobbins (3+3P),EP7-2S transformer Accessories bobbins,PM9630 material, with good high temperature resistance.
- EP13-2SEC-10P SMD/SMT transformer bobbins (5+5P),EP13-2S transformer Accessories bobbins,PM9820 material, with good high temperature resistance.
- Metal Stamping Dies, Progressive Die, Automotive Stamping Parts, Copper Stamping Parts,Fast delivery
Product Details
Place of Origin: | Guangdong, China | Brand Name: | Purestat | Model Number: | WS-001-1008 |
Product Description
Specifications
1. Material: PU, Copper, Silica Gel2. Feature: Good Static Dissipative Ability
3. Strengths: Easily adjustable
ESD Wrist Straps, also known as Antistatic Wrist Straps, are used to prevent electrostatic discharge (ESD) by safely grounding a person working with electronic equipments or at an electronic assembly facility. They are usually used in conjunction with an ESD mat on the workbench, or a special static-dissipating plastic laminate on the workbench surface.
Prodauct description:

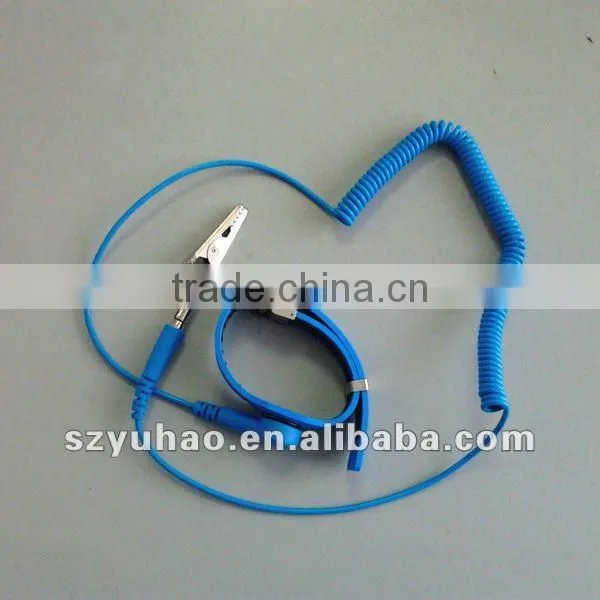

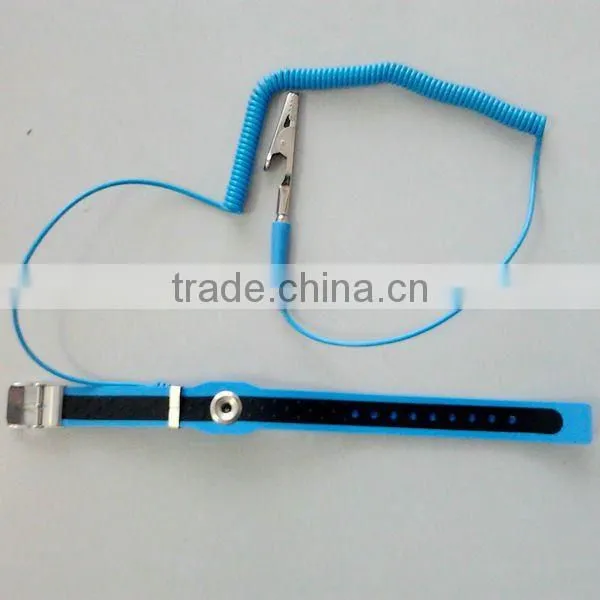

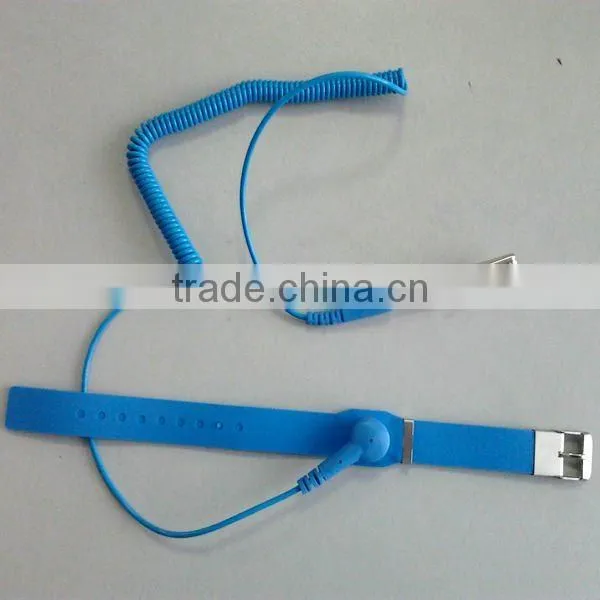

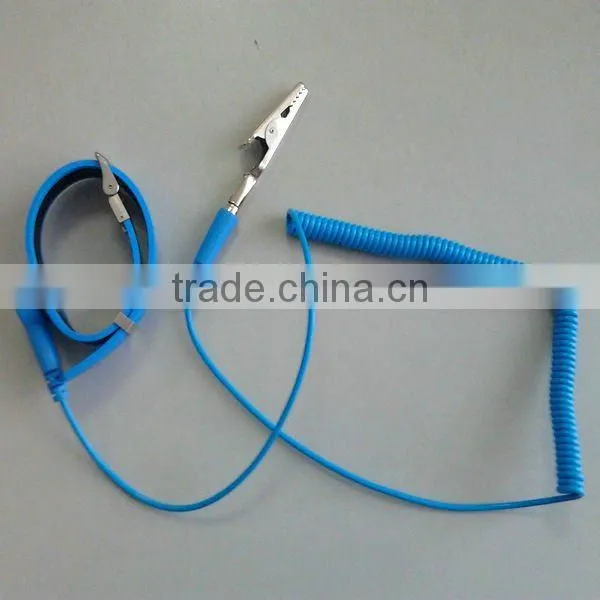

Silica Gel Wrist Strap is composed of silica gel wrist loop and grounding wire, the gel wrist loop contact with skin directly, sand form an anti-static channel together with hardware plate and dual coil core buckle connection, this channel
transfer away static from skin.
Coil core is made of circling wire, space minimum occupied, and has good retractility. Every ground coil core has safety 1MΩ resistance, it protects operators safety as well as current-sensing devices.
Main material:
1. Plastic piece material: ABS (sky-blue)
2. Catapult wire material: PU (sky-blue))
3. Catapult wire core: 7 root copper-foil silk
4. Fastener material: Cu (nickel-plate)
5. Conduction strap material: Silica Gel
6. Four petal banana pin: High quality beryllium-copper
General Parameters:
1. Discharge period: <0.1S (1000V~100V)
2. Buckle pulling-out force: F>0.45Kg (1Pound), F<2.3Kg (5Pounds)
3. Elongation of coil wire: can elongate at 80% of its total length
4. Wrist band inner side surface resistance: ≤1KΩ
5. Dual coil core safety resistance: 1MΩ±5%
6. Dual coil core bending times: 2003320 times
7. Dual coil core hanging force: 13.61 Kg(30Pound)
8. Plug life span: ≥10000 times
9. Plug pulling-out force: F≥454Kg (11Pound)
10. The diameter of Snap is 10mm, the cord length is 8 inch
Usage Instruction:

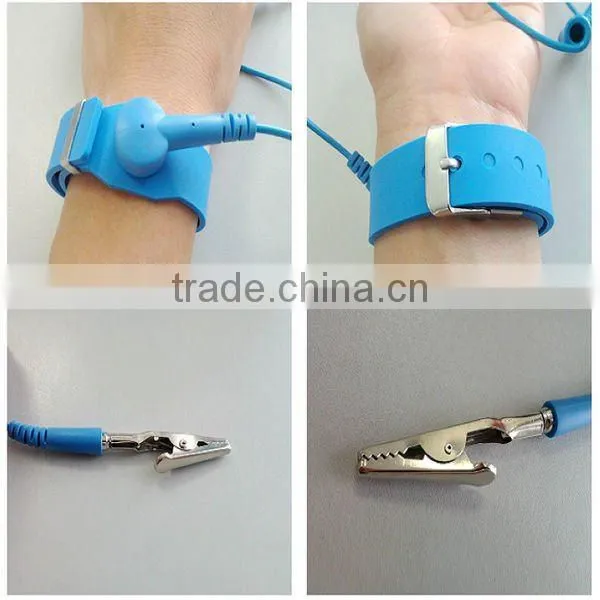

1. Place the wristband of the anti-static wrist strap around your bare wrist.
2. Secure the wristband so that the metal plate on the inside of the band is firmly pressed against the underside of your arm. The metal plate should have as much contact with your skin as possible, so place it in the spot where you have the least amount of hair.
3. Connect the strap to the wristband. The strap and wristband usually connect via a simple snap mechanism.
4. Clip the alligator clip on the end of the strap onto an anti-static mat or any bare metal surface that is touching the ground.
