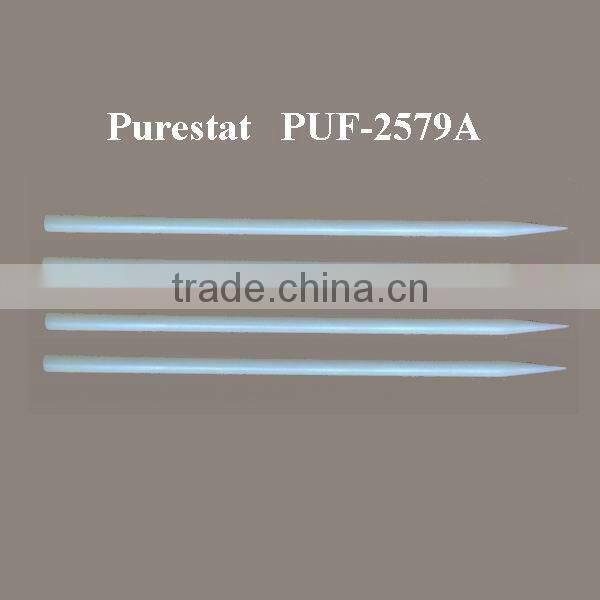

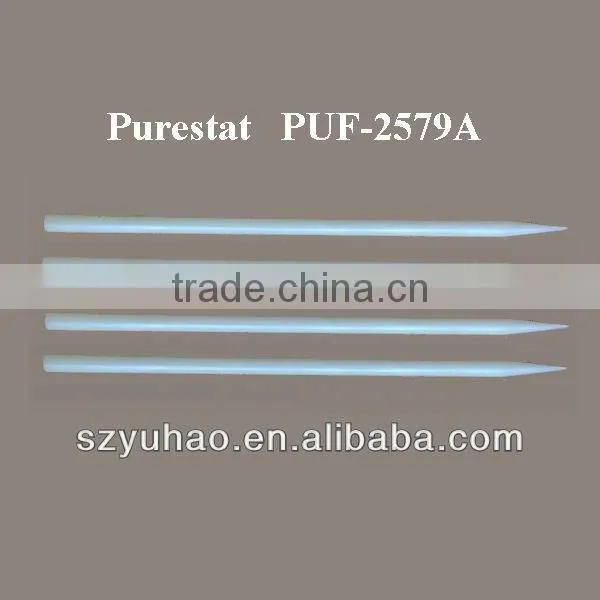

ESD Swab stick
- 50000 Piece / Pieces per Month
- Shenzhen
- Credit Card
- Metal Stamping Dies, Progressive Die, Automotive Stamping Parts, Copper Stamping Parts,Fast delivery
- Pneumatic joint spring clip, gas pipeline joint switch clip, tracheal connector spring clip. SUS304 stainless steel material, durable and long-lasting.
- Component sealed casing, motor stretched casing. stainless steel stretching parts, electronic component shielding cover, sensor stretching shell.
- Potentiometer housing stretching parts, stainless steel stretching parts, electronic component shielding cover, sensor stretching shell.
- American standard plug, charger plug., American standard 23.3 * 6.25 * 1.45mm plug, H65 brass material, nickel plated, without burrs.
- Pneumatic quick connector spring clip, quick connector switch clip, tracheal connector spring clip. SUS304 stainless steel material, durable and long-lasting.
Product Details
Place of Origin: | Guangdong, China | Brand Name: | Purestat | Model Number: | PUF-2579A |
Product Description
Specifications
1. foam and washed by EDI ultra-pure water2. Thermally bonded head
3. No silicon oil, Amide, DOP
4. Nonabrasive
Description:
The Purestat® Swab is an excellent antistatic swab for cleaning small areas. The swab is made of knitted polyester head and antistatic polypropylene handle, washed by EDI ultra-water and packed in class10~100 cleanroom.
The thermally sealed base provides additional contamination control.
Features:
EDI ultra-water laundered, knitted polyester tip over rigid core
Compact, ivory antistatic polypropylene handle
Thermally bonded head
Soft and nonabrasive
Excellent chemical resistance
Benefits:
Ultralow nonvolatile residue
Low particle and fiber generation
Good sorbency
No contaminating adhesives
Broad compatibility with cleaning and sampling solvents
No silicon oil, Amide, DOP
Low particle generation and less contamination ions
Applications:
Cleaning with solvents such as IPA
Applying lubricants and other liquids
Removing excess materials
Size:
head width | head thickness | head length | handle width | handle thinkness | handle length | total length | Packing |
0 mm | 0mm | 0mm | 2.4mm | 2.4 mm | 66.1mm | 66.1mm | 500 pcs/bag |
Parameters:
Nonvolatile residue test IPA extractant DI extractant | mg/swab ≤0.40 ≤0.15 | Ion Chloride Sulphate Total anion | μg/tip ≤0.9 ≤0.4 ≤1.3 |
LPC test(≥0.5μm) Particle counts/swab tip |
< 25,000 | No Silicone oil , DOP and Amide |
Electrostatic Discharge Characteristics:
Handle resistivity | 1×106 ≤Rs≤1×1010 |
Triboelectric charge voltage | less 10volts |
Decay time (1000v-50v) | less 2s |
Other ESD swabs:
Part No. | Head Width (mm) | Head Thickness (mm) | Head Length (mm) | Handle Width (mm) | Handle Thickness (mm) | Handle Length (mm) | Total Swab Length (mm) |
Packaging |
PUF-2580A | 3.50 | 3.3 | 12.6 | 3.00 | 3.00 | 69.0 | 71.0 | 100pcs/pack; 5packs/bag 50bags/carton |
PUF-2581A | 3.30 | 3.00 | 11.0 | 2.54 | 2.54 | 75.0 | 75.50 | 100pcs/pack; 5packs/bag 50bags/carton |
