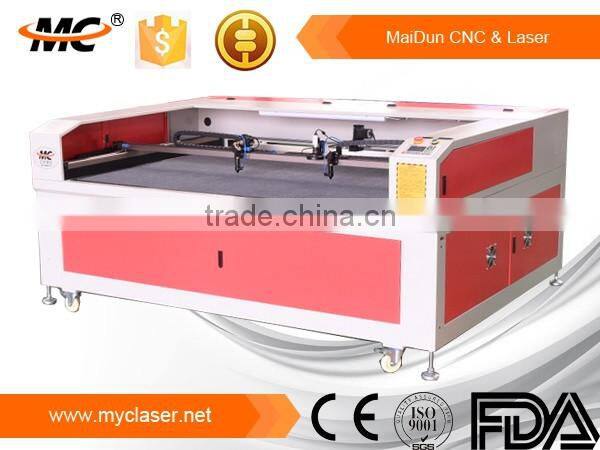

MC 1610 1810 1812 laser cutting engraving machine
- 2000 Set / Sets per Month
- Qingdao
- T/T L/C D/P D/A Credit Card PayPal
- DANAPR UV Laser Marking Machines F2010
- 1390 large laser engraving machine window cut paper PVC plating film laser cutting machine, cardboard paper engraving machine
- DANAPR UV Laser Marking Machines F2010 UV laser
- 3D Crystal Laser Engraving Machine
- DANAPR UV Laser Marking Machines F2005 UV laser
- DANAPR UV Laser Marking Machines
Product Details
Condition: | New | Laser Type: | CO2 | Engraving Area: | 1300*900mm |
Engraving Speed: | 60000mm/min | CNC or Not: | Yes | Cooling Mode: | Water Cooling |
Applicable Material: | Acrylic, Glass, Leather, MDF, Metal, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood | Graphic Format Supported: | AI, BMP, DST, DWG, DXF, DXP, LAS, PLT | Place of Origin: | Shandong, China |
Brand Name: | Maichuang | Model Number: | MC1610 | Certification: | CCC, CE, GS, ISO, SGS, UL |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
MC 1610 1810 1812 laser cutting engraving machine
Two heads can be engraved or cut off at the same time. Or one of two heads work alone. please attention that dual head to do same things is operated by control system. to some extend, high efficiencey in a short producing time.

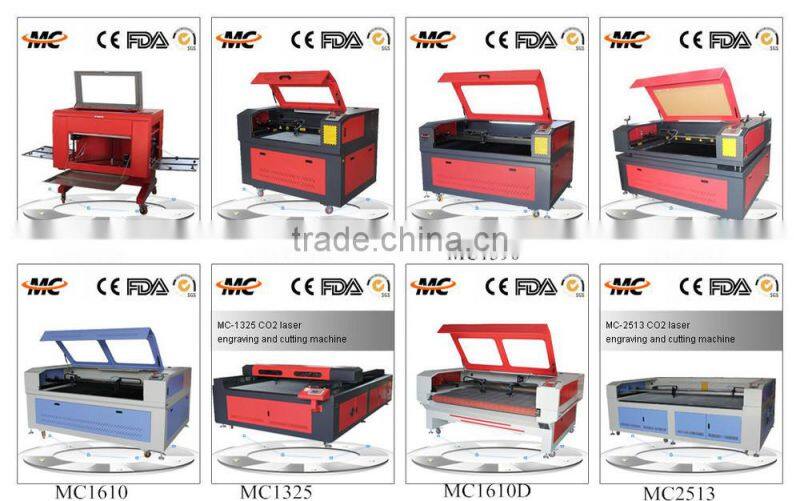

Based on various needs, the above models are for your choose.
Usually we name one machine according to max. working area. DO not worry to its length.
There is no limit to machine's length because of its open structure.
Features:
HIWIN square rail, square tube framework machine body, new high efficiency laser tube, red light positioning, advanced DSP control system, ensure high speed, high precision operation, and high work efficiency!
Technical Parameters:
Model | MC9060 | MC1390 | Option |
Working Area | 900*600 | 1300*900mm | According to Demands |
Laser Power | 40w/50w/60w/80w/100w/130w//150w | ||
Laser Type | CO2 Sealed Laser Tube , 10.6μm | ||
Cooling Type | Water Cooling | ||
Engraving Speed | 0-60000mm/min | ||
Cutting Speed | 0-36000mm/min | ||
Laser Output Control | 0-100% Set by Software | ||
Min. Engraving Size | Chinese: 2.0mm*2.0mm, English Letter:1.0mm*1.0mm | ||
Highest Scanning Precision | 2500DPI | ||
Locating Accuracy | ≤+0.01mm | ||
Controlling Software | DSP Control System | ||
Graphic Format Supported | DST PLT BMP DXF DWG AI LAS,etc | ||
Compatible Software | CORELDRAW,PHOTOSHOP, AUTOCAD,TAJIMA,etc. | ||
Color Separation | Yes | ||
Drive System | High-precision 3-phase Stepper Motor | ||
Auxiliary Equipments | Exhaust Fan and Air Exhaust Pipe | ||
Power Supply | AC110V/220V+10%,50HZ/60HZ | ||
Working Environment | Temperature:0-45C,Humidity 5-95%(No Condensate Water) | ||

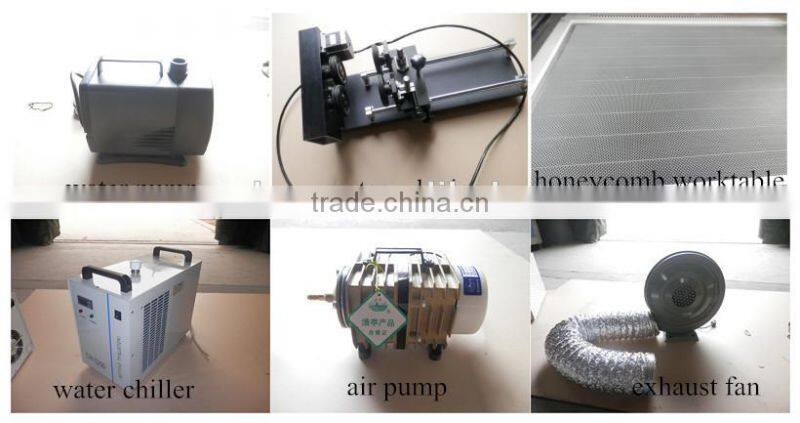

Option | Water chiller Red Dot Position System |
Applicable materials:
Acrylic , perspex, glass, wood, stone, marble, gravestone, rubber, leather,fabric, paper, cltoh, dual-colour boards.etc
Applicabe industries:
1. Stone Industry: marble, granite, white marble etc.
2.Artcrafts Industry: wood,bamboo, elephant's tusk,bone, leather, marble,sea shell etc.
3. Advertisement Industry: double color board,acrylic engraving and cutting,label engraving,crystal etc.
4. Model Industry: sand table constructtion model,plane model etc.
5. Packing Industry:rubber engraving,plastic,doubling plate,die board cutting etc.
6. leather and cloth processing Industry:compound leather,man-made leather,fabric,fur ,toy etc.
7. other industry : marble,granite,glass,crystal engraving,paper/greeting card cutting etc.
samples:

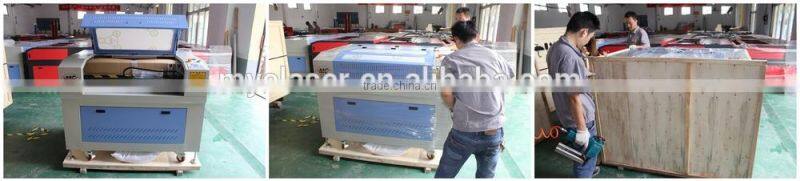

1. Packing wooden case is after fumigation treatment. Needn’t timber inspection,saving shipping time.
2.All the spare parts of the machine were covered by some soft materials,mainly
Avoiding all damages that could happen in the delivery process.Then we’ll covered plastic wrap out it tightly,make sure intact of the covered soft materials,also avoiding Waterproof and rust proof.
3.The outmost is wooden case with fixed formwork.
4.The bottom of the wooden case has firm iron jack,convenient to Handling and transport.
We offer
•Sea Transportation
•Land Transportation
•Air Transportation
1) All the machines will be full tested before shipment.
2) Laser tube 3 month working time.
3) The total machine guarantee for one year. Reci Laser tube and lens for 9 months.
4) 24 hours technical support-- email, telephone or video online.
5) User-friendly English manual for machine using and maintaining
Jinan Maidun CNC Equipment Co., Ltd., since 2002, specializing in producing CNC laser machinery, and has rich experience! Maidun CNC is comprehensive in the production, design, manufacturing, trade and service of CNC machine enterprises. Maidun CNC provide quality and efficient CNC machines worldwide. With strength solid financial and university staff, "Brand Maichuang" success in woodworking engraving machine, advertising engraving machine, stone engraving machine, metal engraving machine, laser engraving machine and laser cutting industry equipment, especially the development and expansion of production facilities occupy China's forefront.
Looking forward to your inquiry soon
