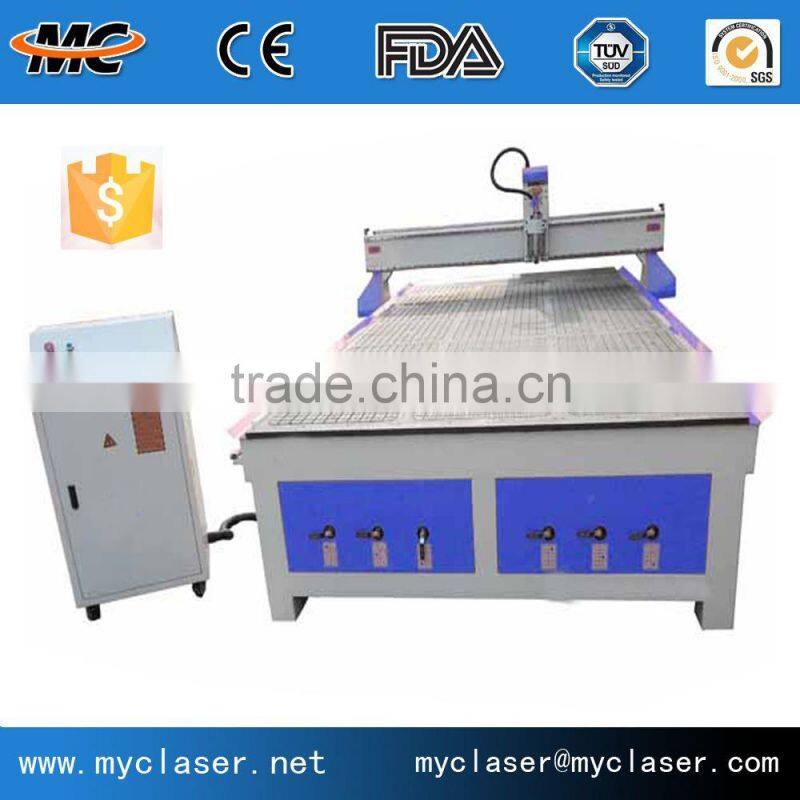

MC 2040 3d wood cnc router machine for aluminum furniture manufacturing machinery
1. Technical Parameter of wood cnc router machine
Model |
MYC 2040 |
Engraving area |
2000*4000*200MM |
Working Form |
Full-automatic |
Spindle Power |
3.0KW water cooling spindle/Italy HSD air cooling spindle |
Spindle Rotate(rpm) |
6000~24000 |
Motor Driver |
Stepper motor (Chinese servo motor or Yaskawa servo motor is optional) |
Tool Diameter(mm) |
Ø3.175,Ø4,Ø6, Ø12.7mm |
Machine Structure |
Industry square tube structure |
Transmission System |
Taiwan TBI ball screw or high accuracy gear rack |
X,Y,Z Rail |
Taiwan HIWIN square rail |
Mechanical Accuracy |
<0.03/300mm |
Engraving Speed(mm/min) |
8000~12000mm/min |
Feeding Speed |
manual |
Data Transmission |
USB or PC connect |
Support Format |
G code or HPGL |
Working Voltage |
AC220V/50Hz or 380V/50Hz |
Support Format |
G Code or HPGL |
Range of Application |
Woodworking relief engrave ,Cutting , Hollow |
Machine Net Weight |
1200Kg |
1.Application of wood cnc router machine
Wood cnc router is widely used in furniture industry, furniture decoration industry, woodworking decoration industry, musical instrument industry, wooden crafts industry, etc. And this machine is suitable for large area plate engraving, solid wood furniture engraving, solid wood art murals carving, MDF carving and cutting, etc.
---Woodworking Industry: stereo wave board processing, wooden door, various furniture product auxiliary processing.
---Advertising Industry: Advertising label, PVC plate, PCB board (drilling and engraving), Double color boards, logo production, acrylic cutting, plastic suction for making advertising dedication, word cutting, sign making, crystal word, LED display screen, kinds of doorplate, nameplate and so on.
---Mold Industry: Apply for carving various molds, wood pattern, Foam mould, and metal mold, etc.
---Musical instrument industry: instrument 3D surface engraving, shape cutting
---Wooden crafts.
---Exhibition industry: showcase, etc.
3.Features of wood cnc router machine

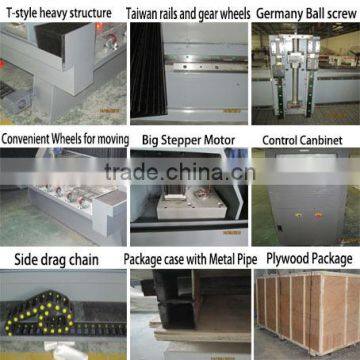

Standard accessories

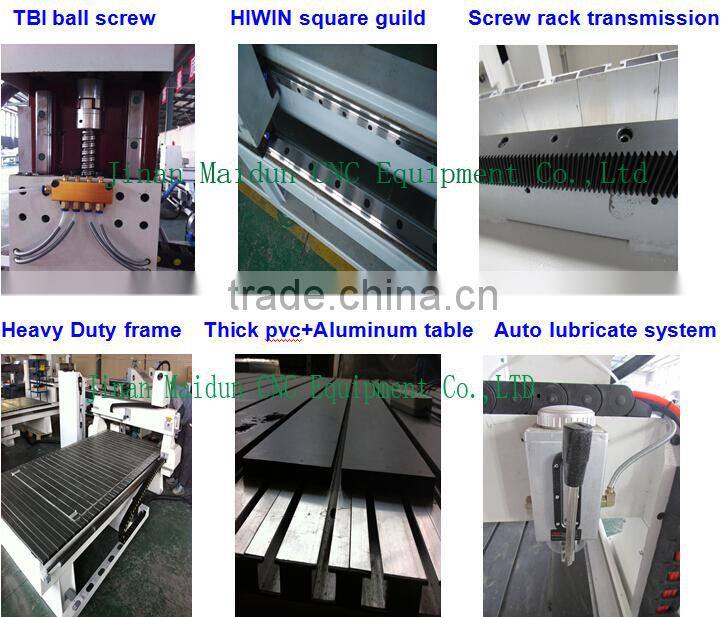

1).Taiwan TBI balls screws, HIWIN square guide rails, high precision, large load bearing and stable running.
2).Control system,we choose the NC-studio,it is easy to operate.
3).Gantry-traveling, sturdy, reliable and stable, non-deforming, high locating accuracy.
4).Whole Cast Lathe bed,strong and never out of shape,heavy table,can bear strong pressure.
5). Auto seeking original point system, a good way to improve the working efficiency

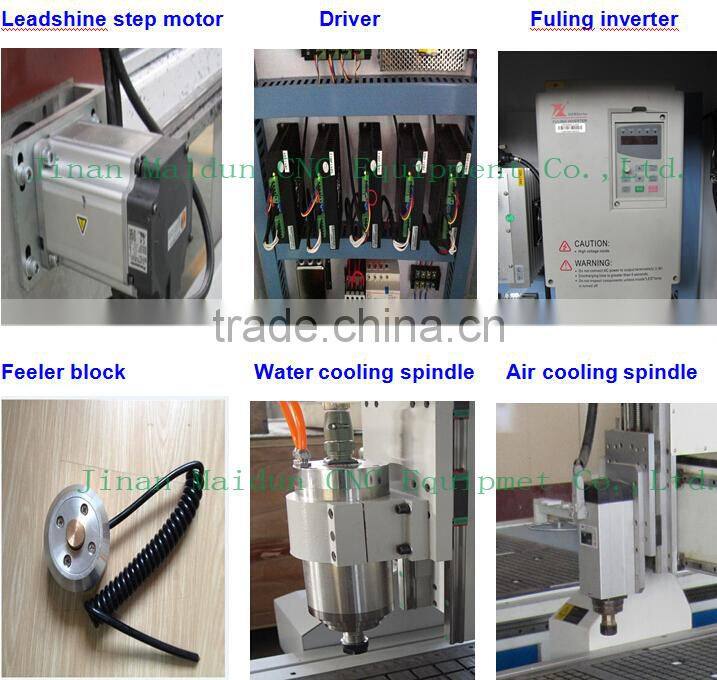

6).Leadshine 450A step motor and driver ,have the best high precision and big power.
7).Auto lubricate system.help the machine keep high precision and sensitivity.
8).Spindle,big power water cooling spindles, low noise ,strong cutting ability,to ensure the long time working .
9).FULING inverter, Adjustable V/F curve and simple vector control, 16 big microprocessor controlled PWM output, automatic.

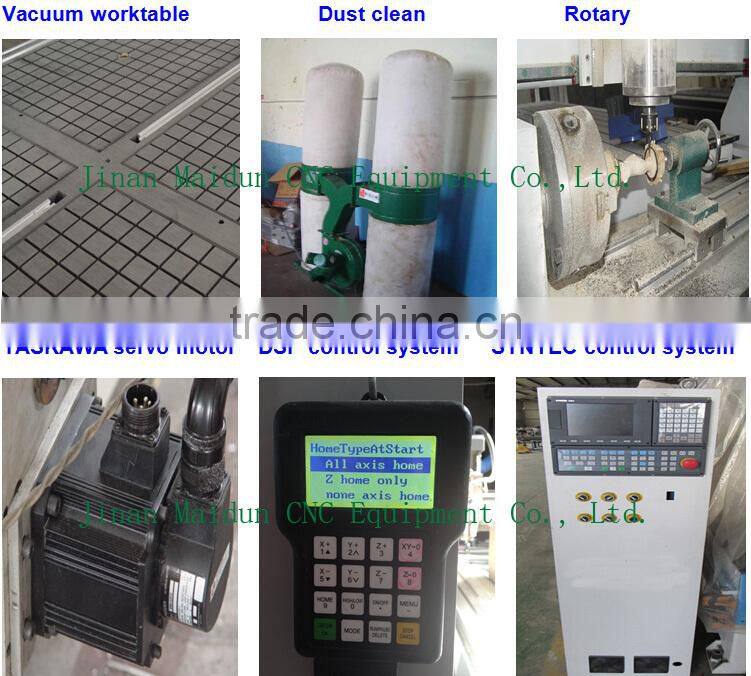

Optional accessories
1).Vacuum worktable,it can absorb in the materials,let it don’t move when working ,it is suitable to cut and engrave think materials.
2)Dust clean.can absorb the dust ,realize in automatic clean worktable, especially for cutting and engraving wood.
3)Rotary.be used to design the round materials.
4)Japanese YASKAWA servo motor.The best step motor for the machine, has the best quality and precision.
5)DSP control system,this control system has one control handle,can control the machine though the handle.
6).SYNTEC control system,can control the machine independently though the system.
me samples of wood cnc router machine
5.Packing and shipment
Packing wooden case is after fumigation treatment. Needn’t timber inspection,saving shipping time.
We offer
•Sea Transportation
•Land Transportation
•Air Transportation
6.warranty and service
1) The quality warranty period is 12 months which counted from the day that the shipping commodity arrived at the port of destination, excluding the physical damage, We will provide you with the fittings for free during the guarantee period. But please kindly note that all users are kindly required to return us the damaged fittings by courier with your charge before we send back the alternative fitting parts. After warranty period, the fittings which you need repaired or changed should be in charge by you, and it will be reasonable charged.
2) Since it is difficult for our engineer to maintain the machine by face to face, we will create a plenty of online-supports. That is to say, we will give you technical supports by email, MSN/Skype, camera, video, telephone and fax when user meets some problems on installing, operating, adjusting, maintaining, and so on.
3) When you meet some problems with installing, using or adjusting, but our online-support can not solve it, we can offer Door to Door service. If you need our engineer(s) to assemble or maintain or adjust the machine in your area, you would like to be required to assist us to go through the visa formality, traveling expenses prepaid and accommodation arrangement during the business trip and the service period before they dispatched. And please kindly arrange the translating person for the service engineer during their service period. Otherwise, you also can arrange your engineer to come to visit our factory to get a long-term free technical training.
7.Company information

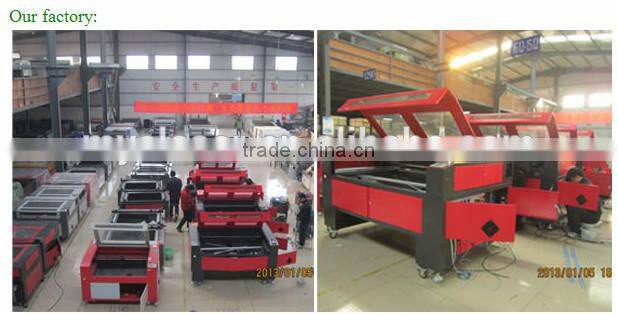

Jinan Maidun CNC Equipment Co., Ltd., since 2002, specializing in producing CNC laser machinery, and has rich experience! Maidun CNC is comprehensive in the production, design, manufacturing, trade and service of CNC machine enterprises. Maidun CNC provide quality and efficient CNC machines worldwide. With strength solid financial and university staff, "Brand Maidun " success in woodworking engraving machine, advertising engraving machine, stone engraving machine, metal engraving machine, laser engraving machine and laser cutting industry equipment, especially the development and expansion of production facilities occupy China's forefront.
