Specifications
cnc machinist for woodworkingChina furniture cnc router with CE
cnc machinist for woodworking door China furniture cnc router with CE
1.This machine is specially for 4D engraving, the spindle(A axis) can rotate +/- 90 degree, can make multi-kinds of surface which we can design with Software.
2.With Syntec EZ-4ME control system, YASKAWA servo motors, HSD air cooling spindle, Delta inverter ,Becker vacuum pump all components are from global leaders.
3.With this machine, you can make different surface carving, arc-surface milling, bend surface machining for 4D jobs, like special shaped arts, bended doors or cabinets.
4.With hard steel structure, it can work on MDF, Acrylic, wood, and some soft metal, cutting and engraving on Rosewood for furniture, indoor decoration.
Stereo wave board processing, cupboard door, craft wood door, wenqi door, screen, process window home furniture product milling form sculpture. Mainly for the production of cupboard door, real wooed, the furniture and so on, also can be used in the production of MDF cutting.
| model | XJ1325 4 axis cnc milling machine |
| X,Y,Z working area | 1300x2500x400x180degree |
| table size | 1530x2940mm |
| XYZ traveling positioning accuracy | ±0.03/300min |
| XYZ repositioning accuracy | ±0.03/300mm |
| table surface | vacuum and T-slot combined |

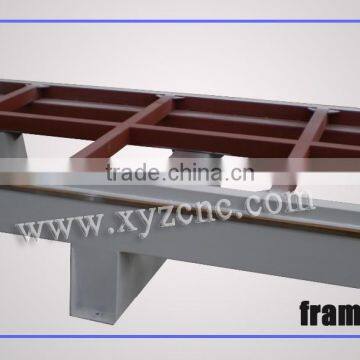

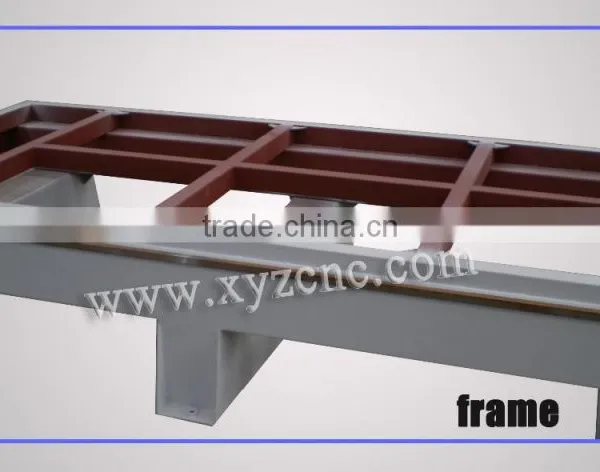

| frame | big steel tube structure |
| XY structure | rack and pinion drive,hiwin rail linear bearing |

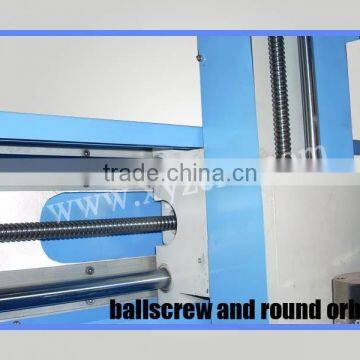

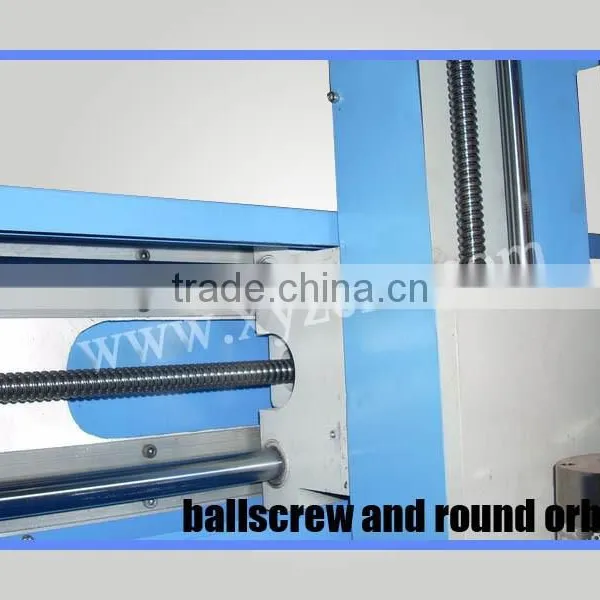

| z structure | hiwin rail linear bearing and ball screw |
| max.power consumption | withour spindle 4.2kw |
| max rapid travel rate | 30000mm/min |
| ing speed | 20000mm/min |
| spindle power | 3.0/4.5.6/7kw |
| spindle speed | 0-18000rpm |
| drive motors | YASKAWA servo motors |
| working voltage | AC380V 3PH |
| Command language | G code |
| operating system | syntec control system |
| computer interface | ethernet |
| flash memory | 256M |
| XY resolution | 0.03/300mm |
| software compatibility | type 3 software artcam option |
| running environment temperature | 0 degree-45 degree |
| relative humidity | 30%-75% |
| packing size | 3300x2200x2200mm |
| N.W | 1650KG |
| G.W | 2000KG |
| Guarantee | 1 year from the date of commission |
| optional parts |
dust collector/ dest hoods for three axis Vacuum pump Rotary system Mist-cooling system YASKAWA / Panasonic Servo motors |
