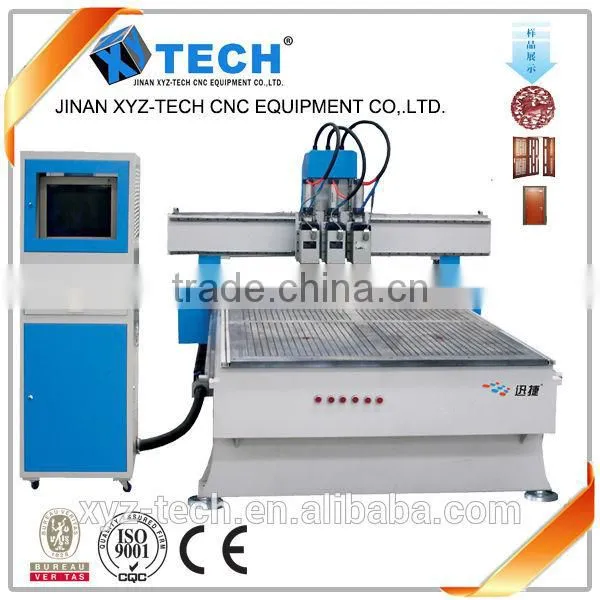

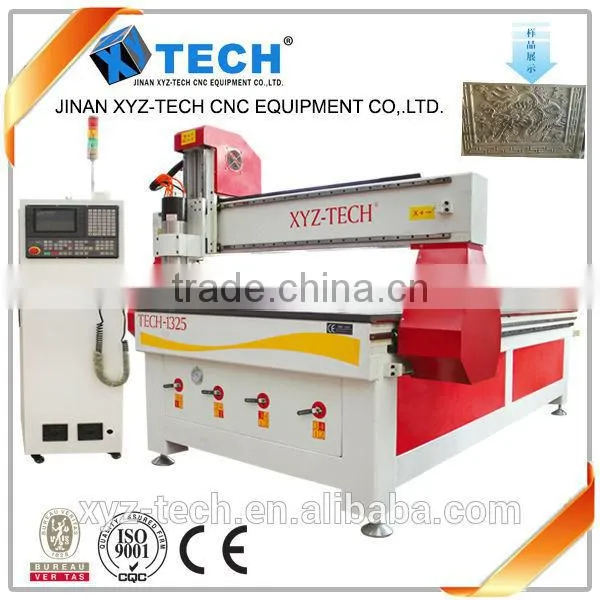

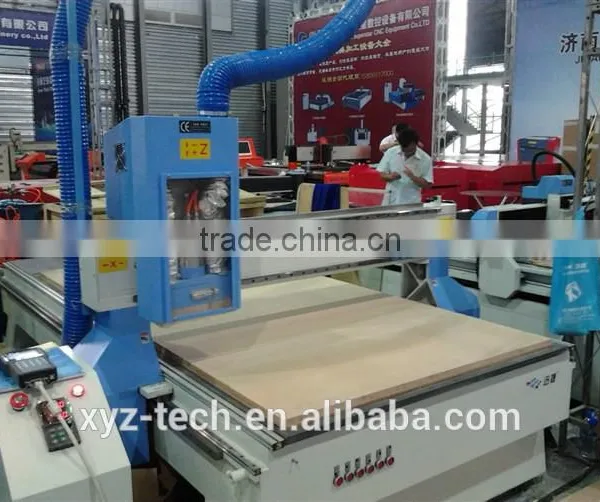

Low price 5 axis sculpture 1325 wood cnc router carving machine
Jinan qingshan equipment co.,ltd are manufacturer andspecialized in cnc router ,laser engraving and cutting machine, plasma cutting machine and cutter plotter,
with 16 years production and sales experience in this field and 8 year export and service experience for overseas’ buyers.
1.Technical parameter
Model | XJ1325 | XJ1218 |
Working range | 1300*2500*200mm | 1200*1800*200mm |
Reposition accuracy | 0.02mm/300mm | |
Working speed | 25m/min | |
Repeatablity | 0.0254mm | |
Spindle | 3kw/4.5kw Invert-driven spindle motor cooled by water (or air ) | |
Rotate speed | 24000rpm/min | |
Working voltage | 3-phase stepping motors or 110v/220v/380v 50Hz/60Hz | |
Cutting tool | Diameter 3.175, 6, 12.7mm | |
Command | G-code*mmg*plt.*u00 | |
Vacuum | 7.5kw/5.5kw vacuum pump | |
Working mode | AC stepper motor and driver | |
Control system | DSP(128MB) or PC/MC control system | |
Drive machine | Gear-wheel on x.y.z axises | |
Interface | USB | |
Optional devices | Dust Collect XJ1325 cnc drilling machine cting System Vacuum Table with Air Pump (For XJ-1224,1325) Mist Sprayer and flume Rotary device with Dia80mm/100mm/200mm DSP System w/Portable Control Pad (128MB) | |

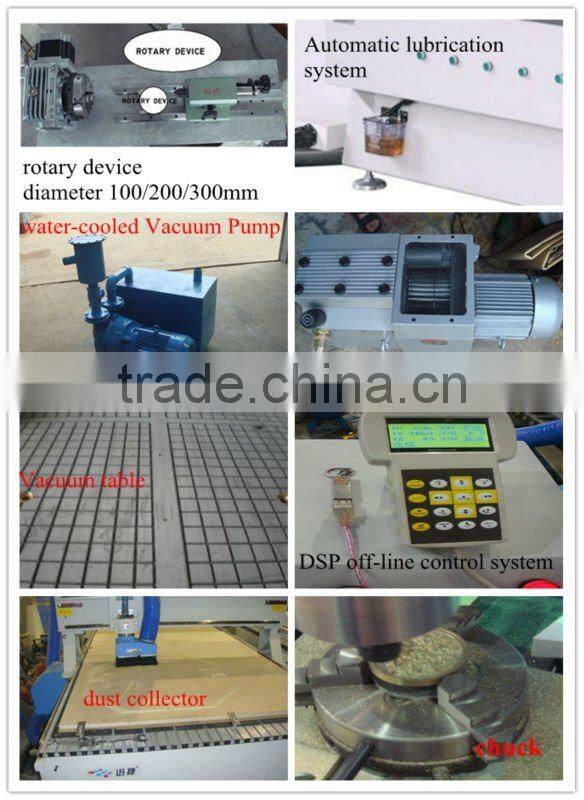

optional parts
Standard features:
1) Lather bed is cast by iron, strong and never out of shape. The unit adopts casting framework, X,Y axis adopts gear wheel and rack transmission,
Z axis adopt precise ball-screw transmission, imprted high precision square linear, ensuring the working speed and precision
2) cnc routers for wood 3d XJ1325 3d relief cnc router woodworking machine adopts high speed stepper motor and drivers,two motors for Y axis, max working speed is 25/min, with water cooling spindle highly upgrade the processing speed.
3) The machines Adopt advanced DSP digit-control system
4) Well capability: CAD/CAD designing sofeware (type 3/ ArtCAM/ Castmate/ Wentai etc)
5) Vacuum table with 6 vacuum zones, which can absorb different size materials.
6) The vacuum cleaning system offers a clean working environment
7)Restoring from power off, resume on break points

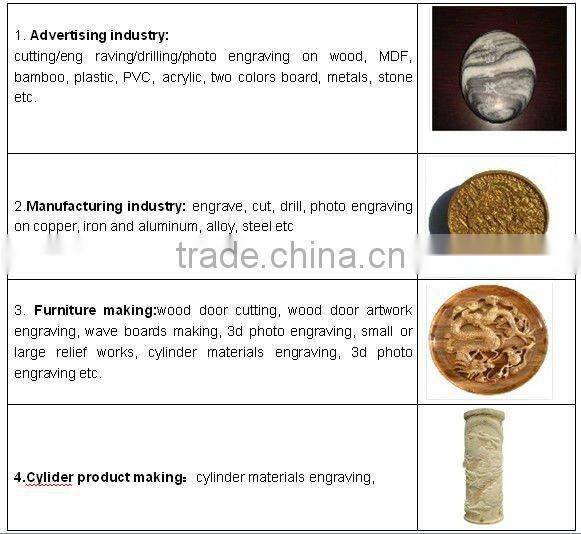

Applicable areas:
1.Furniture processing industry
2.Decoration
3.Wooden art crafts
4.Wood furniture engraving
Applicable materials:
Organid glass, PVC board, KT board, wooden board, stone board, metal board, acryl, Artificial synthetic board, man-made stone, MDF board.
certificate
Guarantee & Aftersales Service
Comprehensive guarantee for half year
24-hour technical support by email or calling.
User-friendly English manual for machine using and maintainin.

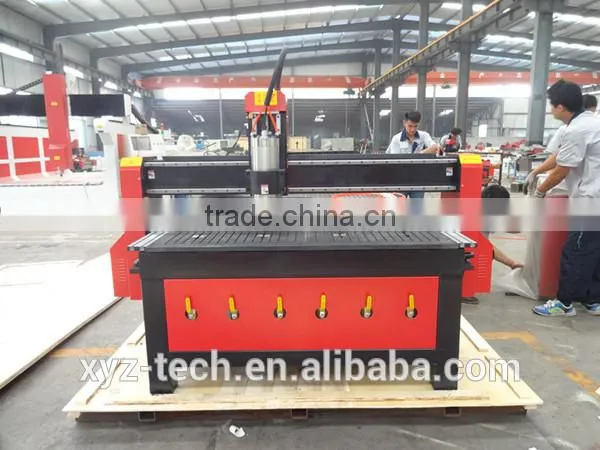

packing of cnc wood router stepping motor
Parameter of similar model
welcom your Consulting !!!
Model | XJ-1212 | XJ-1218 | XJ-1224 |
X-axis travel(mm) | 1200 | 1200 | 1200 |
Y-axis travel(mm) | 1800 | 2400 | 2400 |
Z-axis travel(mm) | 120 | 120 | 120 |
Motion positioning accuracy | ±0.02/300mm | ||
Repositioning accuracy | ±0.04mm | ||
Table structure | aluminum extruded sections +high density PVC | ||
Max motion Speed | 25,000mm/min | ||
Max working speed | 9,000mm/min | ||
Spindle power (kw) | 1.5Kw-4.5Kw for optional | ||
Spindle running speed (rpm) | 0-24000 | ||
Drive type | Stepper | ||
Command code | G-code | ||
Power | AC 220V/50HZ | ||
offer follow speed up your progress
1.What kind of material do you want to process?
2.What is the dimension of your working material?
Based on the above analysis, we will recommend the most suitable machine and best solution for you.
Package:
Free fumigatoin wooden case.
Remark:
We have detailed installation and operation CD as well as full set of User's Manual in English to teach you how to install and operate the machine.
