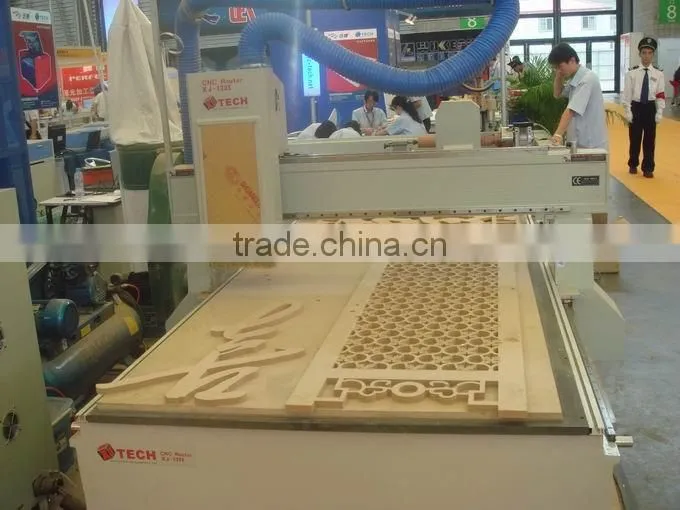

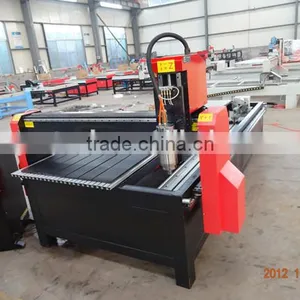

China 3d stepper motor milling 1325 cnc router wood carving rotary axis machine
We are manufacturer and specialized in cnc router ,laser engraving and cutting machine,metal&non-metal
laser cutting machine and plasma cutting machine ,with 16 years production and sales experience in
this field and 11 years export and service experinece for overseas’ buyers.
Description

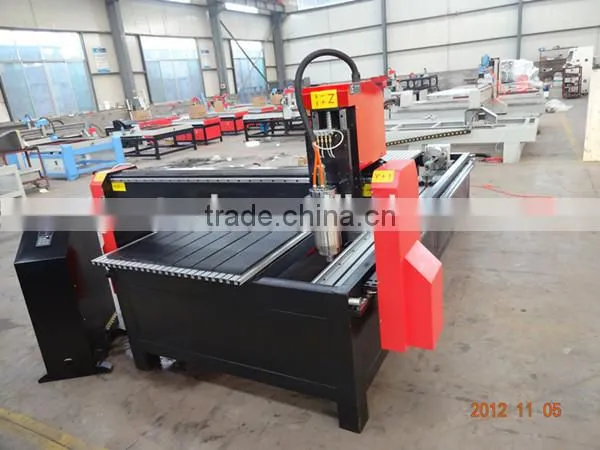

Model | XJ1325 woodworking cnc router |
Working Area | 1300*2500*200 mm |
Spindle Motor | 3KW GDZ Water-Cooling (4.5KW Optional) |
Rotating Speed of Spindle | 24,000RPM/min |
Working Mode | 450B Stepper motor (Leadshine and Japan Panasonic Servo Motor Option) |
Drive Mechanism | Importer rack gear |
Axis guide rail | XYZ axis HIWIN 20mm square linear way |
Motion Positioning Accuracy | ± 0.02/300mm |
Repositioning Accuracy | ± 0.025mm |
Max Motion Speed | 50,000mm/min |
Max Working Speed | 25,000mm/min |

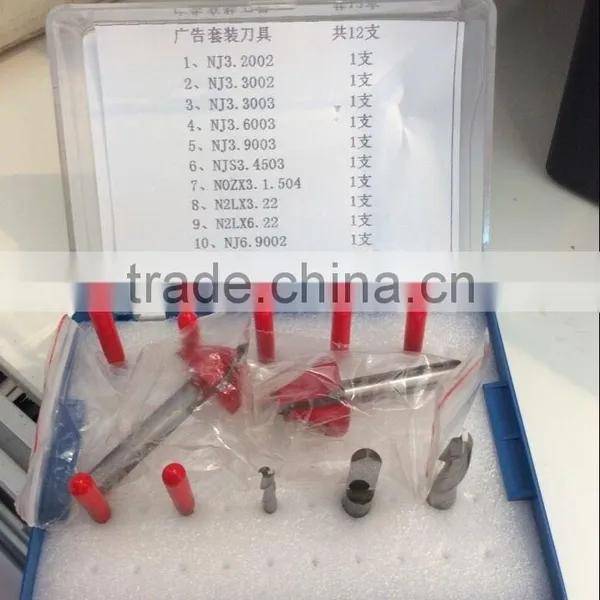

Engraving Tools | Ø3.175mm, Ø6mm,Ø12.70mm |
Dictate Formate | G code, *uoo, *mmg, *plt |
working Voltage | AC220V/380v 50Hz/60Hz |
Control System | NC Studio (DSP off-line Option) |
Interface | USB |
Flash Memory | 128M |
Software | Type3, Ucancam,Wentai, ArtCAM Software |
Packing | 3350x2050x1850mm |
Features
1.Constant power spindle motor makes the cutting intensity and more efficiency. The machine operates smooth
and accurately bearing heavy load and long working life.
2.Adopting easy operated DSP control system, convenient to operate.
3.Y axis equipped with double motors to keep stable moving.
4.Strong welded tubular steel frame that keeps lathe bed of wood working machine in shape.
5.Importer square liner rail with high accuracy and heavy burthen., so it could make the straight and smooth
curves.
6.Intelligent protecting system that protect working machine from damages resulted from false operation.
Having the power continued carving, power failure recovery features.
7.Well compatibility, compatible software CAD/CAM, such as type3, artcam, castmate, wentai CAD/CAM
design software, etc.
Application
The CNC woodworking machine can be used in the furniture processing industry, sign plate, acrylic cutting, plastic plate and even metal engraving like iron, aluminum, etc.

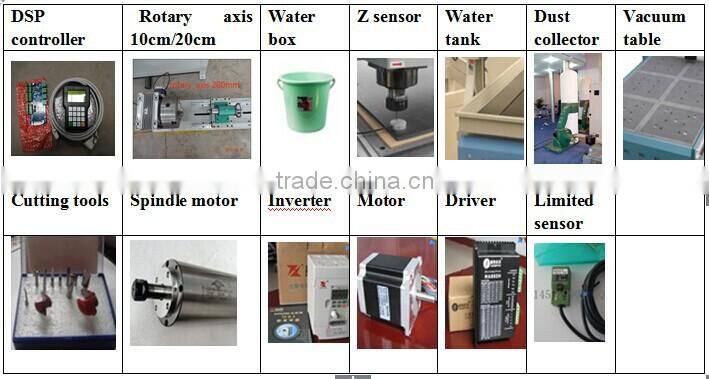

Machine parts

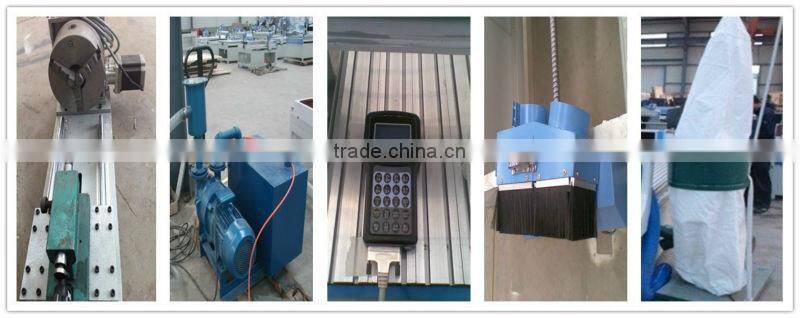

Optional parts (Rotary device,Dsp Controller,dust collector,Vacuum pump etc)
Optional parts
Sample picture:

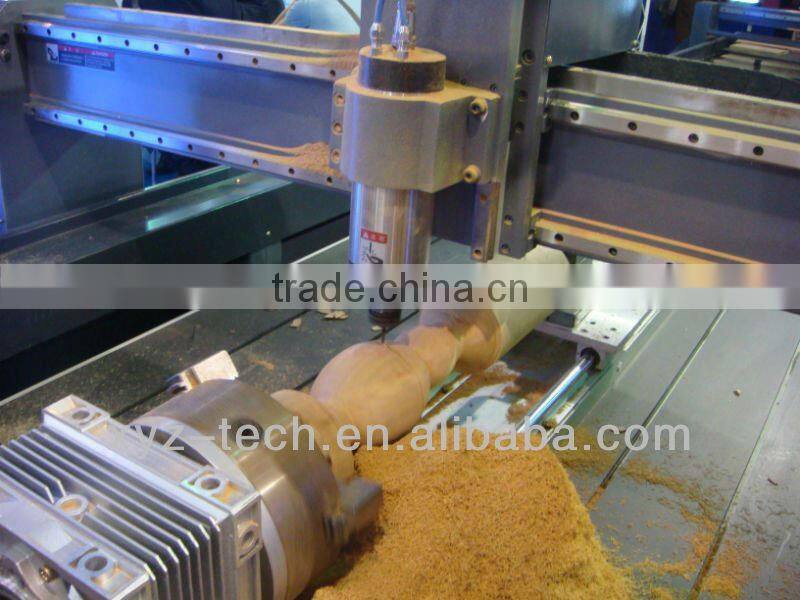

wood cutting CNC router machuine sample
wood carving CNC router machine sample
furniture making CNC router machine sample
Jinan XYZ-Tech CNC Equipment Company Ltd. is a China based CNC equipment manufacturer and supplier, founded in 1999.
Our primary products include a CNC router, CNC woodworking machine, laser engraving machine, laser cutting machine, plasma cutting machine and cutting plotter.
Our CNC routers and CNC woodworking machinery products are commonly used for processing advertising sign plate, wood workpieces, aluminum, and stone materials.
Our laser engravers are used in the advertisement, arts and crafts, leather, toy, garment, packaging and paper industries, and the plasma cutting equipment is used in industries of automobile and shipping, for motor covers, electronic components, and more.

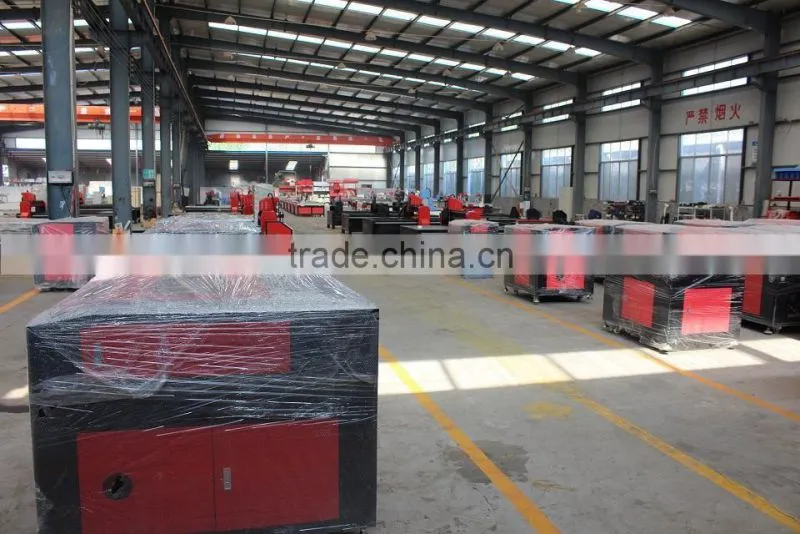

CNC Router factory pictures
CNC Router company certificate
Guarantee and services aftersales service:
1.guarantee for one year
2.24 hour technical support by email or calling
3.user friendly English manual and Video CD for machine using and maintaining
The CNC router is packed in plywood case.
1. I want a size that you don`t make as standard, is this possible?
They are firstly greased thoroughly and packaged in plywood case. Usually, we send machine by ship, sometimes, as customer's requirement, send by air or by train. When the goods arrive at your sea port or destination, you can pick up goods with the bill of lading we offered. Or we can arrange the cargo agent to send goods to your door.
Also, we recommend clients to prepare some spare parts. We can also send spare parts and wearing parts to clients who need them urgently.
Clients can also send defective parts to us for maintenance.
CNC Controller, the motion control software we use, is based on standard G-codes. The G-codes provide a source code comprised of inches and axis movements which can be edited and understood by others. Most CAM packages will generate G-codes from the drawings you create. What you need is to create program from CAM software.
For more information,please do not hesitate to contact us!
Welcome you come to visit us!
