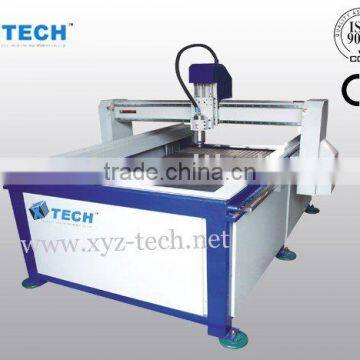

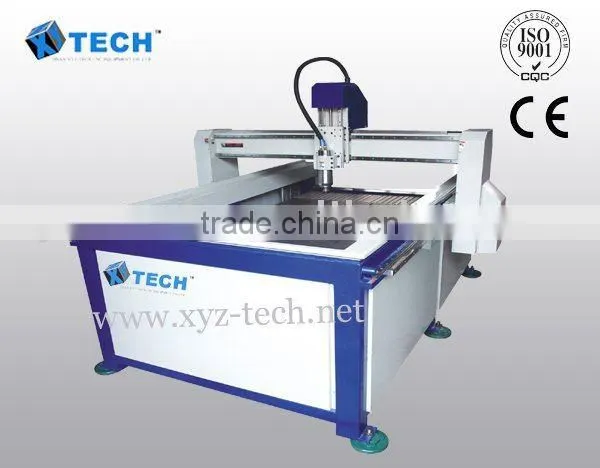

Cylinder Processing CNC Router With Up-down Working Table

Name: Cylinder Processing CNC Router With Up-down Working Table
Brand: XYZ-TECH
SKU: 144439006
Availability: InStock

US$ 100 - 8,000 MOQ: 1 Set

Key Specifications

Condition:

New

CNC or Not:

CNC

Place of Origin:

Shandong, China

Jinan XYZ-Tech CNC Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO

Delivery Detail:

Delivery time depends on order quantity.

Condition New

CNC or Not CNC

Place of Origin Shandong, China

Brand Name XYZ-TECH

Model Number xi-1218

Specifications

CNC Router
1. squqre linear guide way,rack and gear transi
2.applicable to process cylinder objects,other big thickness mater

cylinder processing cnc router ,CE certificated products

Applicable to process wooden products, cylinder objects, stone, PVC, and other bid thickness material.

Technical parameters:

Model	XJ-1218
X-Y-Z axis working area	1,2001,800150mm
Working table moving size	400mm
Resolutions	0.0254mm
X-Y movement	Germany imported Rack and pinion ,gear drive, linear guide way for X,Y,Z axis
Z movement	Germany imported Ball screw drive
Max. speed	60,000mm/min
Spindle	2.2kw,3Kw,4.5kw, water cooling (air-cooling for option), 24,000rpm
Drive motors	Stepper(optional for servo)
Working voltage	AC 380V/50-60Hz, 3- phase
Command code	G code
Computer interface	USB 2.0
Collet	3.175, 6mm, 12.7mm
Software	Type 3,Wentai, ArtCAM software
Controls	DSP system with special stand control panel (option: ncstudio Pc control)
Packing	1,400kgs
Optional device	Rotary device
	DSP system w/portable control pad(128MB)
	Vacuum holding, AC380V/50-60Hz,5.5Kw.3 phases
	Dust collector
	Oil lubrication system
