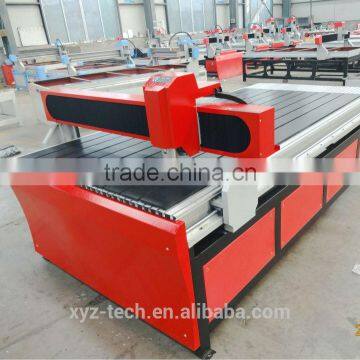

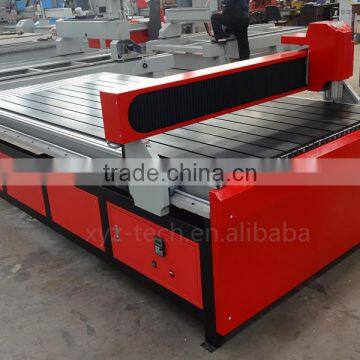

Ball Screw rack gear advertising CNC router machinery 1224 for sale
1. Features and specialties:
1) Driver device with high subdivision, running at high speed of 35,000mm/min, can realize the
synchronization of the curve line and straight line processing.
2) Configured with splendid control cabinet, operate easily.
3) Configured with 2.2kw -- 3kw inverter-driven constant power spindle motor cooled by water withthe high speed, good performance, large torque, high efficiency.
4) Adopt DSP controlling system, can work without computer and transmit files directly from USBflash disk with large capacity and large LCD display.
5) Own functions of restoring from power off and saving from break point, and function of automatictool sensor etc.
6) Support 9 coordinates postioning, user friendly designing.
7) Compatible with Type 3, ArtCAM, Pore,UG and other software of CAD/CAM.
2. Parameters
Model | XJ1224 |
Working Area | 1200*2400*100mm |
Structure,Table Material | Iron Casting |
Spindle Moto | 1.5KW Water-Cooling (2.2KW Option) |
Rotating Speed of Spindle | 24,000RPM |

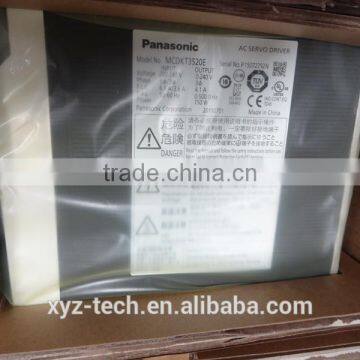

Working Mode | Stepper (Servo Motor Option) |
Drive Mechanism | Ballscrew for X,Y,Z Axis |

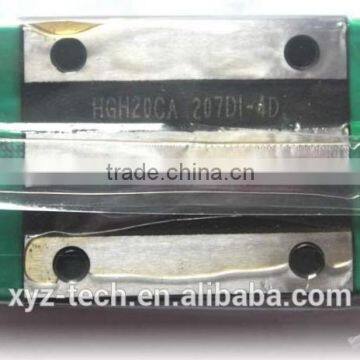

Linear Guide Rails | Round Orbits (Square Rails Option) from Taiwan |
Motion Positioning Accuracy | ± 0.02/300mm |
Repositioning Accuracy | ± 0.0254mm |
Max Motion Speed | 20,000mm/min |
Max Working Speed | 15,000mm/min |
Engraving Tools | Ø3.175mm, Ø6mm |
Dictate Formate | G code, *uoo, *mmg, *plt |
Operating Voltage | AC220V/50~60Hz |
Control System | NC Studio (DSP off-line Option) |
Interface | USB |
Flash Memory | 128M |
Software | Type3, Ucancam, ArtCAM Software |
Packing | 3.14*1.82*1.24M |
Net Weight | 660KGS |
Gross Weight | 760KGS |
:

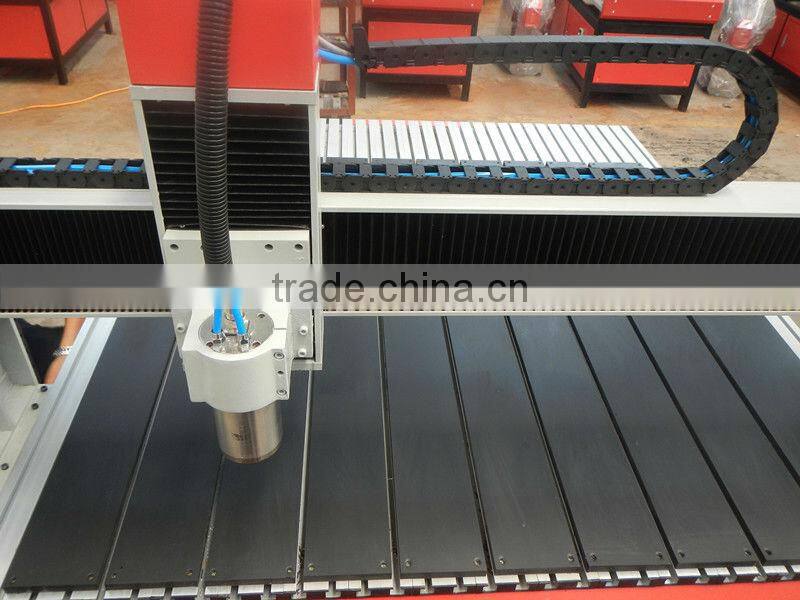

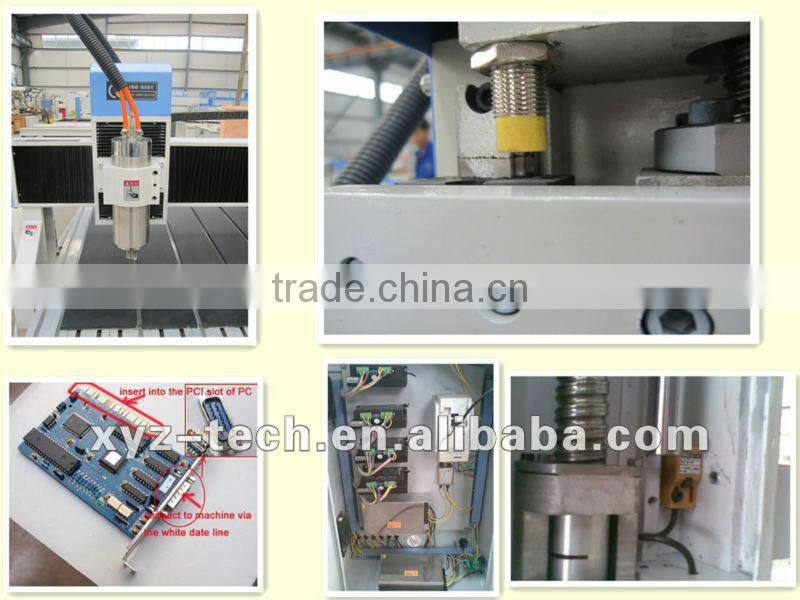

3. Product Details :
4.samples:
1.)Guarantee for one year
2.)24-hour technical support by email or calling
3.)User-friendly English manual for machine using and maintaining
1) This is the first time I use this kind of machine, is it easy operate?
There are english manual or guide video that show how to use machine.
If there is still have any question, we can talk from phone or skype.
2) If machine have any problem after I ordered it, how could I do?
Free parts send to you in machine warranty period if machine have any problem.
Free after-sales service life for machine, please feel free contact us if your machine have any problem. we will give you 24hours service from phone and skype.
3) MOQ ?
Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you.
To benefit from our company, contact us now.
welcome to Jinan XYZ-Tech CNC Equipment Company Ltd.
