3d Cnc Stone Sculpture Machine XJ1325 Stone Cnc Router Stone Engraving Cnc Router

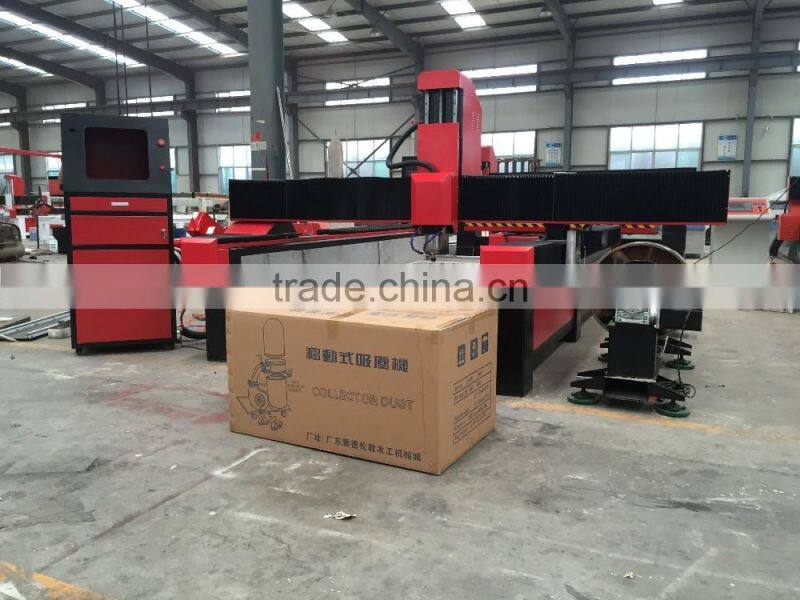

3d Cnc Stone Sculpture Machine XJ1325 Stone Cnc Router Stone Engraving Cnc Router photo-1

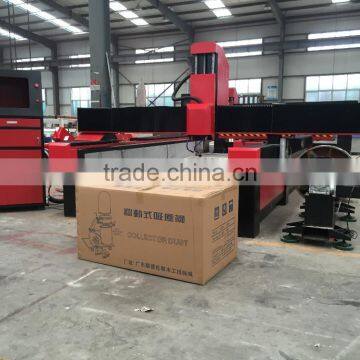

3d Cnc Stone Sculpture Machine XJ1325 Stone Cnc Router Stone Engraving Cnc Router photo-2
3d Cnc Stone Sculpture Machine XJ1325 Stone Cnc Router Stone Engraving Cnc Router photo-3
3d Cnc Stone Sculpture Machine XJ1325 Stone Cnc Router Stone Engraving Cnc Router photo-4

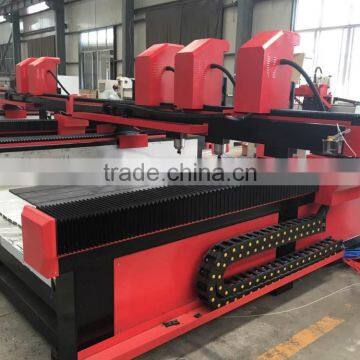

3d Cnc Stone Sculpture Machine XJ1325 Stone Cnc Router Stone Engraving Cnc Router photo-5
3d Cnc Stone Sculpture Machine XJ1325 Stone Cnc Router Stone Engraving Cnc Router photo-6
US$ 6,000 - 8,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Stone Engraving Machine
Use:
Marble
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Stone Engraving Machine
Use Marble
Production Capacity 100%
Place of Origin Shandong, China
Brand Name XYZ-TECH
Model Number XJ1325
Voltage 220V/380V
Power(W) 4.5KW, 4.5KW water cooling spindle
Dimension(L*W*H) 3.65*2.28*1.5m, 2.65*2.28*1.5m
Weight 1900
Certification CE ISO9001
Warranty 12 Months
After-sales Service Provided Engineers available to service machinery overseas

3d cnc stone sculpture machine XJ1325 stone cnc router stone engraving cnc router

3d cnc stone sculpture machine XJ1325 stone cnc router stone engraving cnc router3d cnc stone sculpture machine XJ1325 stone cnc router stone engraving cnc router









Product Description

1. Main Introduction of 3d cnc stone sculpture machine XJ1325 stone cnc router stone engraving cnc router :

1.Applicable:stone processing metal processing
2.Applicable material:microlite,natural granite,seeing stine,marble,bowlder,bluestone,rostone,glass,aluminum,iron,plastic and wood etc.

2. Top components of 3d cnc stone sculpture machine XJ1325 stone cnc router stone engraving cnc router :



1.water cooling spindle , big strength, long life, and low noise.

2.Popular NC studio controller, easy operation and convenient by PC computer.

3.4.5KW spindle heads, much bigger strength than one head, it’s suitable for wood doors, windows, stone, marble, granite, wood, metal.

4.HIWIN linear guide, imported from Taiwan. It’s high precision, long life and top pressure-tolerant performance.



3. Technical Parameter of 3d cnc stone sculpture machine XJ1325 stone cnc router stone engraving cnc router :



Number

Description

Parameter

1

X,Y,Z Working Area

1300mmx2500mmx300mm

2

Table Size

1450mm*2000mm

3

X,Y,Z Traveling Positioning Accuracy

±0.02/300

4

X,Y,Z Repositioning Accuracy

±0.0254mm

5

Table Surface

 T-slot Combined

6

Frame

Welded Structure

7

X, Y Structure

Rack and Pinion Drive, Hiwin Rail Linear Bearings

8

Z Structure

Hiwin Rail Linear Bearings and Ball Screw

9

Max. Power Consumption

3.0Kw (Without spindle)

10

Max. Rapid Travel Rate

42000mm/min

11

Max. Working Speed

30000mm/min

12

Spindle Power

4.5 KW water Cooling Spindles

13

Spindle Speed

0-24000RPM

14

Drive Motors

Sevor Motor

15

Working Voltage

AC380V/50/60Hz,3PH (Option: 220V))

16

Command Language

G Code

17

Operating System

Ncstudio System     (options: DSP/Mach3 PC Software)

18

Computer Interface

USB

19

Flash Memory

512M(U Disk)

20

Collet

ER32

21

X,Y Resolution

<0.03mm

22

Software Compatibility

JDPaint, Type3 Software (Option: Artcam software)

23

Running Environment  Temperature

0 - 45 Centigrade

24

Relative Humidity

30% - 75%

25

Packing Size

3750mmX2250mmX2100mm

26

N.W.

1700KG

27

G.W.

2100KG



4. Samples for Your Reference of 3d cnc stone sculpture machine XJ1325 stone cnc router stone engraving cnc router :

 3d cnc stone sculpture machine XJ1325 stone cnc router stone engraving cnc router

Packaging & Shipping







Our Services

1.We will provide the user a CD to study the machine installation and commissioning of English.

2.Our technicists can give user online guide.

3.The user can by call or email us any problems at any time.

4.One year warranty for machine maintenance, for equipment maintenance over the warranty period is clearly marked.

Company Information

Our factory:

We started to produce Mechanical and Laser Engraving Machine in 1994.

Nearly 20 years rich experience in producing saling and service ensures you high quality machine

and perfect service.

Our Export Percentage up to 81%~90%.

OEM Service Offered   Design Service Offered   Buyer Label Offered .









FAQ

1).How to get the most suitable machine and best price ?

Please tell the material you want to working on ?

How to working on it ? Engraving ? Cutting ? Or other ?

What’s the MAX size of these material ?( length ? Width ? Thickness ?)



2). Do you have the manual of machine ?

Yes,we have by English



3). If we donot know how to use the machine,can you teach us ?

Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And

if you are busy ,we will have the special engineer to your country,but you need to bear some fee,like

tickets and hotel and meal.



4). How about your after-sales service ?

we offer you 24 hours service by phone,skype or MSN.



5). How about your guarantee period ?

One year and during the time.

If you have  any questions ,we will solve it for free forever.
