Easily Operated XJ6090 advertising equipment for MDF /Wood /Sign-making /acrylic cnc engraving machine
This is the model, water cooling system, integral cast iron lathe bed, Round orbit and ball-screw transmission for x,y,z axis, more scientific to ensure ensure the parallelism ,verticality and concentricity and greatly increase the precision and speed of the engine bed.
Features:
* Integral cast-iron frame, embedded square linear, much more stable and solid structure.
* Rolling ball screw from Germany, two nut eliminating clearance, advanced fixing mode of three bearings.
* Configured 1.5kw inverter-driven spindle motor cooled by water
* Adopt the most advanced DSP controlling system
* Easy operation, sturdy, durable, reliable performance, good price
* Dust-proof ,water-proof , up-down working table ,rotary device ,servo system system are optional
Application field:

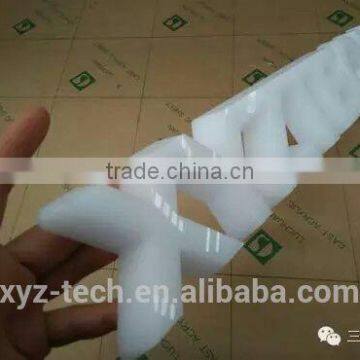

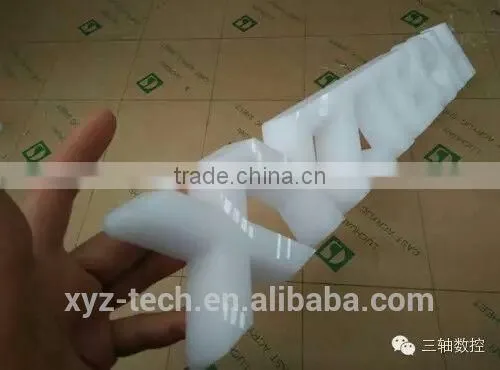

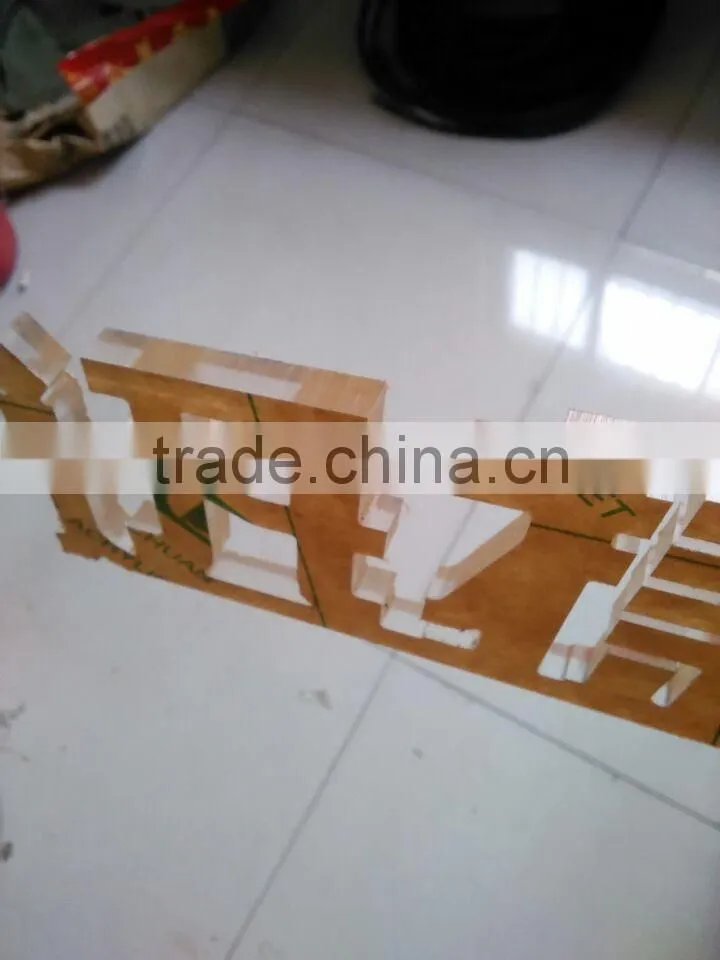

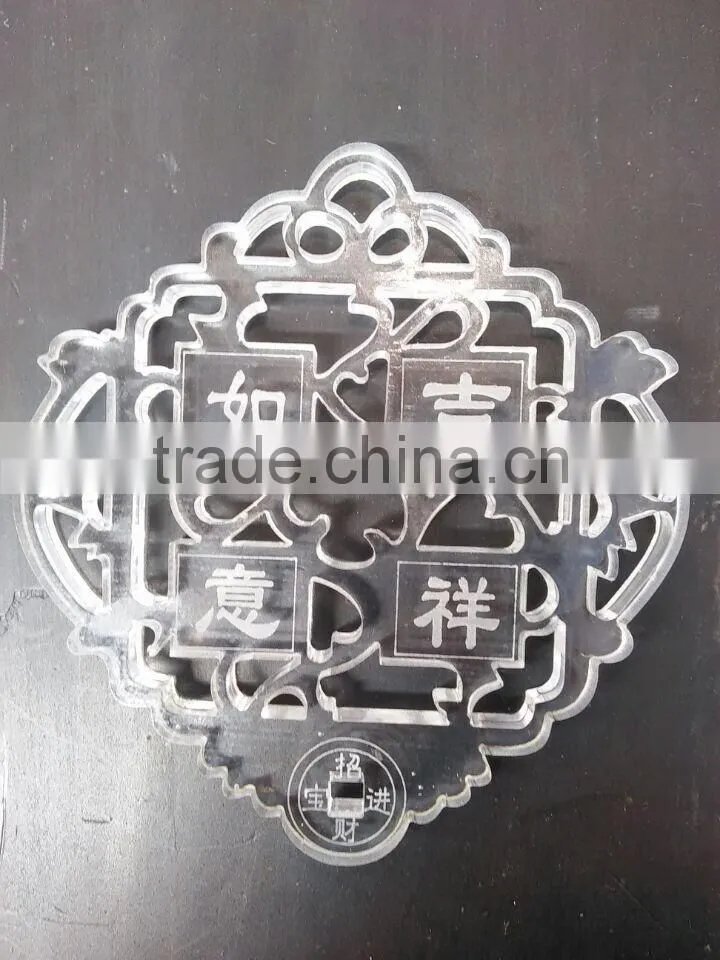

also for Sign board process, mould, bronzing ,badge, pattern mould, art carve, sign and label etc...
Model | XJ-3030 | XJ-3636 | XJ-6090 |
X-axis travel(mm) | 300mm | 360mm | 600mm |
Y-axis travel(mm) | 300mm | 360mm | 900mm |
Z-axis travel(mm) | 70mm | 80mm | 90mm |
Motion positioning accuracy | ±0.02/300mm | ||
Repositioning accuracy | ±0.04mm | ||
Mechanical Structure | Cast iron lathe bed | ||
Table Structure | Aluminum Section & high-density PVC | ||
Command accepted | G code,u00*.mmg*.plt | ||
Max motion speed | 25.000mm/min | ||
Max working speed | 9,000mm/min | ||
Spindle power (kw) | 1.5KW-ER11, Inverter-driven spindle motor cooled by water | ||
Operating System | NC-Studio PC Control Operating System Option: Mach3 PC Operating Control System DSP off-line Control System with USB interface, 128 M flash Memory | ||
Software | Type3 copy software with tutorial video for free Ucancam V9, ArtCAM software and so on | ||
Drive type | Stepper motor with Leadshine drive | ||
Drive mechanism | German Imported ballscrew for X,Y, Z -axis | ||
Z-high setting | Auto-Z Origin Tool High Sensor | ||
XYZ Guide Rail | XYZ Round Shaft for transmission as standard configuration Option: Square Linear Rail for Y, round Rail for X,Z | ||
Power | AC220/50HZ | ||
Accessories:
Spanner×1, Brush×1, water pump×1, Power cord×1, cutter×12, software×1, manual and maintain card×1
Packing: 1520×1230×1400mm
Gross weight: 270kgs
OPTIONAL:
* 2.2KW WATER-COOED SPINDLE MOTOR
* DSP OFF-LINE CONTROL(DSP MEMORY IS 128M)
* DUST COLLECTING SYSTEM

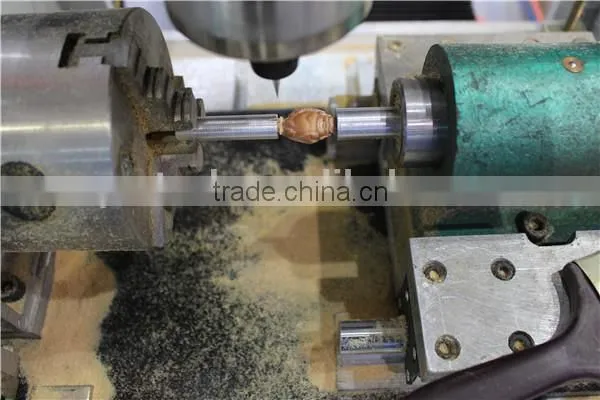

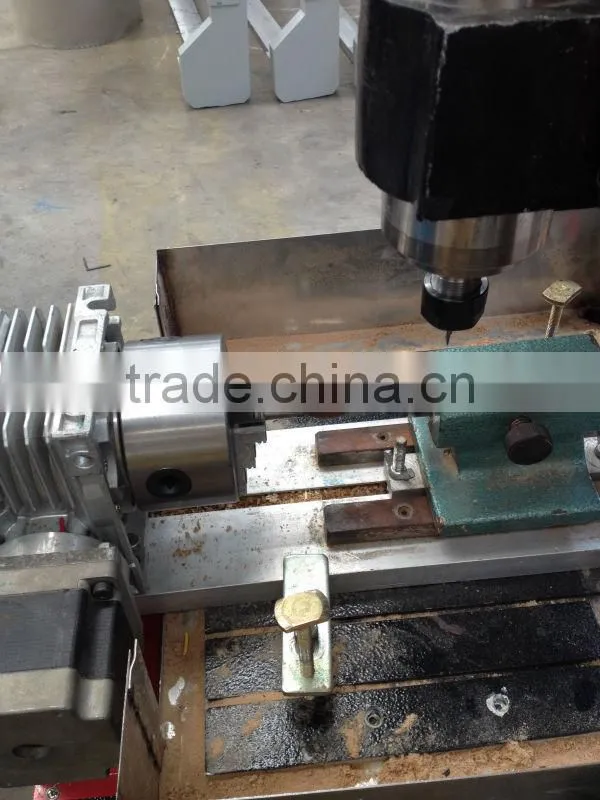

* ROTARY DEVICE 10/20cm
* MIST SPRAYER AND FLUME specially for stone or metal processing.
Desktop Style XJ6090 advertising equipment:

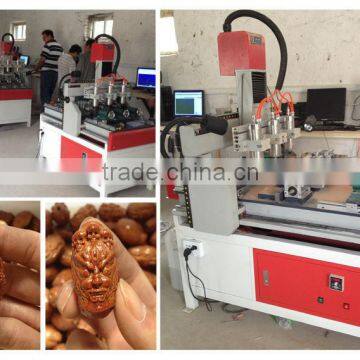

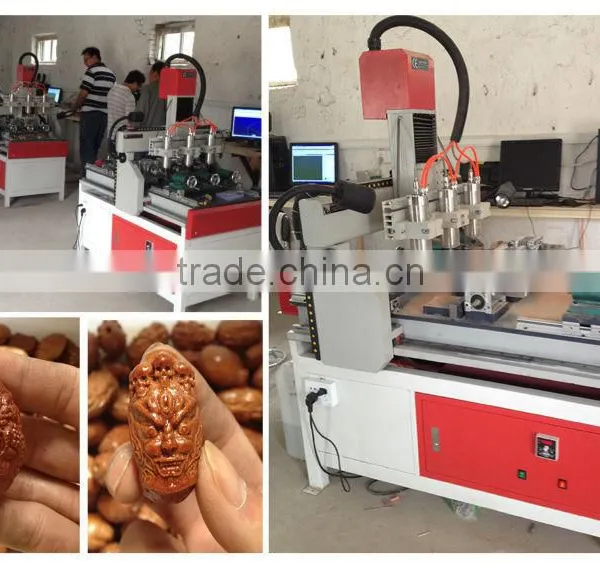

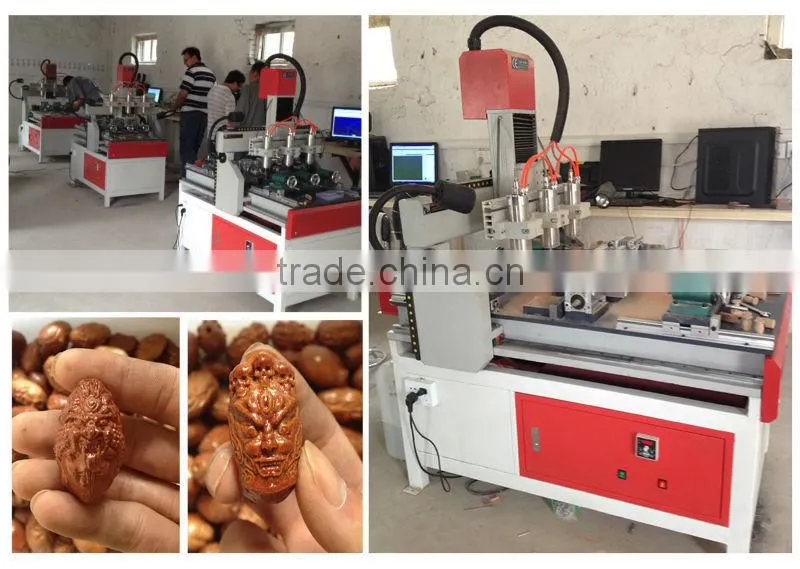

Our workshop:
According to your requirement,we will recommend the best suitable machine for you:
1.What is your Max.size of your processing materials ?
2.What material will you work on?
3.Do you mainly engrave or cut? If cut,What is your Max.cutting thickness?
4.You also can send your product samples to us.
According to your sample,we will recommend the best suitable machine for you.
If you have any question or need, please feel free to tell me.
Remark:
We have detailed installation and operation CD as well as full set of User's Manual in English to teach you how to install and operate the machine.
FAQ:
1) This is the first time I use this kind of machine, is it easy operate?
There are english manual or guide video that show how to use machine.
If there is still have any question, we can talk from phone or skype.
2) If machine have any problem after I ordered it, how could I do?
Free parts send to you in machine warranty period if machine have any problem.
Free after-sales service life for machine, please feel free contact us if your machine have any problem. we will give you 24hours service from phone and skype.
3) MOQ ?
Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you.
