textile large format t shirt roller sublimation heat press machine for saleachine
Rotary Heat Press 100% Full Oil Drum Elephant-B model is now available.
There is external tank connected to the oil drum to fill the oil drum full. Full oil drum improves the stability of oil drum temperature. It makes sure that density of color is the same throughout the large format fabric. New Rotary Heat Press 100% full oil drum is excellent for roll-to-roll transfer. Moreover, heating power (working) is 20% lower now. It helps sign producers reduce the electrical cost.
- Aligning Blanket Automatically
- Detecting Temperature on the Surface
- Filling Oil Drum to 100% Full (Saving 30% Power)
- Controlling Temperature Precisely (Controllable Silicon Solid State Relay)
- Minimizing Maintenance Effort (Slip Ring)
- At Least 70% Blanket Coverage
- Blanket Tension Controlled by Piston
- Fabric/Transfer Paper/Tissue Paper Tension Controlled by Compressed Air
| Data Sheet | ||||
| Model | DBX-1200B | DBX-1700B | DBX-1900B | DBX-3200B |
| Heating Media | Oil, 100% full | |||
| Voltage | 3 phase, 240V/380V | |||
| Power | 15kw | 21kw | 27kw | 40kw |
| Number of heating elements | 21 or 24 | |||
| Diameter of Drum | 420mm (Available in 600mm/800mm) | |||
| Transfer Speed | Transfer paper :2m/min-offset paper :3m /min | |||
| Max Temp. | 260 degree | |||
| Transfer Width | 120cm | 160cm | 185cm | 320cm |
| Felt Width | 130cm | 178cm | 198cm | 335cm |

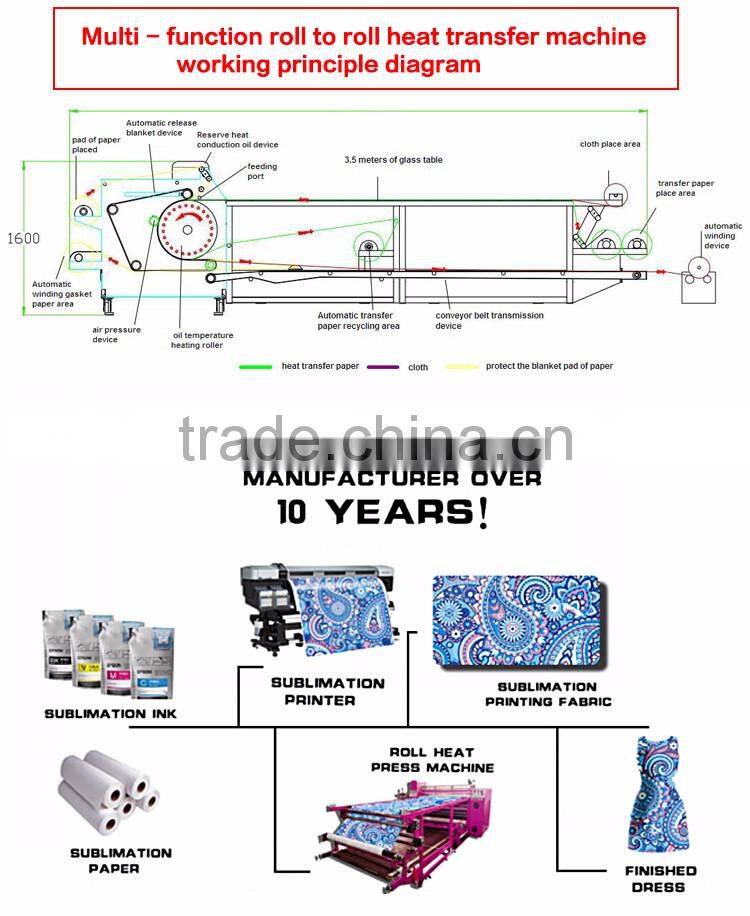

| Process Path | Deeding in through top drum | |||
| Function of Roll-to-roll | yes | |||
| Function of piece-by-piece | yes | |||
| Number of feeding rollers | 3 | |||
| Number of collecting Rollers | 3 | |||
| Work table | Yes,no glass | |||
| Transfer Pressure Bar | Without including | |||
| Machine Weight | 1800kg | 2100kg | 2400kg | 3200kg |
| Working table size | 1200x3500mm | 1700x3500mm | 2200x3500mm | 3200x3000mm |
Why Choose elephant roll heat press machine?
- ·Long service life, save your cost.
- ·One year warranty
- ·Best digital technology support - avoid problems during production.
- ·High speed at 250-300 Meters/hour - Improve production efficiency.

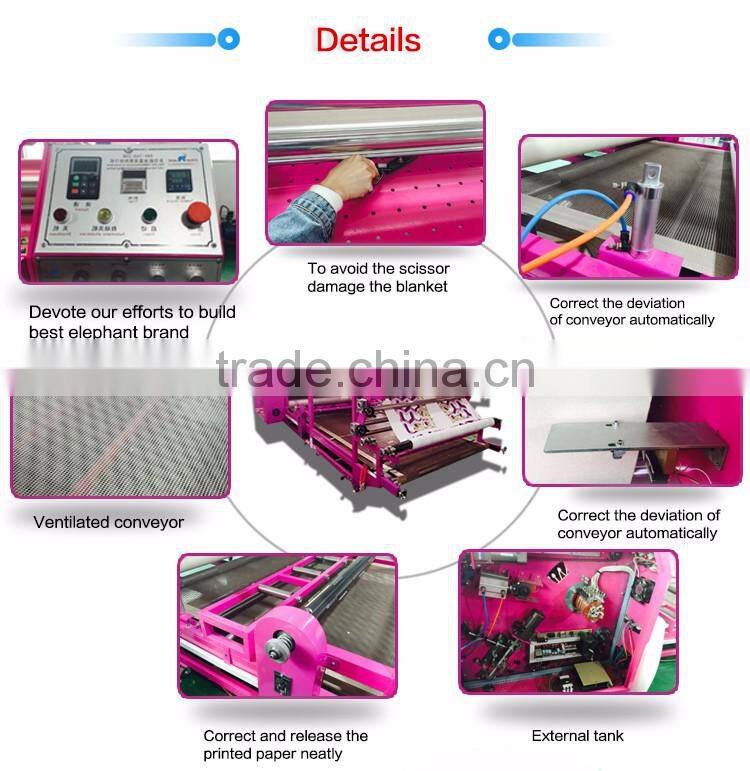

1.Prevent workers hand into the cylinder (when they are working)
2.Having automatic device for deviation and correction of blanket and conveyor belt
3.Having the function to avoid the scissor damaging the blanket
4.The Blanket can be off the heat drum competely for 8cm distance. No need to cool down the
6.having the outer oil tank which is more easy to fill in the oil and more safe
7. With breathable conveyor belt which make fabric heat dissipating faster and prevent color ghosting
8.With updated air expanding equipment for sublimation paper, finished paper and tissue paper.
Application:

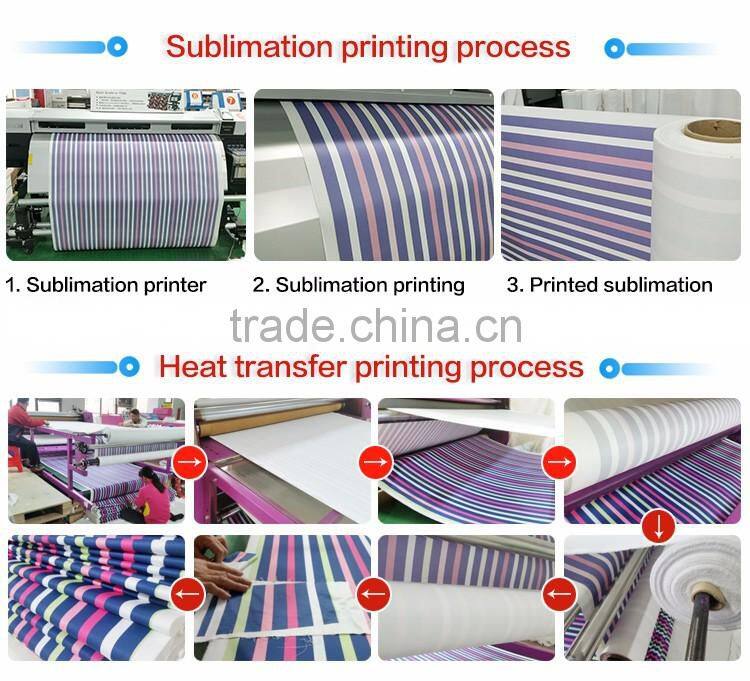

Its suitable for sublimation transfer T-shirt, large banners, flags, non-woven fabrics, apparel fabrics, blankets, towels, mouse pads, scarves and other products in the piece,
especially the roll fabrics need to continuous print.
Operation Vedio:
1./watch?v=wzluTGp2jW8
2./watch?v=j0ZrH0MOT1E&feature=youtu.be
3./watch?v=eBmIQxRPewk
Q1.how wide is the machine?
1.2M width, 1.7M width machine; 1.9M width machine
Q2. how about the speed ?
150-200m/h
Q3.does the Press rolls the Fabric once it is printed or you have to roll it on a different
Machine?
It can roll fabric after heat press, but we suggest you can roll it on other machine - roll yard machine to collect fabric as attachment, coz when finished printed , the fabric still has temperature about 90-150, if Roll the printed fabric, the pattern become shape by pulled, and color,fabric will affect , more
important if stretch fabric, we still advice to keep the stretch fabric in 5/6hours after finished printing
then roll it , or one night ,the color will more perfect.
Q4.are you able to print on dark Fabrics? if so how dark and on what contents? can it print on stretch goods?This press machine can press light color fabric,not dark fabric but can print on stretch fabric
Q5.how many yards or meters per hour?
150-200 meters per hours, depend on the fabric and the transfer speed.
Q6. do you supply Paper and ink and Parts?
Prices per gallon Prices per Paper yards ? we also offer paper and ink! We provide one-stop services!
Q7.do you have representatives in U S A ?
We have not representatives in USA,but we sale those machine all over the world!
Q8. How we keep the maintance of this roll heat transfer machine? how competitive are you
with your prices compare to your competition ? how long will it take ?
We can arrange our technicist to set up the machine and teach you to maintenance and train how to
use that machine! the printer and press machine delivery time is 15-20days!
Q9.does it do stretch lycre and nylon and what colors?Stretch polyester lycra fabric,Satin,curtain etc,but not suitable for nylon, need light color fabric, better of white color fabric!
by the way,coz the printer can print any color,and press machine can press any pattern color on white color,so do not need other color fabric to press!
Guangzhou Elephant Digital printing Co,.Ltd
| Contact Person: | Jodie Luo |
| Skype: | elephant2015 |
| Whatsapp: | 86-18102835308 |
| Tel: | 86-20-89015371, |
| Fax: | 86-20-85542001 |
| Web: | |
| Address: | 1.Guangzhou Address: 5th Floor,15th Yongning Street,Dashi village,Panyu District, Guangzhou City ( MTR line 3,Near Dashi MTR Station Exit D) |
| 2.Qingyuan address: Building 7, Dongcheng Industrial Park,No.48 Qingcheng District,Qingyuan,China. |
If there is anything we can do for you, we shall be more than pleased to do so.
Hope we can build good cooperation with you in the future.
