Home > Products > Roll Heat press machine > Heat Press Sublimation
Heat Press Sublimation
US$ 8,125 - 9,060
/ Set
1 Set(Min. Order)
- Guangzhou Port
- Money Gram Credit Card
You May Like
-
Guangzhou Factory Rotary Heat Transfer Machine
-
China Factory Supply High Quality Best Price t Shirt Printing Roller Sublimation Heat Press Machine
-
Oil Heating Sublimation Machine Polyeaster Tshirt Printing Roll to Roll Heat Transfer Machine
-
China Heat Transfer Roller
-
2016 Manufacturer High Quality Wholesale Price Sublimation Heat Transfer Roller Press Textile Calender Machine
-
High Quality Multifunctional Cheap Used t Shirt Roller Heat Press Machine for Sale
Product Details
| Condition | New | Plate Type | Flatbed Printer | |
| Place of Origin | Guangdong, China | Brand Name | Elephant- roll heat press machine | |
| Model Number | DBX-1900 roll heat press machine | Usage | Other, sublimation transfer for clothing,textile,fabric, sublimation printer for garment,polyester,fabric,t-shirt | |
| Automatic Grade | Other, Automatic, Automatic | Voltage | 380V, 380V | |
| Gross Power | 14kw | Dimensions(L*W*H) | 2880*1300*1600MM | |
| Weight | 1700KG | Certification | CE Certificate | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Roll to roll Heat Transfer Machine
Specifications
1)Roller Style Heat Press Transfer Machine
2)Simple operate
3)good after service
4)Environment friendly
CLICK HERE TO GET THE LATEST PRICE & CATALOGUE
| Data Sheet | ||||
| Model | DBX-1200B | DBX-1700B | DBX-1900B | DBX-3200B |
| Heating Media | Oil, 100% full | |||
| Voltage | 3 phase, 240V/380V | |||
| Power | 15kw | 21kw | 27kw | 40kw |
| Number of heating elements | 21 or 24 | |||
| Diameter of Drum | 420mm (Available in 600mm/800mm) | |||
| Transfer Speed | Transfer paper :2m/min-offset paper :3m /min | |||
| Max Temp. | 260 degree | |||
| Transfer Width | 120cm | 160cm | 185cm | 320cm |
| Felt Width | 130cm | 178cm | 198cm | 335cm |
| Process Path | Deeding in through top drum | |||
| Function of Roll-to-roll | yes | |||
| Function of piece-by-piece | yes | |||
| Number of feeding rollers | 3 | |||
| Number of collecting Rollers | 3 | |||
| Work table | Yes,no glass | |||
| Transfer Pressure Bar | Without including | |||
| Machine Weight | 1800kg | 2100kg | 2400kg | 3200kg |
| Working table size | 1200x3500mm | 1700x3500mm | 2200x3500mm | 3200x3000mm |
Product Description
Features of Elephant New Model Roll Heat Press Machine:
1. Prevent workers hand into the cylinder (when they are working)

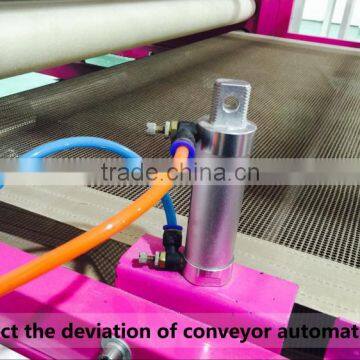

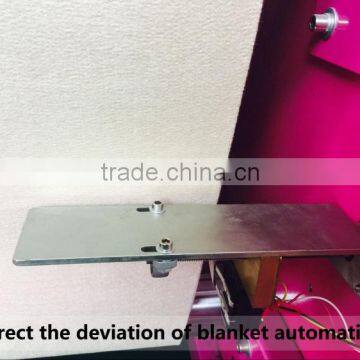

2. Having automatic device for deviation and correction of blanket and conveyor belt

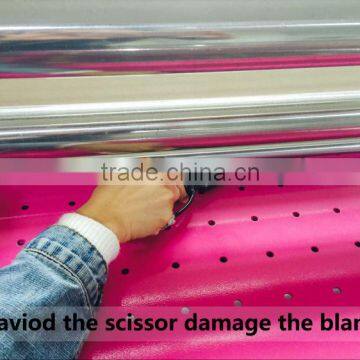

3. Having the function to avoid the scissor damaging the blanket
4. The Blanket can be off the heat drum competely for 8cm distance. No need to cool down the
blanket when you want to stop the machine which saves energy, it can also prevent the blanket
burn out when power off suddenly.
5. Machine has explosion-proof equipment and emergency stop button,more safe.
6. Having the outer oil tank which is more easy to fill in the oil and more safe

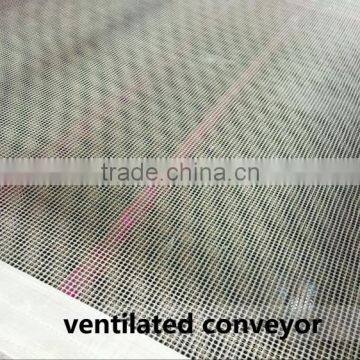

7. With breathable conveyor belt which make fabric heat dissipating faster and prevent color
ghosting.
8. With updated air expanding equipment for sublimation paper, finished paper and tissue paper.
Our Services
2. Main product lines:
1) Sublimation printer series: Epson, Mimaki, MUTOH.
2) Small heat press machine, Roll heat press machine.
3) Sublimation paper, sublimation ink.
4) Heat transfer vinyl, vinyl cutter plotter.
5) OEM service in sublimation printing.
3. Professional technical support, one year after sales service.
4.Good service, short delivery time.
Packaging & Shipping
Company Information
FAQ
1.how wide is the Roll to roll Heat Transfer Machine?
1.2M width, 1.7M width machine; 1.9M width machine
2. how about the speed ?
150-200m/h or 250-300 m/h
3.Does the Press rolls the Fabric once it is printed or you have to roll it on a different Machine?
It can roll fabric after heat press, but we suggest you can roll it on other machine - roll yard machine to collect fabric as attachment, coz when finished printed , the fabric still has temperature about 90-150, if Roll the printed fabric, the pattern become shape by pulled, and color,fabric will affect , more important if stretch fabric, we still advice to keep the stretch fabric in 5/6hours after finished printing then roll it , or one night ,the color will more perfect.
4.Are you able to print on dark Fabrics? if so how dark and on what contents? can it print on stretch goods?
This press machine can press light color fabric,not dark fabric but can print on stretch fabric
This press machine can press light color fabric,not dark fabric but can print on stretch fabric
5.How many yards or meters per hour?
150-200 meters per hours, depend on the fabric and the transfer speed.
6. Do you supply Paper and ink and Parts?
Prices per gallon Prices per Paper yards ? we also offer paper and ink! We provide one-stop services!
7.Do you have representatives in U S A ?
We have not representatives in USA,but we sale those machine all over the world!
8. How we keep the maintance of this roll heat transfer machine? how competitive are you with your prices compare to your competition ? how long will it take ?
We can arrange our technicist to set up the machine and teach you to maintenance and train how to use that machine! the printer and press machine delivery time is 15-20days!
9.Does it do stretch lycre and nylon and what colors?
Stretch polyester lycra fabric,Satin,curtain etc,but not suitable for nylon, need light color fabric, better of white color fabric!
Stretch polyester lycra fabric,Satin,curtain etc,but not suitable for nylon, need light color fabric, better of white color fabric!
by the way,coz the printer can print any color,and press machine can press any pattern color on white color,so do not need other color fabric to press!
