Guangzhou Supplier Provide the Best Quality Lowest Price t-shirt Sublimation Heat Press Machine for Sale

FOB Price

USD $8,000 - $138,000 / Set

1 Set(Min.Order)

Supply Ability 1000 Set / Sets per Month
Port guangzhou
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Plate Type:	Other, roll heat press transfer machine	Place of Origin:	Guangdong, China
Brand Name:	DBX -roll heat press transfer machine	Model Number:	DBX-roll heat press transfer machine	Usage:	Other, roll heat press transfer machine
Automatic Grade:	Automatic	Voltage:	380V/220V	Gross Power:	12-15KW
Dimensions(LWH):	280013001600mm	Weight:	1600kg	Certification:	CE Certificate
After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

Guangzhou Supplier Provide the Best Quality Lowest Price t-shirt Sublimation Heat Press Machine for Sale

Product Description

Rotary Heat Press 100% Full Oil Drum Elephant-B model is now available.

There is external tank connected to the oil drum to fill the oil drum full. Full oil drum improves the stability of oil drum temperature. It makes sure that density of color is the same throughout the large format fabric. New Rotary Heat Press 100% full oil drum is excellent for roll-to-roll transfer. Moreover, heating power (working) is 20% lower now. It helps sign producers reduce the electrical cost.

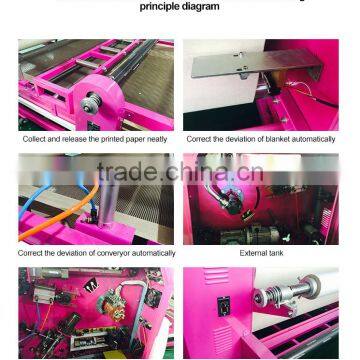

- Aligning Blanket Automatically
- Detecting Temperature on the Surface
- Filling Oil Drum to 100% Full (Saving 30% Power)
- Controlling Temperature Precisely (Controllable Silicon Solid State Relay)
- Minimizing Maintenance Effort (Slip Ring)
- At Least 70% Blanket Coverage
- Blanket Tension Controlled by Piston
- Fabric/Transfer Paper/Tissue Paper Tension Controlled by Compressed Air

Data Sheet
Model	DBX-1200B	DBX-1700B	DBX-1900B	DBX-3200B
Heating Media	Oil, 100% full
Voltage	3 phase, 240V/380V
Power	15kw	21kw	27kw	40kw
Number of heating elements	21 or 24
Diameter of Drum	420mm (Available in 600mm/800mm)
Transfer Speed	Transfer paper :2m/min-offset paper :3m /min
Max Temp.	260 degree
Transfer Width	120cm	160cm	185cm	320cm
Felt Width	130cm	178cm	198cm	335cm
Process Path	Deeding in through top drum
Function of Roll-to-roll	yes
Function of piece-by-piece	yes
Number of feeding rollers	3
Number of collecting Rollers	3
Work table	Yes,no glass
Transfer Pressure Bar	Without including
Machine Weight	1800kg	2100kg	2400kg	3200kg
Working table size	1200x3500mm	1700x3500mm	2200x3500mm	3200x3000mm

Why Choose elephant roll heat press machine?

·Long service life, save your cost.
·One year warranty
·Best digital technology support - avoid problems during production.
·High speed at 250-300 Meters/hour - Improve production efficiency.

Features of Elephant New Model Roll Heat Press Machine:

1.Prevent workers hand into the cylinder (when they are working)
2.Having automatic device for deviation and correction of blanket and conveyor belt
3.Having the function to avoid the scissor damaging the blanket
4.The Blanket can be off the heat drum competely for 8cm distance. No need to cool down the

blanket when you want to stop the machine which saves energy, it can also prevent the blanket

burn out when power off suddenly.

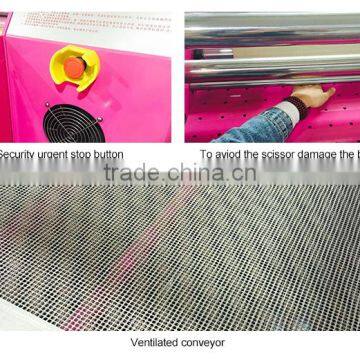

5.Machine has explosion-proof equipment and emergency stop button,more safe.
6.having the outer oil tank which is more easy to fill in the oil and more safe
7. With breathable conveyor belt which make fabric heat dissipating faster and prevent color ghosting
8.With updated air expanding equipment for sublimation paper, finished paper and tissue paper.
