Home > Products > Eco solvent printer & Cutter Plotter > High Preformance Mimaki CJV150 Series Print and cu Plotter

High Preformance Mimaki CJV150 Series Print and cu Plotter

Name: High Preformance Mimaki CJV150 Series Print and cu Plotter
Brand: Mimaki
Availability: InStock

FOB Price

US$ 15,625 - 16,407 / Set

1 Set(Min. Order)

Port Guangzhou
Payment TermsMoney Gram Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Plate Type	Flatbed Printer
Place of Origin	Japan	Brand Name	Mimaki
Model Number	Mimaki CJV150	Usage	Cloths Printer, Other, Cloths Printer, print and cut
Automatic Grade	Automatic	Voltage	AC100~120V±10%, AC220~240V±10%,50HZ±1HZ
Gross Power	Less than 1,440 VA	Dimensions(LWH)	2775x700x1392mm
Weight	160kg (353lbs.), 157kg	Certification	CE Certification
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

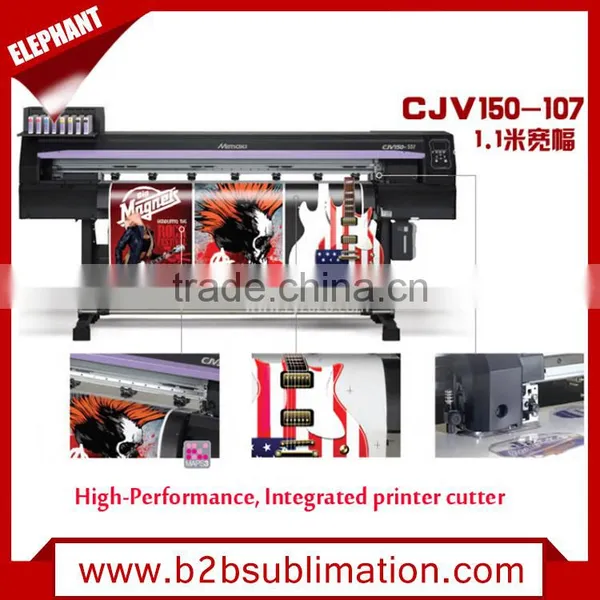

High preformance Mimaki CJV150 series print and cu plotter

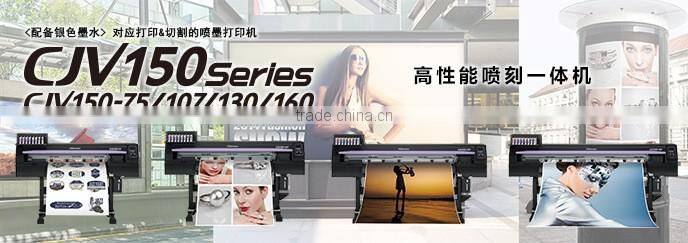

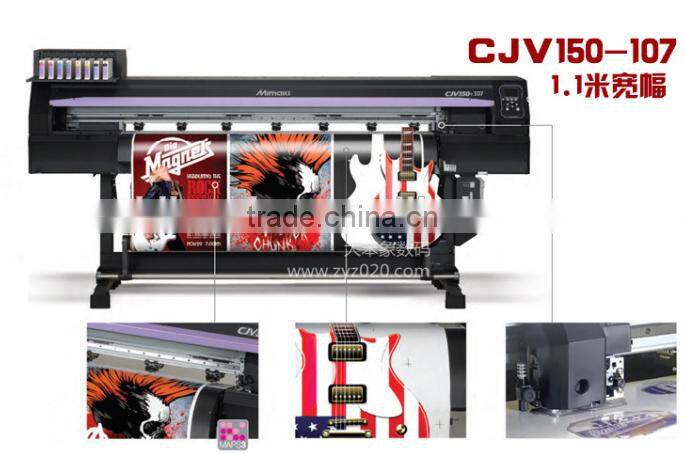

Mimaki CJV150 Series: High Quality Cut and Print

Mimaki CJV150 Series high-speed solvent printer cutter devices go beyond extraordinary to deliver a wide range of applications. Eco solvent inks in a variety of colors including Silver and advanced printing technologies means you can produce anything in a single unit that fits your workflow. Precision cutting capability gives you the ability to deliver custom and short-run items such as labels, T-shirt transfers or package prototypes. With the Mimaki CJV150 Series printers’ superb quality, color fidelity and flexibility plus cutting capability you’ll go beyond the expected to increase your business and deliver more than your customers can imagine.

Product Description

Specifications:

Mimaki CJV150 printer and cutter
Type		CJV150-75	CJV150-107	CV150-130	CJV150-160
Maximum print /Cut width		750 mm (24.0")	1,020 mm (40.1")	1,361 mm (53.5")	1,610 mm (63.3")
Print resolution Print mode (Scan x Feed)		540 dpi, 720 dpi, 1440 dpi
		540 x 720dpi, 540 x 900dpi, 540 x 1,080dpi
		720 x 540dpi, 720 x 720dpi, 720 x 1,080dpi, 720 x 1,440dpi
		1,440 x 1,440dpi
Ink	Kind	Exclusive solvent ink: SS21 ink, ES3 ink
	Capacity	4-color mode: 440 cc cartridge x 2/color, 880 cc/color
Media		6-color mode: 440 cc cartridge x 1/color, 440 cc/color
	Width	750 mm (24.4")	1,030 mm (40.5")	1,371 mm(53.9")	1,620mm (63.7")
	Thickness	Less than 1.0 mm
	Roll weight	Less than 25 kg (55 lbs.)
	Roll diameter	Inside: 2 inch, 3 inch / Outside: Less than φ180 mm (7.1")
Maximum cutting speed		30 cm: 11.8"/s (42 cm: 1 6.5"/s at the angle of 45)
Cutting force		10-350 g
Applicable tools		Cutter, Water based ball-point pen,
		Oil based ball-point pen
Media cutting		Cutting in Y direction by cutter on the head
Media heater		Pre/print/post heater
Media take-up device		Roll take-up device (Standard), inside/outside selectable
Command		MRL-III , MGL-IIc2
Interface		USB 2.0
Applicable standard		VCCI class A, FCC class A, UL60950,
		CE Marking (EMC directive, low voltage directive),
		CB report
Power		AC100V~240V, Less than 1,380VA
Operation environments		20°C~35°C, 35~65%RH (No condensation)
Dimensions (W x D x H)		1,524 x 739 x1,424mm (60" x 29.1" x 56.0")	1,934 x 739 x 1,424mm (76.1" x 29.1" x 56.0")	2,289 x 739 x 1,424mm (76.1" x 29.1" x 56.0")	2538x739x1424mm (99.9"x29.1"x56.0")
Weight		110kg (242 lbs.)	130kg (286 lbs.)	145kg (319 lbs.)	160kg (352 lbs.)

Highlights of the Mimaki CJV150 Series Cut and Printer Capability

The ability to pre-cut before printing prevents common problems such as film separation and other issues related to post-cutting on thin materials.

Eco Solvent or Dye Sublimation ink

The CJV150 Series can be configured for either eco solvent printing for sign and graphics applications or for dye-sublimation printing for textile and apparel transfer sublimation applications.

Expanded Eco Solvent Ink Set with Silver

The SS21 eco solvent ink set includes ten colors including Silver, which can be used to create metallic color effects for labels, decals and package prototyping jobs.

Uninterrupted Ink Supply System (UISS)

When printing in CMYK, CJV150 Series printers can be configured with two ink cartridges per color. Utilizing the UISS (Uninterrupted Ink Supply System) when one cartridge is emptied, the printer automatically switches to the full cartridge to deliver continuous imaging.

Precision Ink Drop Placement

Mimaki designed an optimum waveform enabling the print head to jet each ink color at the appropriate jetting angle without losing precise ink droplet circularity.

Anti-Banding Techology

Variable drop printing combined with MAPS3 (Mimaki Advanced Pass System 3) technology ensures precise and accurate print quality throughout the printing process, greatly reducing the appearance of banding and resulting in a smoother image.

Uniform Media Drying

A Mimaki-patented, three-way intelligent heating system results in uniform ink drying across the width of the printer, assuring even image quality.

Pre-heater: Heats media to the optimum temperature before printing.
Print heater: Dries ink after it lands on media before it bleeds, improving color development.
Post-heater: Enhances ink drying and achieves stable take-up.
Top blower: Air blower supports drying of ink.

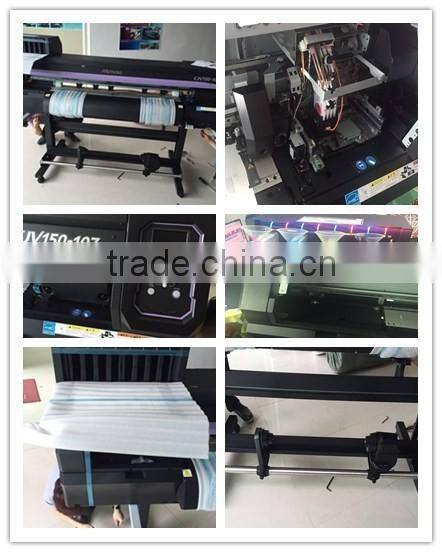

Product Shows

What you can can do with the Mimaki CJV150 Series

1) With eco solvent inks:

Signage
Vehicle graphics
Point-of-purchase displays
Banners
Posters
Exhibition clings
and more...

2)With dye sublimation inks:

Flags
Fashion & Sportswear
Promotional
Exhibition soft signage
T-shirt transfers
and more…

3)With on-board cutting:

Labels
Decals
Vehicle markings
Apparel transfers
and more…

The effect of Eco-solvent transfer paper:

Printer and cutter for cotton solution:
