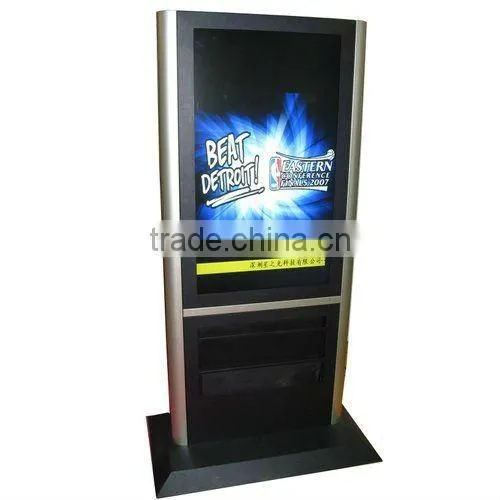

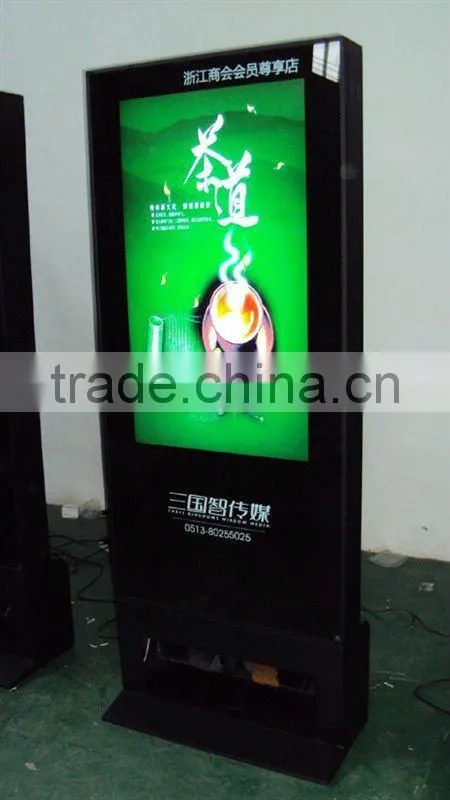

LCD advertising machine

FOB Price

USD $1,283 - $1,331 / Set

1 Set(Min.Order)

Supply Ability 500 Set / Sets per Month
Port Dongguan
Payment Terms:Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Guangdong, China	Brand Name:	MINCH	Model Number:	Minch-LCD-A
Type:	TFT	Application:	Indoor	Panel Size:	42 Inch, 42 inch real color LCD screen
Max Resolution:	1920*1080	Viewing Angle:	H168/W168	Pixel Pitch:	0.227mm (H) x 0.227mm (W)
Color:	16.7M	Contrast Ratio:	1000:1	Brightness:	500cd/m2
Response Time:	8ms	Input Voltage:	220v

Packaging Details

Packing list: 42 inch floor standing LCD ad player, keys, English manual, remote controller.
Packing size: 1870mm x 250mm x 830mm
Net weight: about 92kg Gross weight: about 112kg

Product Description

LCD advertising machine

Main Board Function Parameters

Description to the Main Function of the Uniprocessor Version
Function	Support the Video Coding Format MEPG4	MEPG4(AVI, DIVX, XVID),MEPG2(DVD, VOB, mpeg), MEPG1(VCD, DAT, MPG),MP3,JPG ,BMP,GIF,PNG
	Automatical on and off	Many time slots for on and off can be setted
	Power off memory	Support power off memory, set the play time a few minutes before continuing when power on again
	Music Picture Mode	Background music when pictures played
	Interface Language	Multiple languages can be set in the operation interface (Chinese, English, etc)
	Play log	Support to automatically keep all the playing record and the keeping time can be adjusted
	Play time defined	Picture play time can be adjusted
	Picture play mode	Many kinds of pictures can be changed
	Protective Function	With safety lock, in case of random replacement to the CF cards, support CF and menu interface encryption
	Rolling subtitles	Support rolling subtitles, adjustable effect index
	Play the files classified	Support the repeat play of the whole cards, of video files, and of pictures
	Time display	Can check the calender, adjust the time display
	Media types supported	CF cards/USB (SD cards for choice)
	Software update	update through USB

Chip type of the uniprocessor version: Mstar 6M48

Advantage of the uniprocessor version: Easy operation. Store the videos files, audios, pictures and etc in the U disks, SD cards, or CF cards, which should be inserted to the card slot, so that the files can be played normally.

Disadvantage: Replace the files by hands directly, and can not have unified management all the files online

Purchasing Suggestions: If your company meets these situations, it would be better to buy this LCD advertising machine. There is no need to replace the files very frequently, and to have unified management and control to the play of the files. There are abundant of human resources and the cost is very low.

Main Functions Descriptions
System Platform	LINUX embedded, operation system with 2.6 Kernel
Features	Files with different types can be played. Embedded systems are hard to be poisoned or crashed.
Videos types supported	MPEG1 / MPEG2 / MPEG4 / AVI / VOB / WMV / DIVX / MOV
Picture types	JPG / JPEG / GIF / PNG / BMP
PPT	Microsoft Office PowerPoint
Text	Rolling captions and texts with txt format supported, rolling up and left can be setted, the captions background color and words color can be setted.
FLASH	Not supported
Web page (html)	Not supported
Excel Word	not supported
Stream media live broadcast	Support stream media live broadcast and the following agreement: HTTP / UDP / FTP / RTP / RTSP / MMS
remote monitor	support the realtime monitor terminal play pictures
Turn on and off timely	Support the automatic on and off according to the setted time
Remotely turn on	Support remotely turning on to the terminal
USB copy	Support the USB to copy the list and the contents for playing
Screen play with divided areas	Support the screen play with more than 20 divided areas

Sigma 8653

Network Version Advantage: Can have unified management for many terminals, and monitor the working situation of the whole terminals with higher efficiency.

Disadvantage: Can not play the flashing pictures, Excel, Word, or webpages now. The extended properties are week. Only the exclusive information published software.

Purchasing suggestions: It can have unified management for a lot of terminals, and the files played are not mainly FLASH pictures, only for information published with high performance.
