Vertical Ultrasonic system
1. Main Parts:

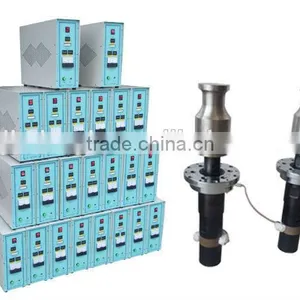

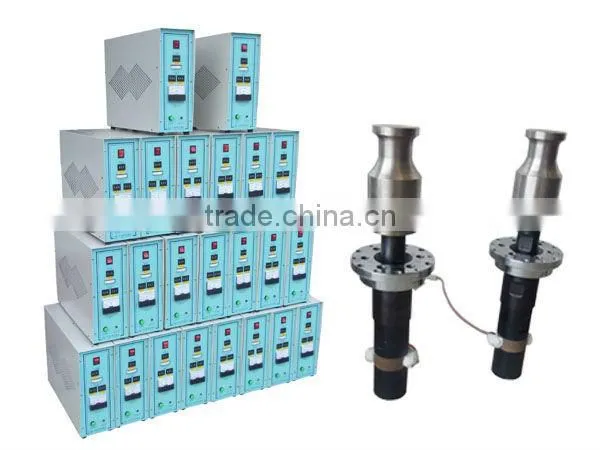

Ultrasonic Generator, Ultrasonic Transducer and Ultrasonic Horn.
2. Working Principle:
The transdeucer will transfer the high frequency electric erergy,which was produced by the ultrasonic generator,into high frequency mechanical vibration,which will work on nonwoven products by the welding head.Ten of thousand times ultrasound for frication each second between one nonwoven and the other will be produced by high-frequency mechianical vibration.And then contact area between nonwoven products will be fused promptly.
3.Applied Range:
It can connecte with nonwoven bag making machine, nonwoven surgical mask making machine, nonwoven air-con filter making machine, nonwoven glove making machine, etc.
4.Features:
(1) Strong and stable output power.
(2) Suitable for continuous welding for long time.
(3) Ultrasonic power can be adjusted according to size and material of products.

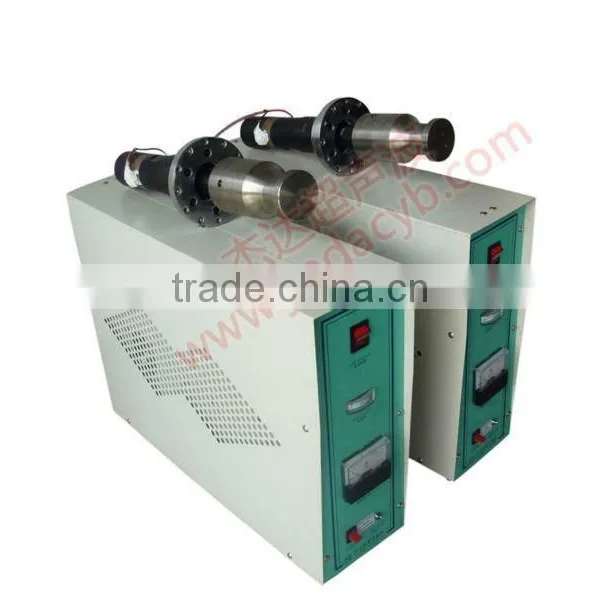

(4) Neat. Ultrasonic Generators of Horizontal Type and Vertical Type for your selection.
(5) Size of the Ultrasonic Generator: 385mm*525mm*135mm
(6) Net Weight of the Ultrasonic Generator: 15KGS
(7)The welding area can be made according to customers' requirements, like sculpturing, hardening treat, sand blasting, etc.
5.Warranty:
We have 1 year warranty, and lifetime maintenance.

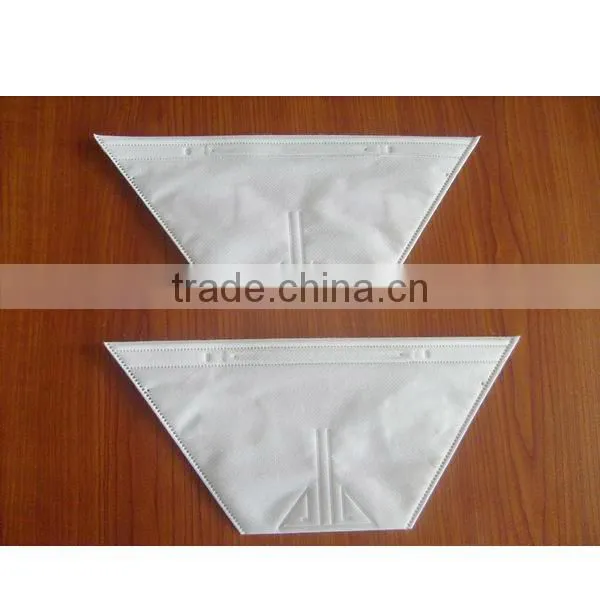

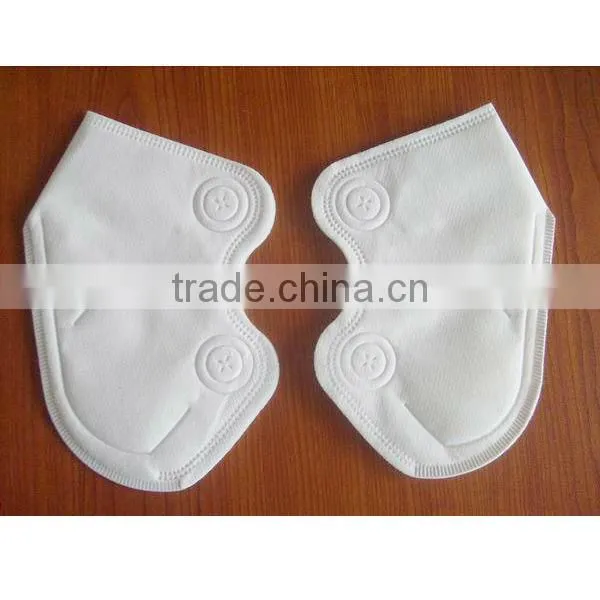

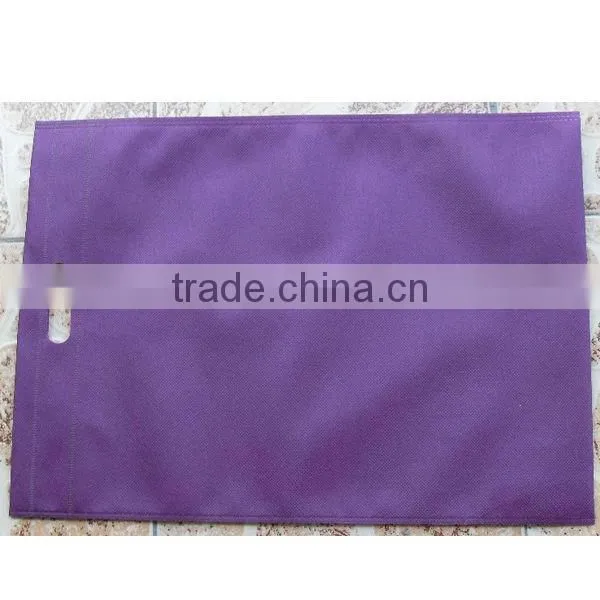

6.Some Applied Samples:
