ultrasonic soldering equipment
1. Applications of ultrasonic soldering equipment:

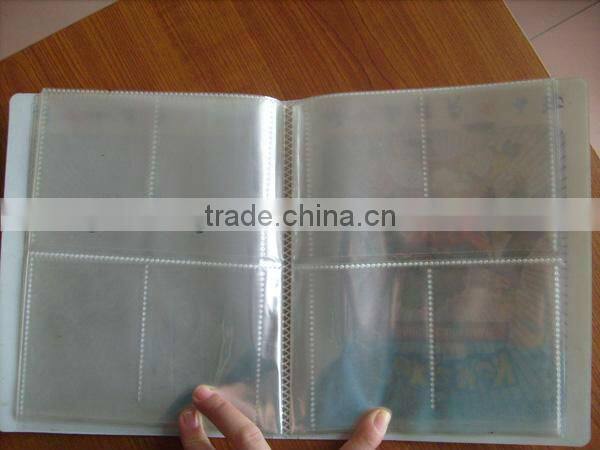

It is used for welding and forming of large Toys, Stationery, Non-woven Fabrics, Photo Album, etc.
2. Features:
1. The large base with attractive appearance is stable and durable. Thick pillar is equipped on
this machine to avoid movement backward of the transducer system.
2. Precise screws are used to control movement of the Transducer System up and down. So it is stable
and saves effort.
3. Overcurrent protective device is installed to reduce fault and ensure the machine work
normally.
4. High quality, efficiency and output power. Spare parts are made in Japan, West Germany,
Taiwan, etc.

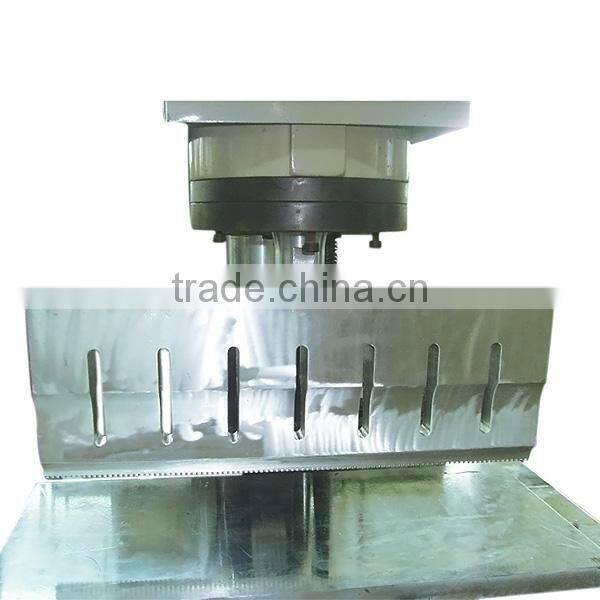

5. Horizontal position of the transducer system is adjusted by four Fine Adjustment Screws. So
the horn can be adjusted precisely and conveniently. And then it can weld products evenly. Product
pass rate will be improved.
6. Warranty for the whole machine is one year.
3. Parameters:
Specifications |
JD-3215D |
JD-4215D |
output power (W) |
3200 |
4200 |
frequency |
15KHz |
15KHz |
input voltage |
AC220V |
|
welding head stroke |
100mm |
|
oscillating system |
Self-excited oscillation circuit |
|
output time |
0.01-9.99S |
|
pressure |
pressure range of 1-7bar |
|
power output range |
1-6 stall continuously adjustable |
|
vibration head cooling system |
air-cooled |
|
welding area (mm) |
300 |
500 |
Dimension (mm) |
800 × 1000 × 1800 |
|
net |
216kg |
230kg |
