1. Application of ultrasonic sewing machine for curtain :

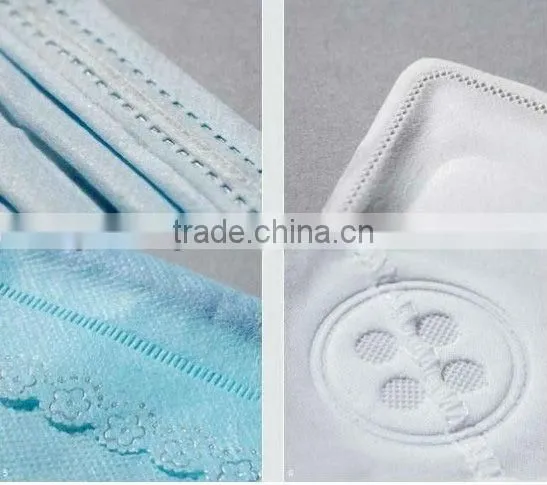

Lace clothing, skirt rim, sportswear, pajamas, gown , hair decorations, packaging satin, colored ribbon, tent, raincoat, tablecloth, chair cover, bedspread, pillowcase, quilt cover, curtain, handkerchief, coloured flag, disposable operating coat, non spin respirator, handicraft , decorations products
2. Suitable material for ultrasonic sewing machine:
composite material, thermoplastic film and plastics slice, such as chemical fibrous cloth, nylon cloth, knitting cloth, non spin cloth, gush glue cotton, PE paper, PE + aluminium, PE + cloth, and so on.
for instance, Nylon, needlework cloth, non-woven fabrics, TR cloth, Tetoron cloth(Polyester cloth),multilayer cloth, and other coated fabric and coated papers
3. Characteristics of ultrasonic lace sewing machine
1. Power Supply: 220V±5V 50Hz (60Hz)
2. Working Frequency: 20KHz
3. Output Power: 1500W
4. Working Speed: 8-22M/min
5. Effective Breadth: 0.1-150MM
6. Equipped Pattern Mould: (0.1-150)MMxØ51MM
7. Materials Suitable: for Hot Fusibility, for example: polyester, nylon, chemical and non-woven fabrics
8. Packing Size: L (130cm)x W(60cm)x H(126cm)
9. Total weight: 120 Kgs
4. Functions of the ultrasonic sewing mahcine
1. The operations of side scraping and trimming
2. The side scrap in one side and side melting can be carried out at the same time. It makes the side smooth, no roughness and no coarse side.
3. Make holes
The holes with different patterns can be cut and the treatment of side melting can be carried out too.
4. Transfer printing
5. Two layers or multi-layers can be melted together. It is not necessary to use thread and needle. This process can replace sewing. Moreover the melted strength is excellent.
6. Cut Material
This machine can cut material for single piece or many pieces at one time. Moreover it can carry out the treatment of side melting. There is no coarse side.
7. Forming
Press the pattern wheel.
At one time the process of cutting, hole breaking and patter printing can be carried out.
