20KHz 1500W / 2000W Ultrasonic Lace Sewing Machine

20KHz 1500W / 2000W Ultrasonic Lace Sewing Machine thumbnail-1
20KHz 1500W / 2000W Ultrasonic Lace Sewing Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Automatic Grade:
Semi-Automatic
Place of Origin:
Guangdong, China
Contact Supplier Request Quote Chat Now
Dongguan Jieda Ultrasonic Equipment Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Automatic Grade Semi-Automatic
Place of Origin Guangdong, China
Brand Name Jieda
Model Number JD-7021/7022
Voltage AC220V
Power(W) 1500W
Dimension(L*W*H) 1200*1100*600
Weight 135KGS
Certification requirement
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

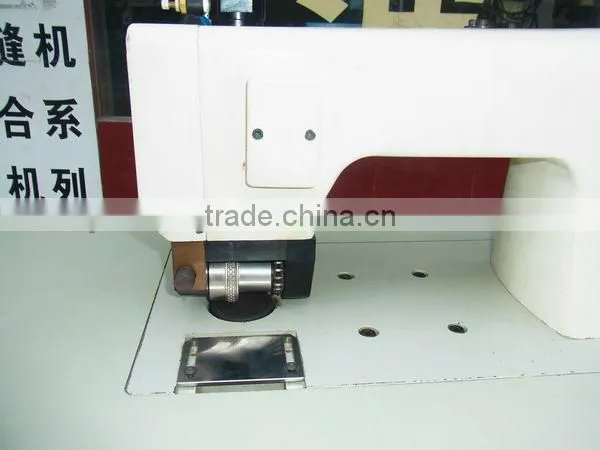

Ultrasonic Lace Sewing Machine



1. Suitable for materials:

Synthetic chemical fiber fabrics, blended fabrics containing fiber,such as TC/C6533 flat woven, needle mark weaving , nylon cloth , non-woven, Glitter cloth, Shading Bu , PS, PVC, PE+PSPER, TR and all kinds of disparity in re-or fitting weaving class.

2. Technical specifications:

Specifications

JD-50

JD-75

JD-100

JD-150

Output power

1500w

2000w

Frequency

20KHz

Input voltage

AC 220V

Welding speed

0-20m/min

Oscillation system

Self-excited oscillating circuit

Current direction

Output amplitudes instructions

Air pressure

Pressure range 1-7bar

Vibration head cooling system

cooled

Weld width

50mm

75mm

100mm

150mm

Shape dimension

1200*1100*600

Net weight

115kg

135kg

3.Functions of Ultrasonic Lace Machine:

The operations of side scrap and trimming can be carried out at the same time:

The sidescrap in one side melting can be carriedout at the same time.It makes the side smooth but no roughness.



Make holes: Cut out the hollow holes of various flowers and deal with melting edge at the same time.

Transfer printing: transfer - printing the transfer paper or golden foil paper on the material..

Welding: two layers or multi-layers can be melted together . Wireless suture instead of sewing and the welding strength is excellent.

Cut material: this machine can cut materials for single piece or many pieces.Moreover if can carry out the treatment of side melting.there is no coarse side

Forming
In accordance with flower pattern round the same time doing trimming, hole, stamped, so that products once formed.

20KHz 1500W / 2000W Ultrasonic Lace Sewing Machine20KHz 1500W / 2000W Ultrasonic Lace Sewing Machine
