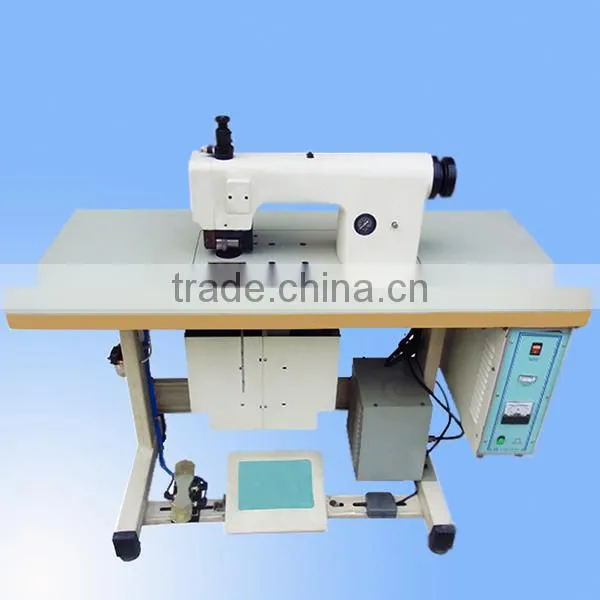

Ultrasonic Roller Welding Machine
Advantages:
1 - Eliminating the traditional sewing pinholes caused by the phenomenon of non-woven up watering,plastic thin material up to water and airtight.
2 - Follow the vibration friction melt or cut , do not smoke, no odor , eliminating high-frequency, fervently the danger and air pollution.
3 - 20000 times per second vibration friction, the boot can be processed without preheating,easy continuous processing, high speed , high efficiency , low labor costs.
4 - Leading activities for the stainless steel adjustable material guide groove,arbitrary adjustments high practicality.
5 - only need to be replaced you can do all kinds of tricks Hanawa processing , Hanawa high precision , long life, there are professional valet design drawings produced Hanawa , please buy with samples.
6 - Ultrasonic vibration to contribute to super-fat,hith efficiency, low temperature welding head ,quality and stablility of machine most suitable for continuous processing of thermoplastic materials.
Suitable for materials:
Synthetic chemical fiber fabrics, blended fabrics containing fiber,such as TC/C6533 flat woven, needle mark weaving , nylon cloth , non-woven, Glitter cloth, Shading Bu , PS, PVC, PE+PSPER, TR and all kinds of disparity in re-or fitting weaving class.
Technical specifications:
Specifications |
JD-50 |
JD-75 |
JD-100 |
JD-150 |
Output power |
1500w |
2000w |
||
Frequency |
20KHz |
|||
Input voltage |
AC 220V |
|||
Welding speed |
0-20m/min |
|||
Oscillation system |
Self-excited oscillating circuit |
|||
Current direction |
Output amplitudes instructions |
|||
Air pressure |
Pressure range 1-7bar |
|||
Vibration head cooling system |
cooled |
|||
Weld width |
50mm |
75mm |
100mm |
150mm |
Shape dimension |
1200*1100*600 |
|||
Net weight |
115kg |
135kg |
||
