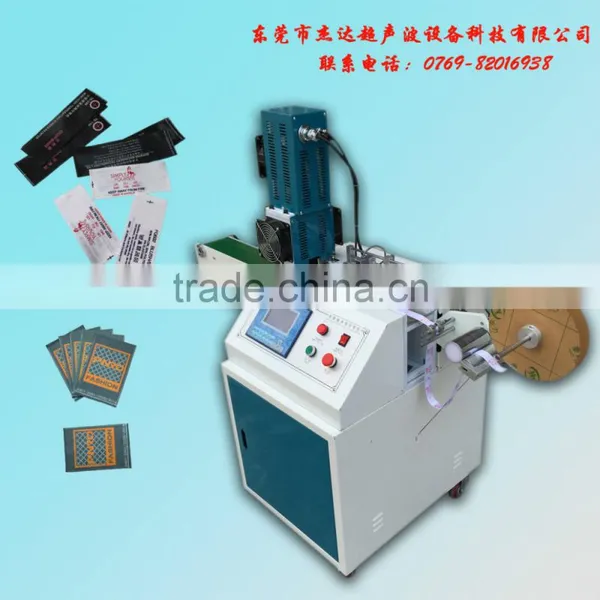

Principle Of Ultrasonic Woven Label Cutting Machine
Ultrasonic Woven label cutting machine using ultrasonic shear technology, standard shear the woven label trademark, but the incision will isn’t hardening and loose, don't smoke and burn the edge, it is smooth, soft, fine. And keeping original nature of the elastic cords.
Features
1.Using ultrasonic shear technology , the incision is complete and beautiful . The cutting edge is neat , smooth, no burrs, no loose edge, excellent shear effect.
2. This machine adopt high-powered ultrasonic generator system , can process soft materials of different nature by the microcomputer control system using the instant high temperature .
3..It is automatic feeding, computer counting, high precision, high speed, automatic shearing, efficient fast. It can adjust length free .
4. It mostly suit for straight cut of the woven label or the others soft materials.
5.It has the function of automatic color chasing.
Parameter
Model |
JD-1820HD |
Frequency |
20KHz |
Power |
2000W |
Input voltage |
220V |
Vibration head cooling system |
Air-cooled |
Cutting length |
1-1000 mm |
Cutting width |
1-70 mm |
Cutting Speed |
500PCS/ Min.(According to the length) |
|
Size length*width*highly |
960mm*660mm*1300mm |
Net Weight |
160KG |
Range of application
Due to the nature of woven lable of washable, so much used in the industries of clothing, footwear, bags, bedding, hats, toys, etc.
