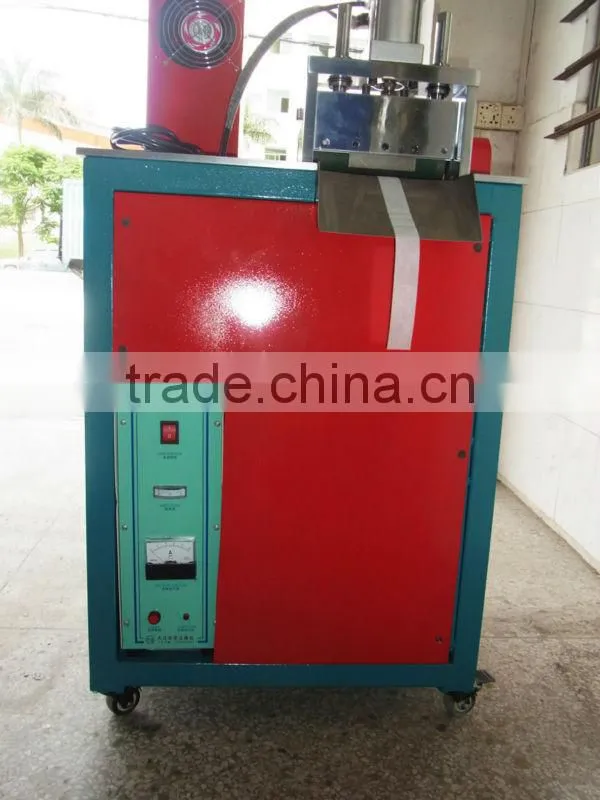

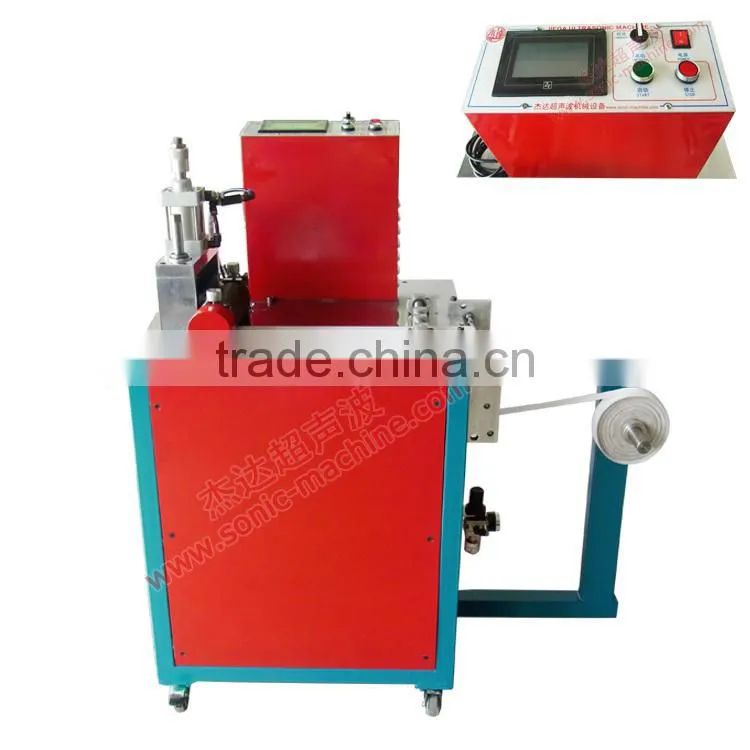

Automatic Ultrasonic coloured ribbon cutting machine for sales
- 30 Set / Sets per Month
- shengzhen
Product Details
Place of Origin: | Guangdong, China | Brand Name: | JIEDA | Model Number: | JD-2018HD |
Condition: | New |
Product Description
Automatic Ultrasonic coloured ribbon cutting machine for sales
Ultrasonic label cutting machine adopt ultrasonic cutting, the incision complete beautiful, trimming neatly smooth, no rough selvedge, don`t lost edge, don`t burns, don`t yellowing, don`t black; adopt imported PLC programmable controller, color code follow the electric eye to cooperate the stepping motor automatic feed, label dimension precise cutting, computer counting, high precision, fast speed, quick and easy to adjust the length, efficien
Features of ultrasonic coloured ribbon cutting machine :
1. Shear the use of ultrasonic, incision aesthetic integrity, trimming neatly smooth, without Burr, to leave the border areas, not black, not burned, not the hardware products to shear feel very good results
2. The PLC touch-screen machines used console, automatic feed, the computer count, high precision, speed and adjust the length of simple and quick, efficient, depending on the demand for our products and can also cut

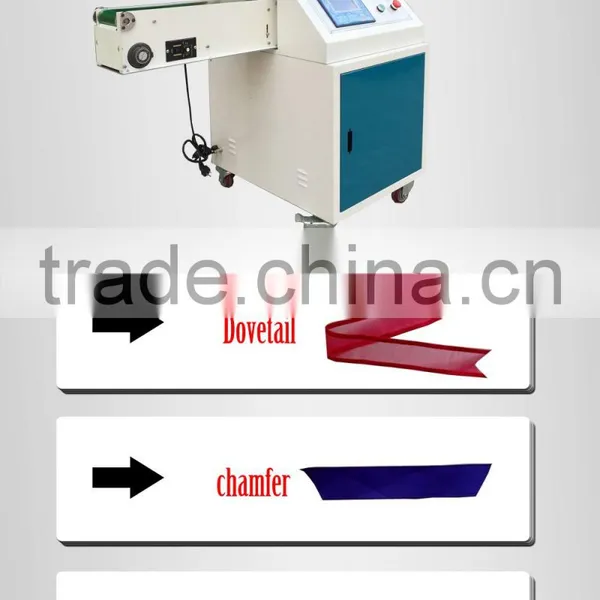

3. More for gifts belt, nylon belt strip, strip Ribbon, Ribbon bar, such as chemical fiber cut straight knife, knife ramps, such as shape Dovetail
4. This machine have special rotary systerm, can cut different shapes of the products , just need to change the cut knif
Technical Parameters of coloured ribbon cutting machine:
Cutting Width:1-200MM
Cutting Speed:60-120pcs/min
Power:220v/1.5KW
Weight:135kg
Machine Size: 1100*600*1230mm
Details of the machine :
Usd for ultrasonic cutting:

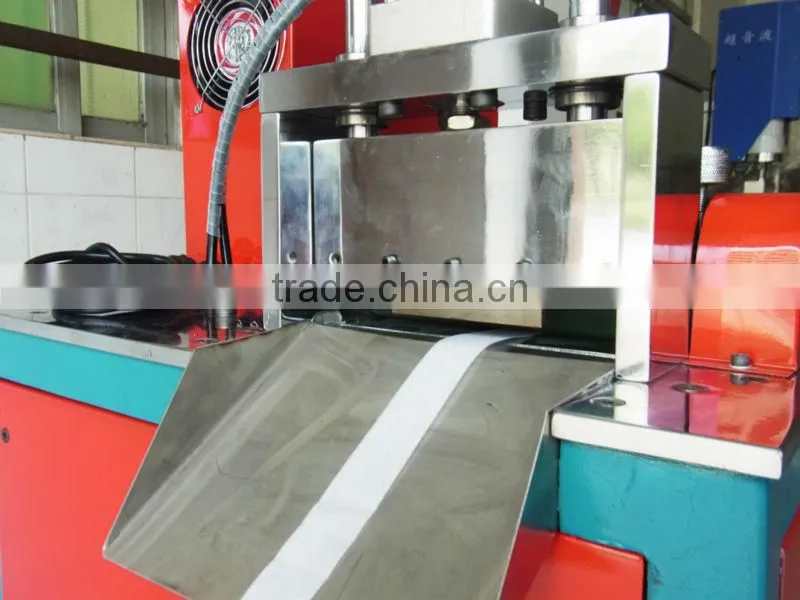

Cutting kinfe:

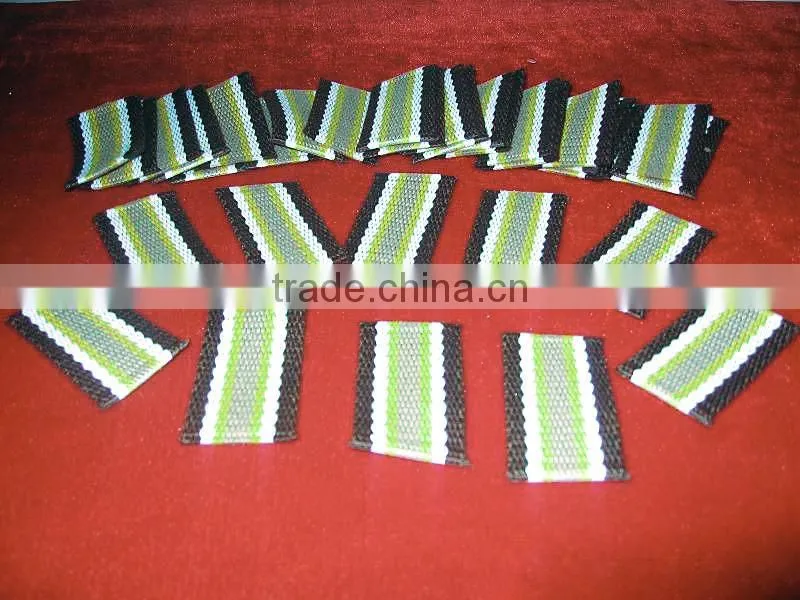

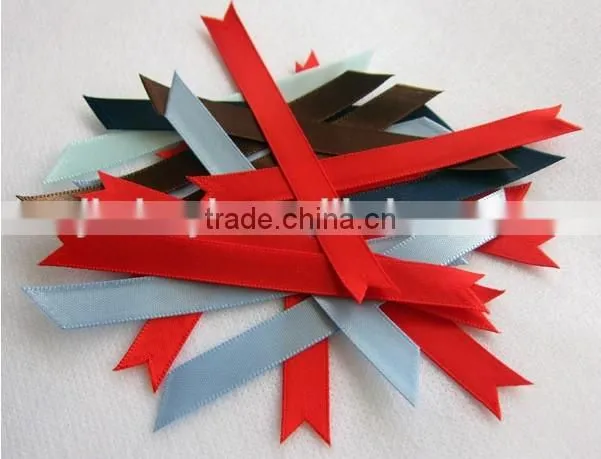

Cutting sample:
