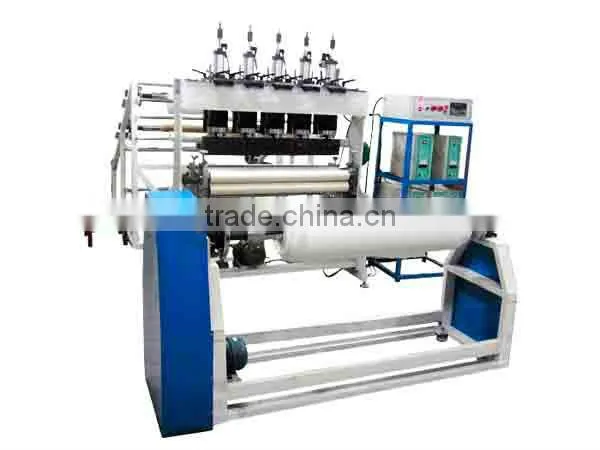

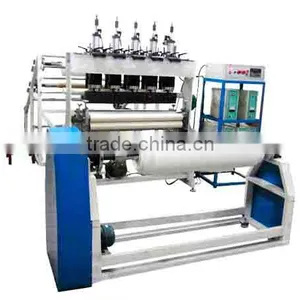

Dongguan Ultrasonic Nonwoven Bonding Machine
Applied range:
Car tarpaulin, Car seat covers, luggage handbags, footwear shoes, clothing coat, children jacket, pillow, quilt, mattress bed cover, cushion pillow, table mats table cloth, curtain shower curtain, cold gloves, baby mat moisture urinal pad, home decorative supplies, wardrobe, incorporating storage, tents wardrobe, washing machine covers, mummy bag, blanket, cosmetic bags, suit cover, bed cabinet, sauna kits cover, shoes , PVC pool bottom, etc..
1.The principle of Ultrasonic Bonding Machine
Using high-frequency vibration wave propagation to weld two or more surfaces, In the case of pressure, making the material surface to frication from each other and urge the fusion between the molecular layer, the advantage is high speed, energy conservation, high fusion, good conductivity, no spark, close to the cold processing.
2.Product Features:
1.Short welding time, ultrasonic automatic bonding without thread and needle,more efficient and convenience, the sewing speed is more than 5 to 10 times compare with traditional way. the width of ultrasonic quilting machine is decided by client.
2. Because of needleless, so it can avoid to leave the needle inside the product, eliminate the security risks, It’s a new safety and environmental protection product.
3. Comparing with the traditional way, ultrasonic quilting is more cementation, clear embossed surface, has a more three-dimensional relief effect, more high-class and beautiful.
4. After Pinhole-free processing, it is waterproof and more warm.
5. Using roller die, easy to change, and can sew many kinds of designs. and can make any design according to client’s request.
6.This machine is fully automatic, equipped with infrared
3.Technical parameter
Mould |
JD-2020 |
Frequency |
20KHz |
Supply Power |
220V 50KHz |
Total Power |
13(KW) |
Max Width |
1050mm |
Pressure Source:compressed air |
(5MPA) |
Material of Frame |
Steel plate connection |
Ultrasonic system |
20K 1.8KW 5 sets |
Ultrasonic horn |
Special steel horn |
System control |
inverter adjustment |
Speed |
0-18M/min |
Dimension |
L5700*W3570*H6100 (according to different size) |
Weight0.0202 |
1200kg |
knurled wheel |
Length, designs based on customers' requirements custom-made |
sample:
Welcome to contact us for more information:
Company Name: Dongguan Jieda Ultrasonic Equipment Technology Co., Ltd.
Attn: Joy Jiao
Mobile: +86-13829249721
Tel: + 86-769-87939213 & 82016938
Fax: + 86-769-87865240
Skype: jiedacsb
