Help CenterDouble Location for the Cutting and Rewinding Non-woven Punching Machine
Related Products
-
One-time Pearl Grain Face Towel Non-woven Punching MachineNegotiableMOQ: 1 Set -
Pearl Grain Non-woven Punching MachineNegotiableMOQ: 1 Set
-
Professional Custom1.6 m Non-woven Composite MachineUS$ 32,000 - 32,000MOQ: 1 Set
-
Ultrasonic Stitching Machine Made in China JiedaUS$ 32,000 - 33,000MOQ: 1 Set
-
JIEDA Ultrasonic Fabrics Cap Making MachineNegotiableMOQ: 1 Set
Equipment structure:
Gas rose axis Zhang Lifang roll device, automatic tension controller into the material roll tension control, uniform speed, non-woven Don't crinkle;Heating is concave and convex die punching device, high-power heating of heat wire rods, intelligent temperature control device to control the temperature, temperature can be adjusted according to actual material;Ultrasonic composite equipment, After the non-woven fabric has been formed by heating mold, compound with another layer of non-woven fabric, enhance non-woven fabric pattern stereo feeling, Random pull does not distort;Output winding device, the double location automatic winding, automatic folding cutting device, high production efficiency, simple operation, easy to adjust.Set machine, electricity, gas integration.
The machine features:
1. Pass, can according to customer requirements for grain size, depth and color customization.
2. Suitable for material, PP copy stick, staple hot-rolled non-woven, staple sirocco non-woven fabrics.
3. The output stereo sense is strong, feel is good, pass even, good flexibility, good effect in self-defense, upgrade the product.
4. The machine operation is simple, long working hours, a single operation.
5. Prototype grain 200 mm wide (according to the requirements of actual)
6. Large frame modelling beautiful, strong and durable.
7. Models do appearance can be customized according to clients request.
Machine system structure:
Into the material -piercings- composite - winding - cutting, can be customized according to the requirements
Technical parameters
1. The production speed: more than 60 m per minute
2. The biggest winding diameter: 1000 mm
3. The roller diameter: 225 mm (can be customized according to customer's requirements)
4. The effective work width: prototype effective width is 210 mm (can be customized according to customer's requirements)
5.Working temperature: Roll surface convex roller 40 ℃ to 80 ℃ concave roll usually temperature will be slightly lower
6. Overall size: 4500 (L) x 1200 (W) x 1900 mm (H) (prototype)
7. Working voltage: 220 v
8. Total power: 8 kw
9. Net weight: 800 kg
The scope of application:

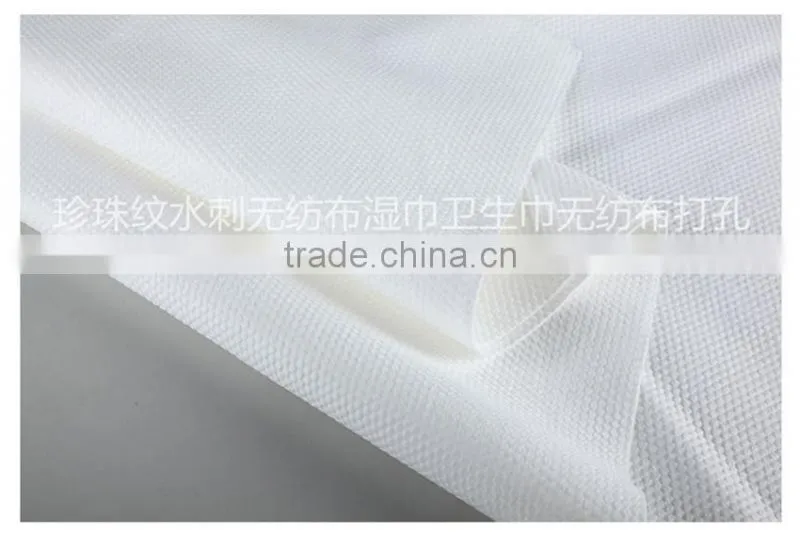

1, material: PP spun-bonded non-woven, staple hot-rolled non-woven, staple sirocco non-woven fabrics, etc.

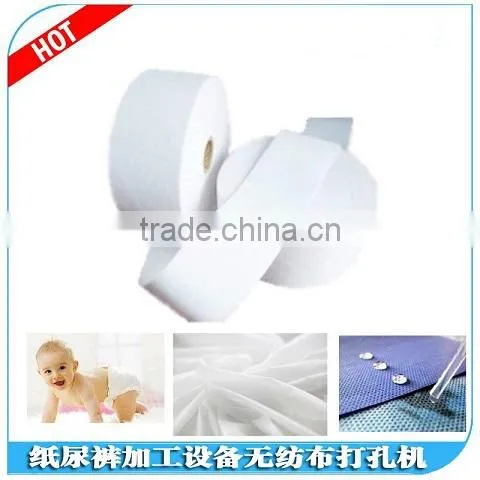

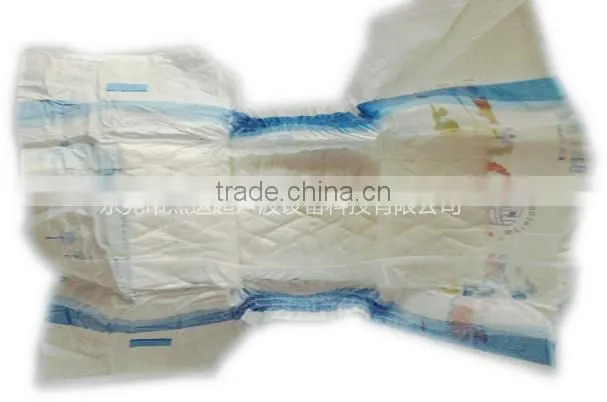

2, applicable industry: infants and young children and adult disposable diapers, women's health supplies, beauty salon, disposable face towels, kitchen cleaning cloth towel, wet towel fabrics and so on.

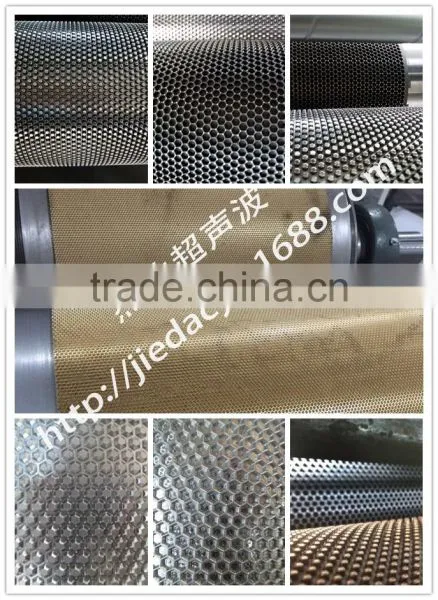

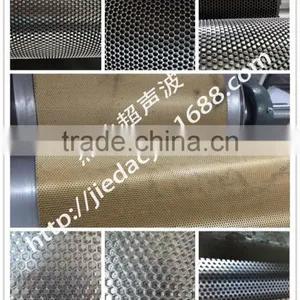

A variety of pass flower roller (customizable)
welcome to contact us for more information
Attn:Aimee
Skype:jiedacsb
Trade manager:cn1001728897
Tell:86-769-87939213
Fax:86-769-87865240
Mob:86-18926845198
Send Inquiry to This Supplier
