Specifications
cnc router 3 pieces 3kw spindle motorSUDA FPGA controlling system
good for multifunction
motion speed can be 40m/min
SUDA Multidtage cnc router with three spindle motor---MG1630C
Application:

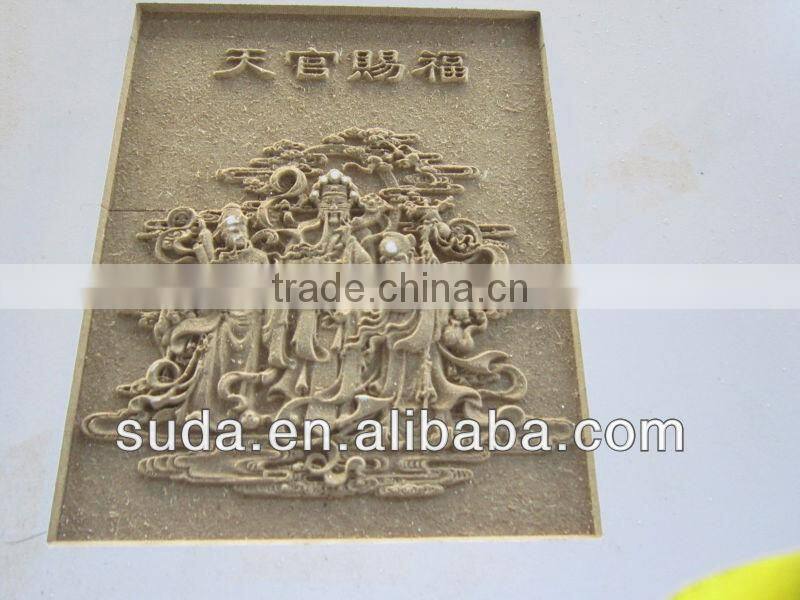

Applicable to process kinds of non-metal materials, such as MDF, solid wood and artificial marble etc. Can be used to process composite gate, 3D ornamental
engraving, article photo frame and clocks and watches frame etc. Can make complex 2D cutting and 3D engraving for the
above products.
Technical data:
working travel |
X axis |
1300MM |
Y axis |
2500MM |
|
Z axis |
210MM |
|
working table |
|
1220MM*2440MM |
Maximum moving speed |
X axis |
30M/min |
Y axis |
30M/min |
|
Z axis |
20M/min |
|
servo type |
X axis |
Panasonic750W |
Y axis |
Panasonic750W |
|
Z axis |
Panasonic750W |
|
spindle |
number of spindle |
3 |
spindle power |
3.0KW |
|
spindle rev.(max) |
1800rpm |
|
tool diameter |
MaxΦ12.7 MinΦ2 |
|
vacuum pump(optional) |
brand |
Moporo |
power |
5.5KW |
|
air suction volume |
140M3/H |
|
power supply |
380V 50HZ 3 phase 50HZ |
18KW |
controlling system |
|
FPGA |
Machine size |
floor area |
3100MM*2200MM |
machine height |
2000MM |
|
machine weight |
2100KG |
