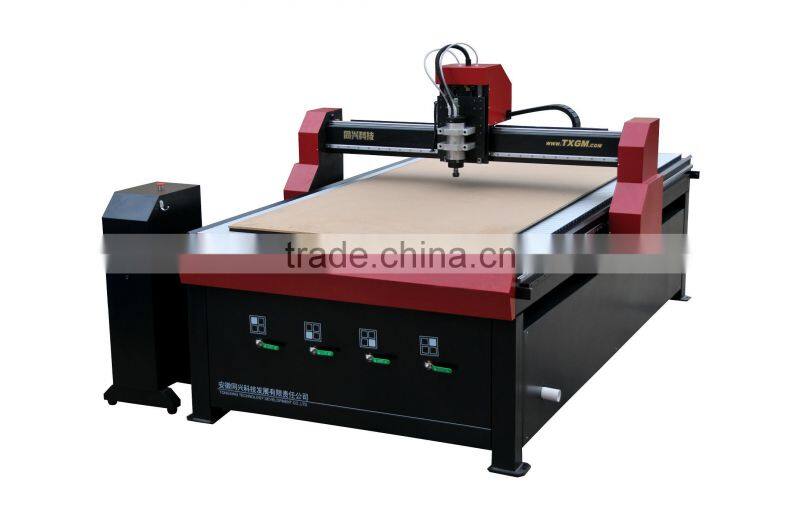

Suda VG1325 high speed high accuracy CNC ROUTER Engraver Wood CNC Machine

MODEL

1

XY Guide

By gear rack transmitting ,THK linear rail from Japan WITH CLOSED DUST COVER

2

Table size (mm)

1300*2500*150

3

Z Guide

grinding screw from Germany, THK linear rail from Japan WITH CLOSED DUST COVER

4

XYZ movement (mm)

1300*2500*150

5

Spindle power

3KW  SPINDLE MOTOR COOLED BY AIR

6

Spindle speed (min/max)

0 - 18000 U/Min

7

Machine dimension (cm)

1300*2500*150

8

Weight (kg)

880kg

9

Power consumption without spindle

Power consumption without spindle

10

Spindle Speed max.

0~18000rpm

11

Working speed max.

0-30000mm/min

12

Stepper or servo motor?

hybird servo motor,can optional  panasonic servo motor from japan

13

XYZ accuracy

 0,04mm

14

Reposition accuracy

0.11mm

15

XY resolution

0,025mm

16

Z resolution

0,025mm

17

Table surface

Aluninum T-Slot table ,can optional vacuum system

18

XY drive configuration

 Gear and rack transmitting

19

Z drive configuration

 screws

20

Included Software

ROUTER 8 english from France shipping with the machine

20

Software Compatible with

 Win98/Win2000/XP

21

Spindle collet

 ER25

22

Software transmission language

G-Code, HPGL

23

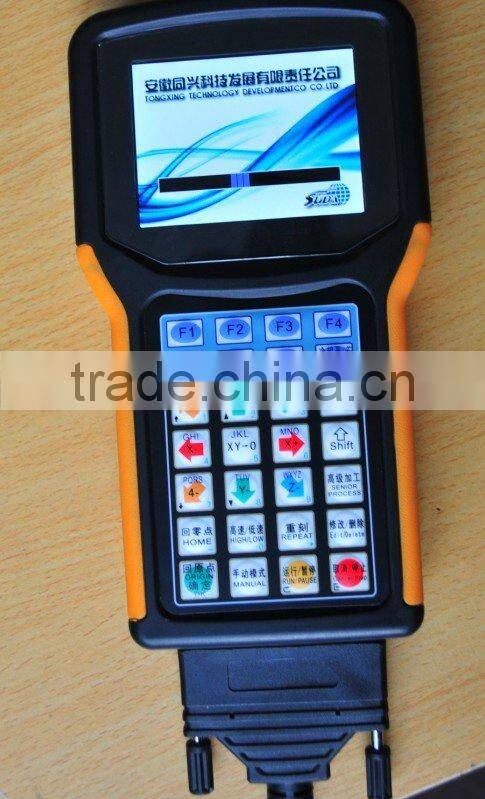

Control  System

ADVANCED FPGA COLORED LCM CONTROLLING SYSTEM, INDEPENDENT POWER SUPPLY,RAPID CALCULATION

24

Interface

Transimt the file from USB flask disk  directly

25

Voltage

380VAC/50-60Hz

26

Running environment

0-35°C, humidity: 10-70%

27

Production time

15 working days when we received all the payment by T/T

27

Optional

Dust collector with dust catcher ;Servo system ;Vacuum system
