Specifications
FPGA colored LCM control systemintegral iron-cast frame
800W air cooling spindle motor
THK linear rail

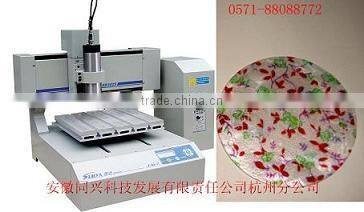

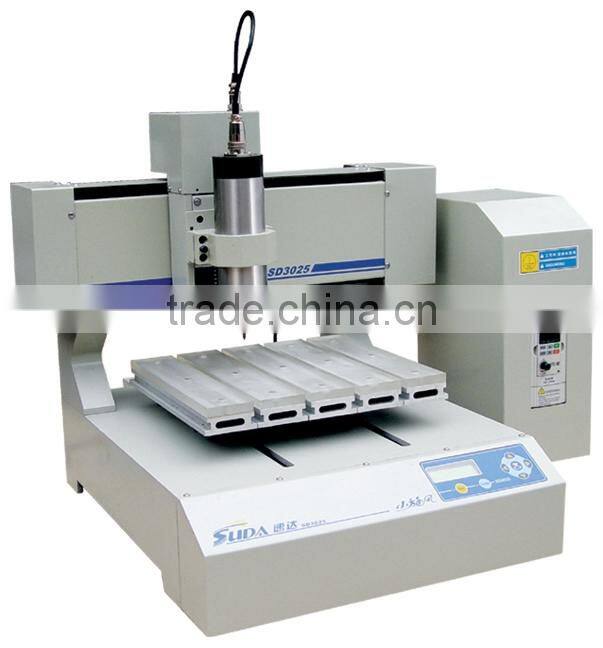

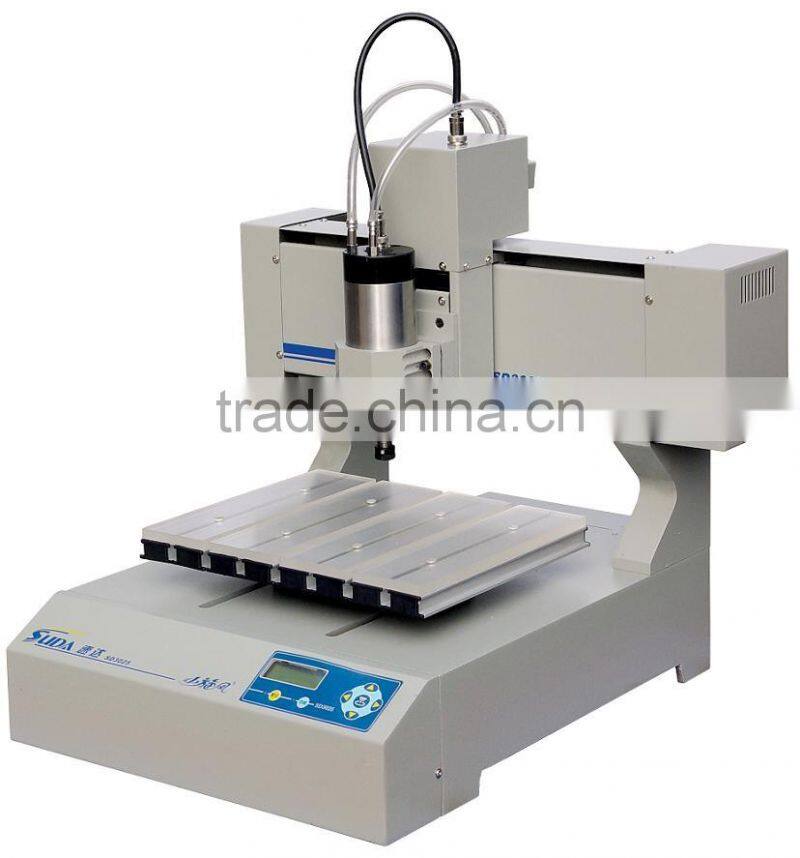

Cheap SUDA 800W spindle motor CNC metal milling&Engraving machine Integral cast-iron frame
- 800w high speed air cooling spindle motor
- Adopt the most advanced FPGA colored LCM controlling system
Model |
SD3025s |
XY Guide |
Rolling ball screw from Germany and imported linear rail to keep more accuracy |
Table size (cm) |
30*25 |
Z Guide |
Rolling ball screw from Germany and imported linear rail to keep more accuracy |
XYZ movement (mm) |
300 x 250 x 40 |
Spindle power |
800W |
Spindle speed (min/max) |
6000 - 24000 U/Min. |
Machine dimension (cm) |
56*54*59 |
Packing dimension (cm) |
Machine body-640*620*670;controller 460*410*1120;machine cabinet770*770*820 |
Weight (kg) |
185KGS |
Power consumption without spindle |
More than 1000W |
Speed max. |
0-100mm/s |
Working speed max. |
100mm/s |
Stepper or servo motor? |
Stepping motor |
XYZ accuracy |
0,04mm |
Reposition accuracy |
0,01mm |
XY resolution |
0,025mm |
Z resolution |
0,025mm |
Table surface |
Cast iron table which with water cooling system |
Inveter |
Danfoss holip frequency converter from Denmark |
XY drive configuration |
roll screws |
Z drive configuration |
roll screws |
Included Software |
Type3 V4.3 english |
Software Compatible with |
Win98/Win2000/XP |
Spindle cooling system |
water cooled |
Spindle collet |
ER11 |
Tools |
10pcs for engraving and cutting &milling |
Control system |
CNC Controlling system :DSP/SUDA handle |
Software transmission language |
G-Code, HPGL |
Interface |
Transmit the file from network cable |
Voltage |
220VAC/50-60Hz |
Running environment |
0-35°C, humidity: 10-70% |
Production time |
One week when we received all the payment by T/T |
Colour |
Can optional |
