Specifications
1.CNC WOOD ENGRAVER MACHINE2Rolling ball screw from Germany
3.1.5kw spindle motor
4all axis imported linear rail
5.CE

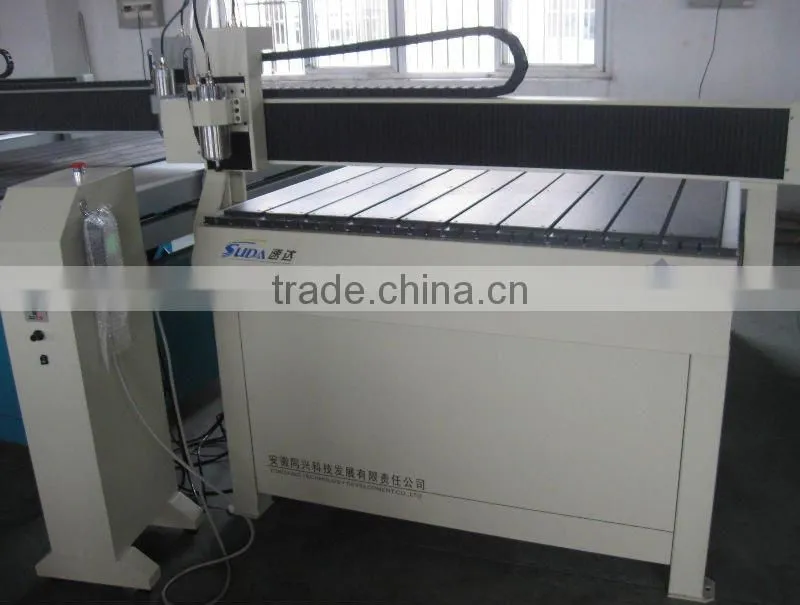

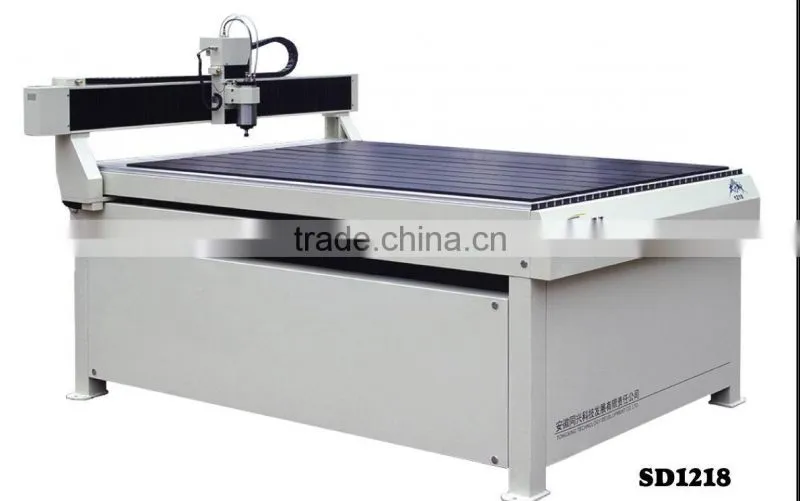

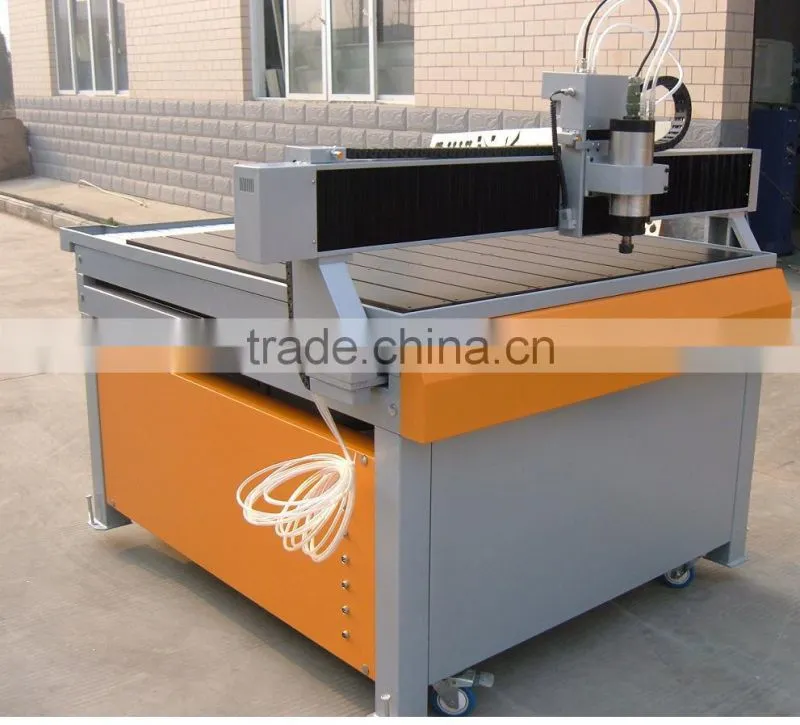

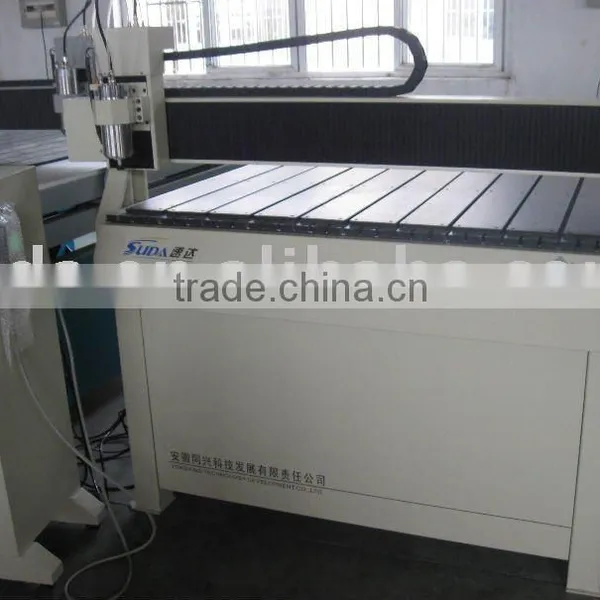

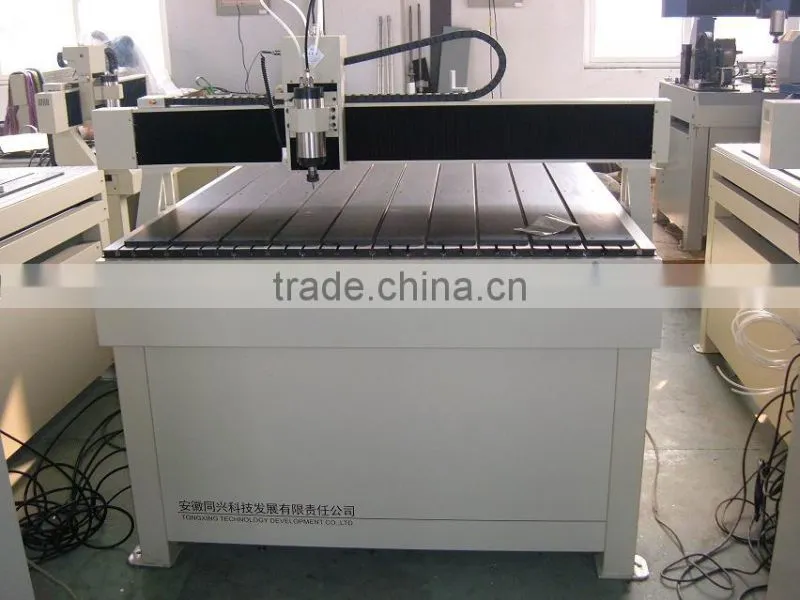

WOOD CNC WOOD ENGRAVER MACHINE
Specifications
SUDA SD1325 Most suitable for Advertising making
Rolling ball screw from Germany
CE prove
Distinguish Features FOR SUDA POWERFUL CNC ROUTER :
· Stiff: integral cast-iron frame ,embedded linear ,much more stable and solid
· Accuracy :rolling ball screw from Germany ,two nut eliminating clearance ,advanced fixing mode of three bearings
· Strong :configured 2.2kw inverter-driven spindle motor cooled by water
· Superior :adopt the most advanced FPGA controlling system
Application

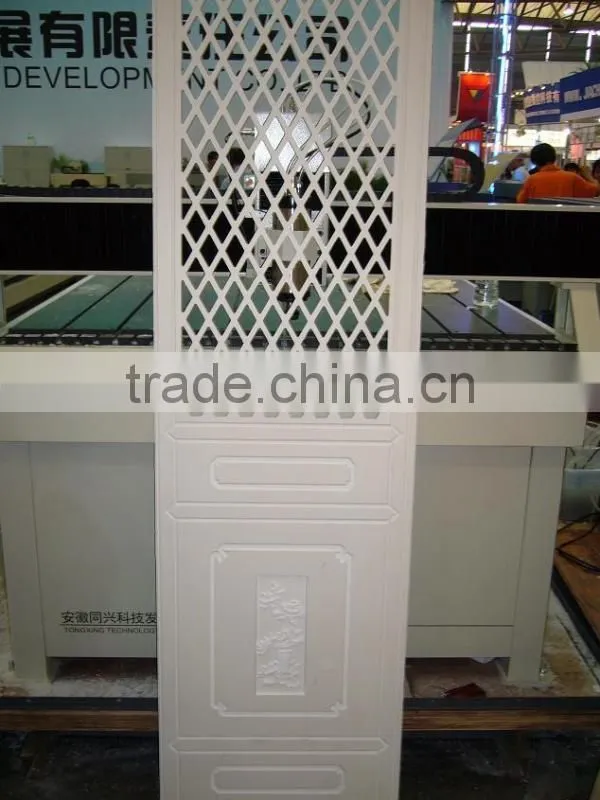

· Strong functions ,easy operation ,sturdy ,durable ,reliable performance ,reasonable price ,wide application ;can be applied to process any wood products ,sign boards ,bill plates ,chest brands ,seals ,metal foil molds ,construction moulds ,instruments panel, woody products ,industrial moulds .Any metal or non-metal material can be processed ,for example ,iron ,copper ,aluminum ,plastic and wood plates etc .
Servo system (optional)
Dust collecting System (optional )
Vacuum System (optional )
Note:Any changes of technical parameters without notice
Model |
SD8070 |
SD1212 |
SD1218 |
SD1325 |
SD1630 |
SD2030. |
Working Area |
700*800*90mm |
1200*1200*90mm |
1200*1800*90mm |
1250*2500*90mm |
1550*3000*90mm |
2000*3000*90mm |
Spindle Motor |
2.2KW inverter-driven spindle motor cooled by water |
|||||
Engraving Speed |
6000-1200mm/min |
|||||
Rotation Speed of Spindle |
0-24000rpm |
|||||
Engraving Tool |
3.175, 4, 6 (optional) |
|||||
Format Dictate |
HPGL,G-code |
|||||
Ball Screw |
Two-nut rolling ball screw from Germany |
|||||
Resolution |
0.01mm |
|||||
