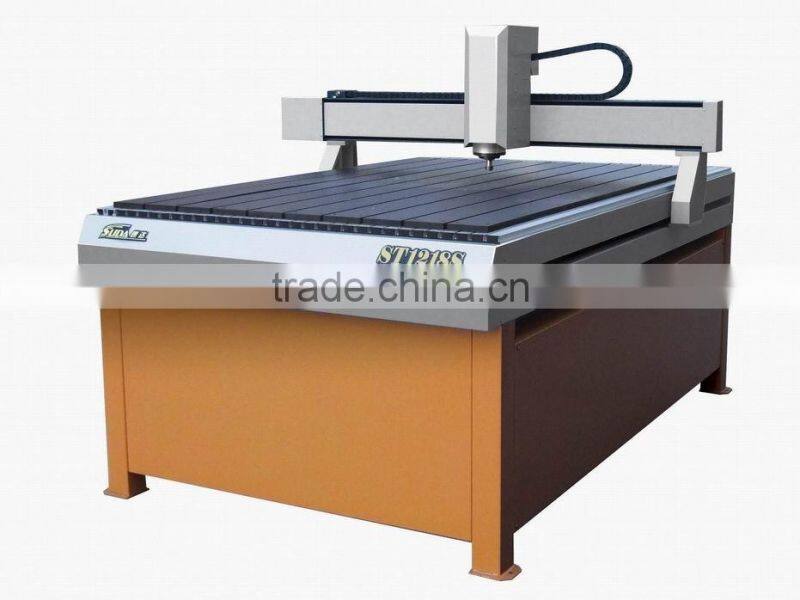

Help CenterSUDA High Accuracy Woodworking Machinery
Related Products
-
SUDA Speedy Metal Cnc Router Machine CNC ENGRAVER CNC CUTTERNegotiableMOQ: 1 Set -
Sell HEFEI SUDA CNC EngraverNegotiableMOQ: 1 Piece
-
Metal CNC Router- FOR MOULD ---SD1208NegotiableMOQ: 1 Piece
-
SUDA ST Metal& Wood Cnc Router Machinery CNC CUTTER CNC ENGRAVERNegotiableMOQ: 1 Piece
-
SUDA High Accuracy CNC Router SV1325NegotiableMOQ: 1 Piece
Specifications
FPGA controlling systemTHK liner rail from Japan
3kw spindle motor cooled by water
Intergral iron cast frame
CE ,ISO9000
Technical Description |
ST 1218 |
Machine Body: |
Cast Iron for machine body, bedframe is hard steel structure |
Surface (machine bed): |
T-Slot Aluminum with PVC table, |
Operating Area X/Y/Z: |
1200 x 1800 x 90 mm (optional Z-Axis > 90mm ,max 150mm) |
Machine dimensions: |
2310*1625*1337mm |
Table Size (Foot Printing): |
1290*2050mm |
Throughput: |
90 mm (the material thickness can put under the gantry) |
Axis Guides: |
Linear Square Guides(from japan THK BRAND ) for all axis |
Axis Drives X/Y/Z: |
Ball Bearing Screws (d=25mm / Pitch=10mm for X,Y axis,For Z axis, the d=16mm, pitch 5mm) |
|
Drive system:
|
Stepper motor, bipolar driven Full-, Half- and Microsstep able |
Max. Positioning Speed: |
12m/min |
Max. Operating Speed: |
8 m/min |
Positionioning Accuracy: |
±0.02 mm |
Repeat Accuracy: |
± 0.03 mm |
Resolution: |
0.01 mm |
Computer Operating System: |
Windows 2000/XP/7 |
Software: |
Original Type3 software V4.3 |
|
Control Software:
|
SUDA FPGA NC Controlling system |
|
Spindlemotor, Power: -> water cooled -> Variable Speed Control via Frequency Inverter |
3 KW (collet size : ER20) Water cooled 0 - 24.000 RPM 3.7 KW |
Blade Diameter: |
Standard Φ3.175mm, Φ6mm Optional: Φ4mm,Φ8mm, Φ10mm,Φ12,7mm |
|
Command Code:
|
G-Code (DIN 66025, *.nc) HPGL-Code (*.PLT) |
Power Source: |
AC 220V/50Hz standard machine |
Net Weight: |
≈ 680kg |
Shipping Weight: |
≈ 790kg |
Shipping dimensions: |
≈ 1730(W) x 2370(L) x 1650(H) mm (≈6.77 m³) |
Vacuum plate: |
Optional (will use chinese pump) |
Other Options… |
Vacuum system USD2000 dust collector USD400 servo system (Use panasonic servo motors and drivers USD2000) Water cooling system USD400 (cooling the tools when working on metal ) |
