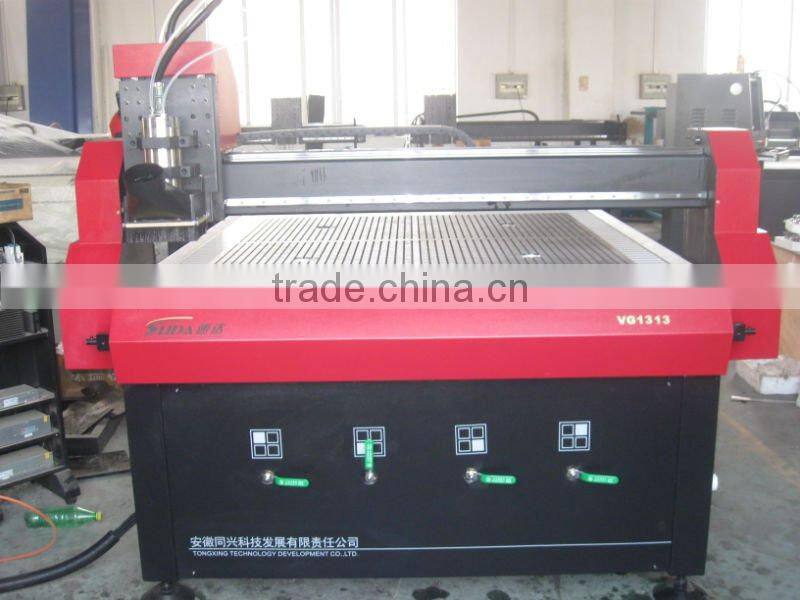

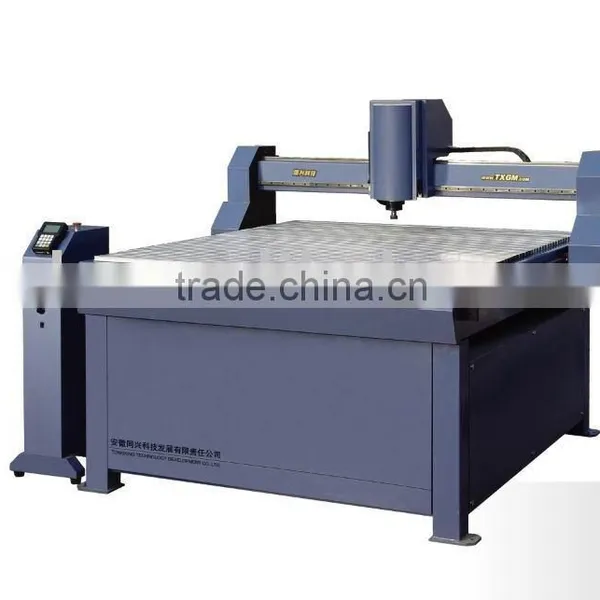

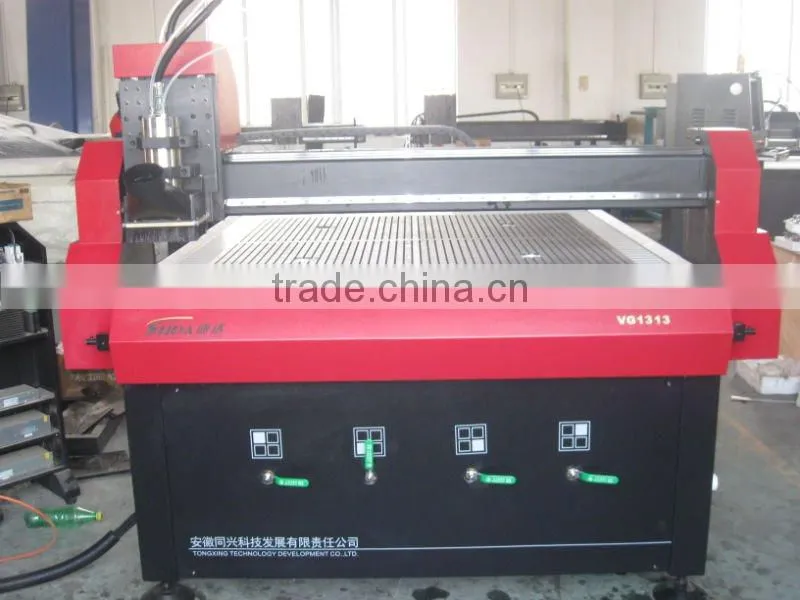

Suda Large Format ENGRAVING MACHINE VG1313

POLYWOOD CASE

Specifications

configuration :

·FPGA controlling system

·Optimization on mechanical and electrical design, motion speed can be up to 30m/min(leading speed in the line)

·THK guiding track made in Japan to ensure more accurate and stable operation

·Spindle head features:

·Configure 2.2kw spindle motor for VG1313, VG1318, 3kw spindle motor for other types. more powerful, high efficiency

·if any required , we can equip more powerful spindle motor

·Constant power, assure of powerful working under any turning speed

·Independent control cabinet, safety and convenient

·4G memory capacity, can transmit files directly from USB Flash Disk

·Functions of restoring from power off can shop machine running when power off, and then resume to work when power on,and also can save break point from which for later operation to start

·Driver Device divided by 16 equivalents, high speed, be good at processing curve line

·may optionally configure Panasonic servo motor

·may optionally configure device of auto-changing tools

Features: High Speed: can process curves and straight lines simultaneously at the speed of 30m/min

Large memory: standard allocation of 4G to support transmitting data by USB flash Disk directly simultaneously, which can save massive processing files for your choice.

Quick transmitting: USB Interface can ensure process off line of computer without occupying resources.

Multi-compatibility: be compatible with various CAD/CAM software as Type3/Artcam/Casmate/Proe/Artcut, etc.

Convenient operation: restoring function enable the machine stop running automatically when power off, and then automatically resume to work when power on, and also can store the break point

Application : Applicable to process and make any woody products, furniture processing, plastic forming machine molds, sign boards, bill plates, chest brands, seals, metal foil moulds, construction molds, instrument panel and industrial moulds on the materials such as many metal or non-metal material, for example, wood plates, iron, copper, plastic etc.

Packing size of machine: 1980*1980*1800mm

Packing size of dust collector: 580*610*1060mm

Packing size of vacuum pump: 780*780*850mm

Gross Weight: about 780kg
