Home > Products > SUDA Advertising cnc router ,cnc engraving machine > SD 1218 CNC ROUTER MACHINE

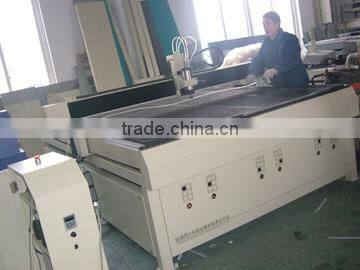

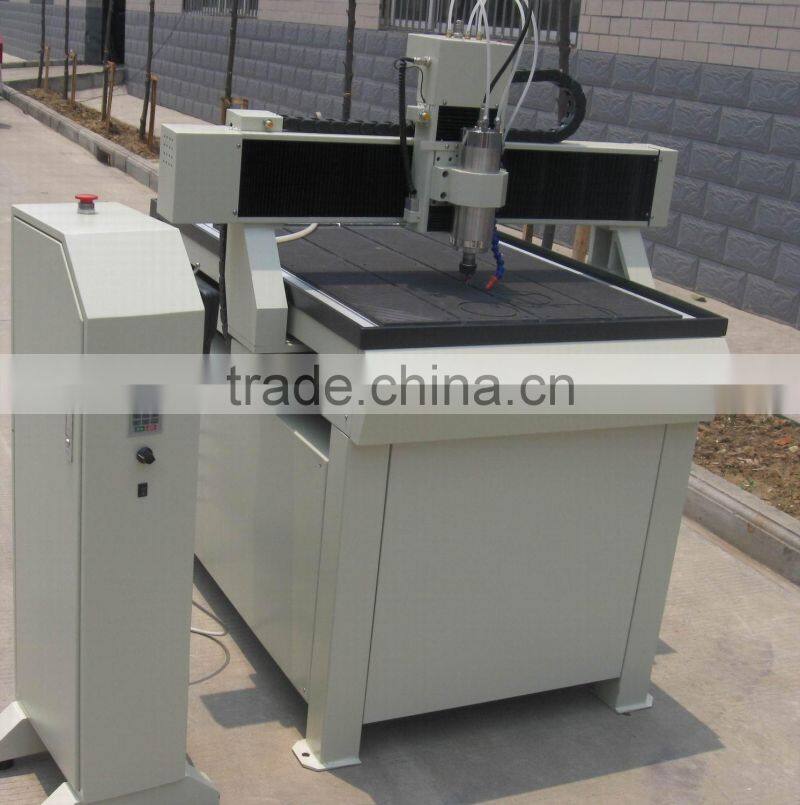

SD 1218 CNC ROUTER MACHINE
- 50 Set / Sets per Month
- shanghai
- Credit Card
Product Details
Place of Origin: | Anhui, China | Brand Name: | SUDA | Model Number: | SD1218 |
Rated Power: | 2.2KW | Engraving Speed: | 8m/min | Main Axle Rotational Speed: | 24000 |
Feeding Height: | 80 | Milling Cutter Diameter: | 3.175 6mm | Application: | cutting and engraving |
Dimensions: | 1200*1800*90 | Weight: | 580kgs |
Packaging Details
plywood case
Product Description
Specifications
SD 1218 CNC ROUTERINTEGRAL CAST-IRON FRAME
ROLLING BALL SCREW FROM GERMANY
HIGH ACCURACY
CE
SD 1218 CNC ROUTER
First,advantage of products
l Stiff: integral cast-iron frame,embedded linear,much more stable and solid
l Accuracy: rolling ball screw from Germany,two nut eliminating clearance,advanced fixing mode of three bearings
l Strong: configured 2.2KW inverter-driven spindle motor cooled by water
l Superior: adopt the most advanced DSP controlling system
Second,application
l Applicable to process and make any woody products,sign boards,bill plates,chest brands,seals,metal foil moulds,construction models,instrument panel and industrial moulds or dies on the materials such as many metal or non-metal material,for example,iron,copper,plastic and wood plates,etc.
Thrid,distinguished features
l High speed: can process curves and straight lines simultaneously at t he speed of 12m/min (optional)
l Large memory:standard allocation of 128M which can save 30 processing files simultaneously for your choice
l Quick transmitting:Adopt advanced USB interface,can work without computer,not occupy any resources
l Multi- compatibility:Be compatible with various CAD/CAM software such as Type3 /Artcam/Casmate/CAXA/Artgrave
l Convenient operatiion:Owning the functin of restoring from power off,continuation on break point,anticipating working time,auto-feeding blades,friendly designing
Last,technical data

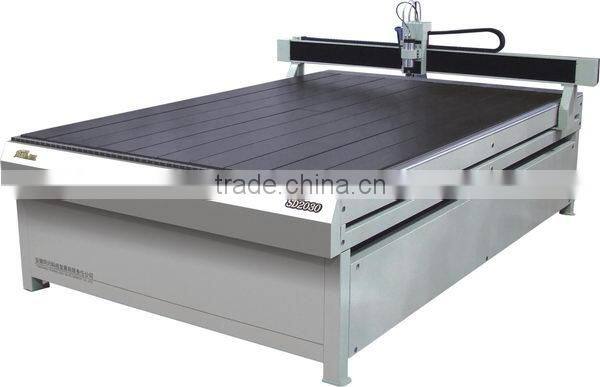

Model | SD8070 | SD1212 | SD1218 | SD1325 | SD1630 | SD2030. |
Working Area | 700*800*90mm | 1200*1200*90mm | 1200*1800*90mm | 1250*2500*90mm | 1550*3000*90mm | 2000*3000*90mm |
Spindle Motor | 2.2KW inverter-driven spindle motor cooled by water | |||||
Engraving Speed | 6000-1200mm/min | |||||
Rotation Speed of Spindle | 6000-24000rpm | |||||
Engraving Tool | 3.175, 4, 6 (optional) | |||||
Format Dictate | HPGL,G-code | |||||
Ball Screw | Two-nut rolling ball screw from Germany | |||||
Resolution | 0.01mm |
Optional:
n Servo system
n Dust collecting system
n Vacuum system
Company Profile
Tongxing Technology Development Co., Ltd. is located in one of the Chinese Science & Technology Cities, Hefei City. Since foundation in 1992, we have been researching and developing digital products in advertising and mould processing, and have been a very manufacturer in advertising equipment.
Our main products range is as follows: Suda vanguard series CNC engraver, Suda powerful CNC engraver, Suda luck series CNC engraver, Suda laser engraver, Suda cutting plotter, Suda afflatus cylinder CNC engraver, Suda plasma cutting machine.
We have superior staff adhering to the motto of Sincere Operation. The style of designing delicate products has been accepted by customers both at home and abroad. Our products have been exported to many countries and regions such as South-east Area, the Middle East, Europe and America.
Tongxing is willing to cooperating with you based on mutual benefits based on brilliant future.
