Specifications
Italy 10kw spindle motor cnc router machineheavy machine body cnc router
powerful YASKAWA driving system
Japan linear rai

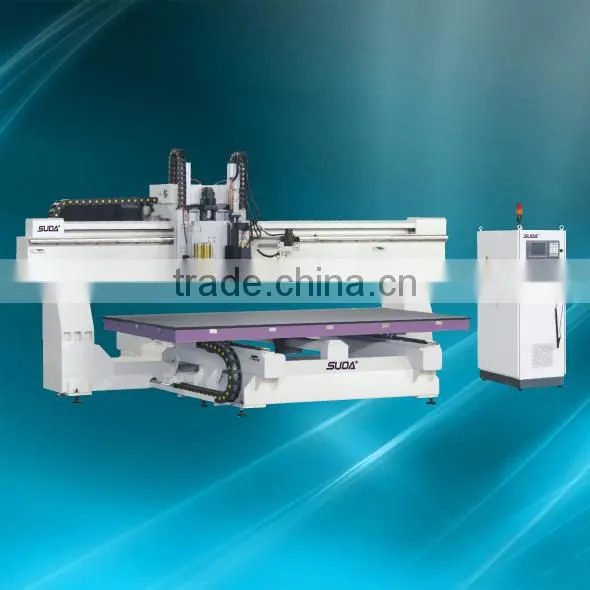

Cnc Router Woodworking Center 1325/table Moving Cnc Woodworking Router For Furniture
cnc router features :
2.1:
Fixed beam gantry with frame structure, with super thick steel materials, heavy body, design
professional engineering mechanical structure & dynamic design, high temperature tempering,
enhance the rigidity of the machine tool, reduce the deformation rate of equipment of heat,
improve the stability and the processing precision of machine tool
2.2:
The z axis adopt imported high precision grinding of ball screw, x,y with high accuracy helical
gear ,with imported linear guide rail, make the machine run more smoothly, even in high speed
movement and also from concussion
2.3:
Equipped with professional vacuum system, using the whole cast adsorption base, with high
strength, high toughness of specialized material surface, forming at one time, and adopt
imported "Beck" professional vacuum pump from German, strong adsorption capacity,
high working efficiency, and can be matched with mobile vacuum suction workpiece
2.4:
imported high power spindle motor from Italy, axial runout small, strong cutting force, long
service life, low noise. And with imported Geneva Type tool library, more tools, high speed
2.5:
Industrial control system, professional and perfect function, stable performance, strong
compatibility of software
2.6:
Thousands of classification precision hidden non-interference automatic tool setting, an operation can finish the whole database tool, automatic
lifting suction head, automatic oil supply system, the use of more convenient, more simple
maintenance.
cnc router main data :
Item |
HD3316 |
HD3120 |
|
Working size |
3800*2050*320mm |
3800*247000*320mm |
|
Table size |
3050*1050mm |
3050*19400mm |
|
Max. Travel speed |
X axis-40m/min, Y axis-40m/min Z axis -20m/min |
||
Transmitting |
All axis with rolling ball screw |
||
Servo type |
Japan YASKAWA |
||
Spindle |
Italy 10KW ATC spindle motor |
||
Spindle rev. |
18000-24000rpm |
||
Vacuum table |
Matrix vacuum table |
||
Pump type |
Becker from Germany (optional) |
||
Tool type |
Geneva type |
||
Tool magazine |
8pcs(10pcs,12pcs is optional) |
||
Controlling system |
SYNTEC(OSAI is optional) |
||
Voltage |
380V/3PH/50HZ |
||
Machine size |
4800*2800*3200MM |
4800*3200*2200MM |
|
Weight |
5800KG |
6900KG |
|
cnc router application :
Applicable to process kinds of plate material, such as MDF, shaving board, PVC, fire-proof board, blockboard, engineering plastic, epoxy resin, wood, artificial stone, PP, PE, PS, ABS and
other materials, widely used in furniture, paint the door, solid wood doors, cabinets, bathroom cabinets,
doors and windows and chairs
industries
cnc router samples
