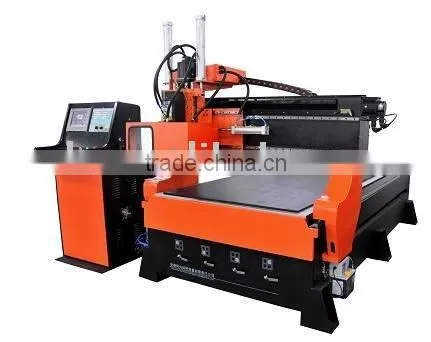

Help CenterSUDA High Performance ATC CNC Engraver SG1325H
Related Products
-
HEFEI SUDA Rack and Pinion CNC Router TABLE ROUTER --SG1325US$ 19,800 - 40,000MOQ: 1 Set -
HEFEI Suda SG1325/1630 Wood Cnc Router High Precision Cnc Router Wood Working Machine High Speed Cnc Engraver MachineryNegotiableMOQ: 1 Set
-
HEFEI Suda High Performance CNC Engraver Wood Chipper Machine--SG1325US$ 23,200 - 25,200MOQ: 1 Set
-
HEFEI SUDA Wood Working Machinery Automatic Tool Changed Engraver--SG1325NegotiableMOQ: 1 Piece
-
SELL SUDA High Performance CNC Engraver SG1325US$ 18,500 - 25,000MOQ: 1 Set
Specifications
Integral Iron-cast frame.THK linear rail from Japan.
Italy 7.4KW Colombo ATC spindle motor.
Circular tool change.
SG1325H CNC Router specifications :
1. working area : 1300*2500*300mm
2. Integral Iron-cast frame, aging treatment, much solid and rigidity machine body
3. Import advanced controlling system, separate units control, operated by keyboard, much stronger function
4. THK linear rail from Japan
5. Imported high speed, mute-like rolling ball screw , stability, precision, rapidity
6.Italy 7.4KW Colombo ATC spindle motor
7.Imported AC power supply servo driving .
8.Automatic oil lubricating system, easy maintenance, prolong lifetime of transmitting parts.
9. Circular tool change, 8pcs tool magazine capacity, 10 or 12 pcs tools as optional
General characteristics | ||
Model |
SG1325SH |
|
xyz Working stroke |
1300 mm x 2500 mm x 300 mm |
|
Max. thickness of material |
310 mm |
|
xyz resolution |
0.005mm |
|
Motion Speed |
35m/min |
|
Software |
ARTCAM, Type3, Casmate, Proe, UG, Artgrave ect. |
|
Dictate format |
HPGL, G-code |
|
Warranty |
12 months since shipping date |
|
Technical characteristics | ||
Power of Mainshaft |
7KW |
|
Speed of Mainshaft |
24000 U/min |
|
Diameter of cutter |
3.175~20 mm (optional) |
|
Cooling |
Air cooling |
|
Tool Change Mode |
CIRCEL auto tool change |
|
Tool magazine |
8pcs tools standard,10,12pcs tools (optional) |
|
Tool Change Time |
8 seconds |
|
Applications |
Wood working industry, furniture processing, Advertising technology, model making, electrical engineering, industry, outdoor advertising, engraving technology, illuminated advertising ect. |
|
Power supply |
AC380 ±10% 50HZ |
|
Power consumption |
9000 W |
|
Physical characteristics | ||
Measures (+Package) |
Will measures after made |
|
Weight |
2000 kg |
|
Weight (+Package) |
2300Kgs |
|
Production time |
About 20 working days upon receipt of payment |
|
Payment term |
T/T before shipping |
|
Strong functions, easy operation, durable, liable and economy. stable structure, applicable to process various Wooden products, like Solid Wood Furniture and Solid Wood Door, Decorative Panel, Computer Desk, Office Furniture, Sign Plates, Acrylic cutting, plastic molding, as well as many metal or non-metal materials as iron, copper, aluminum plates etc.
