With CE China Wuhan Dot Pin marking machine for metal nameplate
Perfect Laser's Rotary Dot Metal&mould engraving machine(dot peen marking machine) integrates computer, automatic control and precise machinery. It is industrial marking equipment which can make logo (characters, letters, VIN code, serial numbers, date and graphics) on metal or no-metal work pieces permanently.

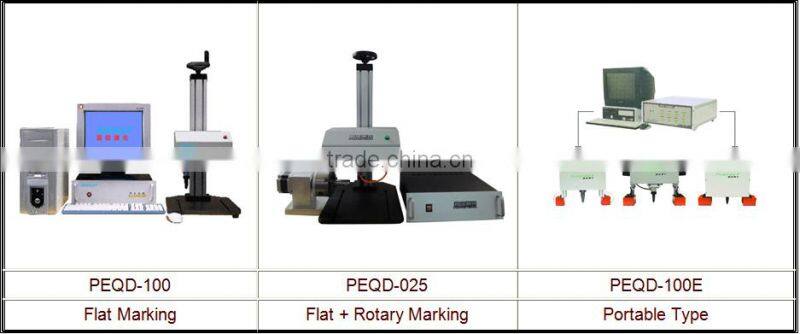

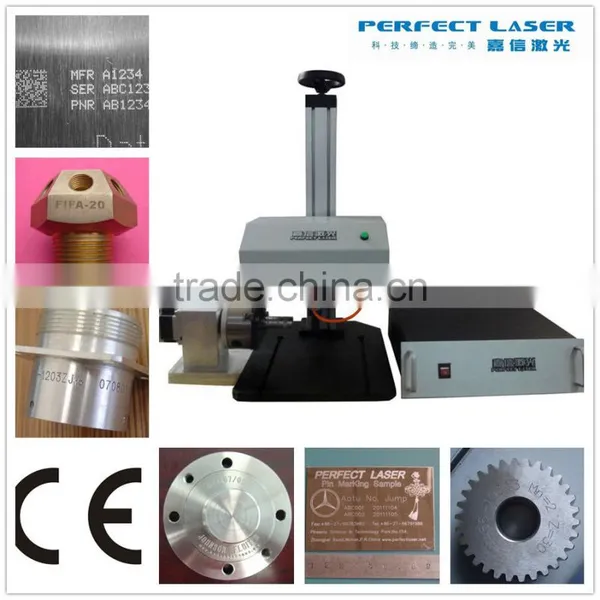

Dot Pin marking machine picture
PEQD-100/025/030

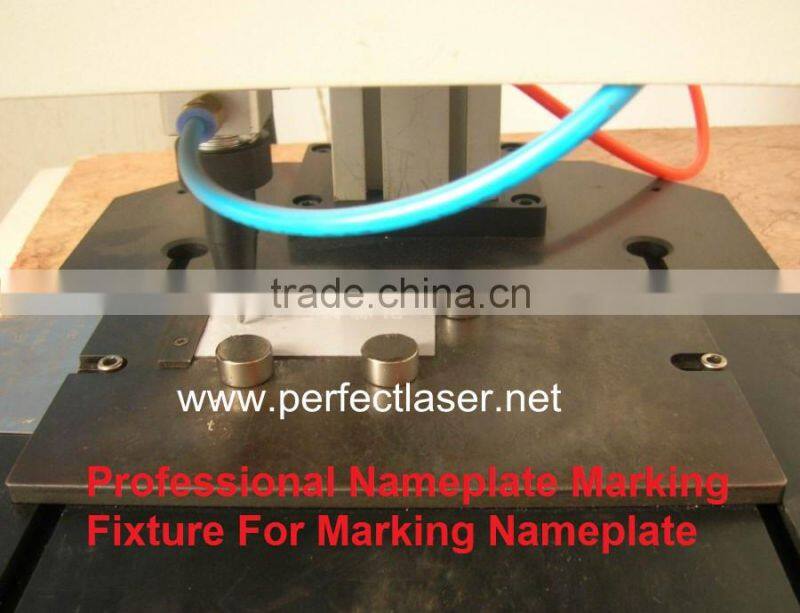

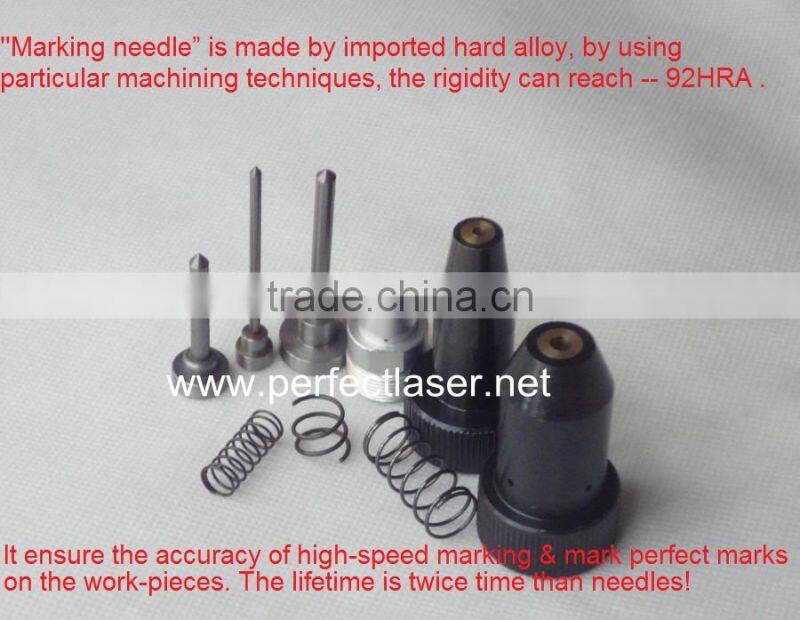

Parts of machine
Dot Pin marking machine for metal nameplate Applicable Material & Fields:
Dot Metal&mould engraving machine is both for flat surface marking and rotary marking on various kinds of metals (such as steel, stainless steel, iron, copper, aluminum, alloys, etc.) and hard non-metal labels & accessories.
Due to the rotary marking function, this model is widely used for marking characters, letters, serials numbers and VIN codes on bodywork of motorcycles, connecting rods, engines, steel pipe, cylinder and cylinder various stepper motors and mechanical parts, machine tools, metal pipes, pump bodies, valves, fastening pieces and various hard plastic products.
Product Features:
1) By adding a rotary control system on the basis of model PEQD-100, it enables flat surface marking as well as circumference marking of the work piece.
2) Applying the most widely used up-down lifting structure to realize multi-functions.
3) Controlled by computer, Perfect Laser's professional marking software has a wide application, and can operate under WINDOWS 98/2000/ XP system.
4) With powerful edit function, it can mark any logo (character, letter and graph, data code, series number, VIN code, engine numbers) automatically.
5) It can support logos and graphics designed in DXF format from AutoCAD, CorelDraw.
6) It can support multi-kinds fonts: MG Font, SHX Font in Auto CAD, CHR in Borland, and TTF in Windows.
7) Marking contents could be saved automatically and not be destroyed during power-off of the machine.
8) It can be used online to share the database and data transmission with other equipment, such as match with electronic scales, bar code machines, leak detectors and other equipment
9)Both planar and three-dimension rotary are available
Dot Pin marking machine for metal nameplate Technical Data:
Standard Marking Area |
150mm×100mm |
Optional Working Area |
200mm×100mm / 300mm×200mm / 400mm×300mm |
Marking Speed |
≤50mm/second (for characters height of 3mm or 3-4 numbers /second) |
Marking Depth |
0.1~2mm |
Lifting Range |
0-300 mm |
Maximum Fixture Diameter |
0-100mm, 0-200mm |
Repeated Accuracy |
0.01 mm |
Pin Hardness |
HRC 73 |
Power Supply |
220V±10%, 50Hz |
Machine Power |
≤400 W |
Working Environment |
-5~40 °C |
Weight |
65 Kg |

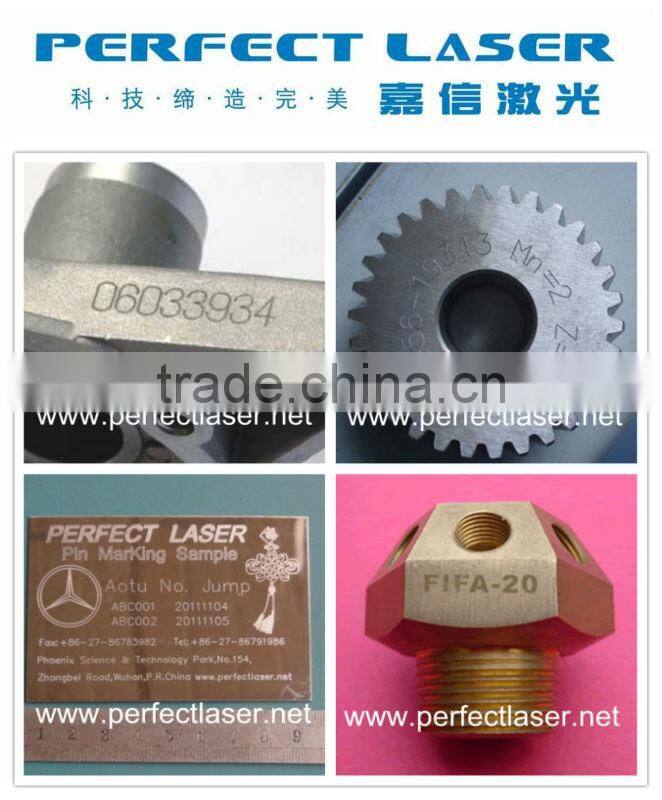

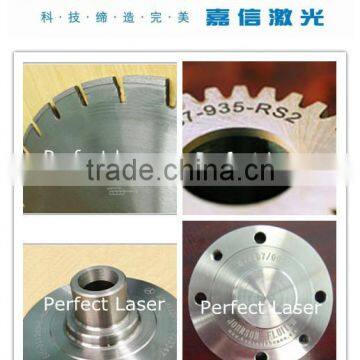

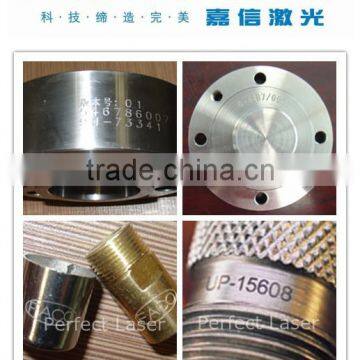

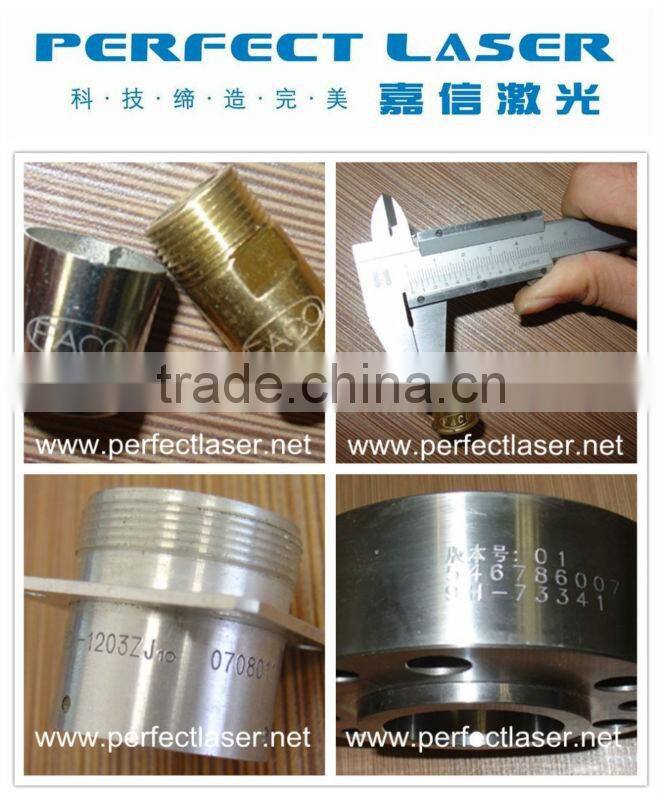

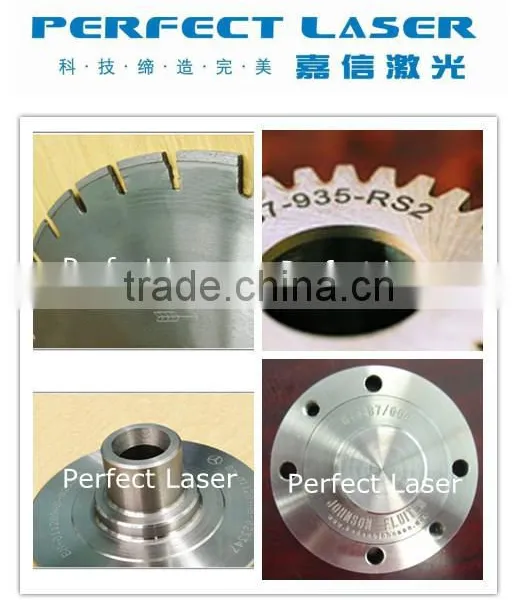

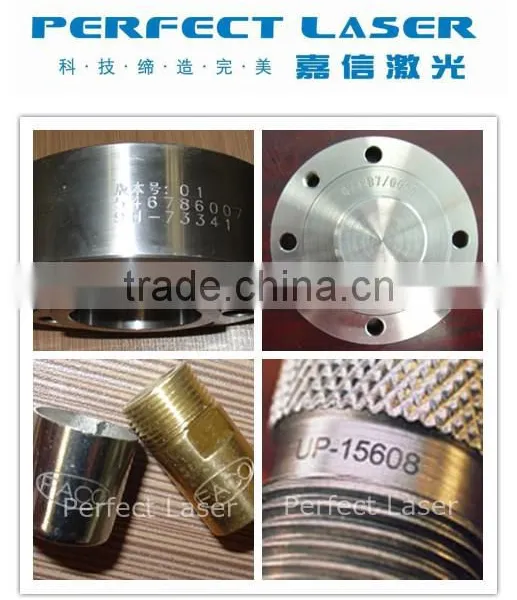

Dot Pin marking machine for metal nameplate Samples:
Video link:
1 Perfect Laser-Dot Peen Marking Machine PEQD-100: http://youtu.be/cOp2Gce-VRc
2 Perfect Laser-Dot Peen Marking Machine PEQD-025: http://youtu.be/3ykqs9LCiVM
3 Perfect Laser-Pin Marking Machine PEQD-030:
/watch?v=3ykqs9LCiVM&feature=youtu.be
Exbition Photos:
Certificate:
Training & Serice
1. 12 months Guaratee Period
2. Free Online Consulting service
3. Free Operation Training in our factory
4. Detailed Operational & Training Video in English Vision
Please advise us the following information, then we can recommend you the most suitable model. Feel free to contact to me.
