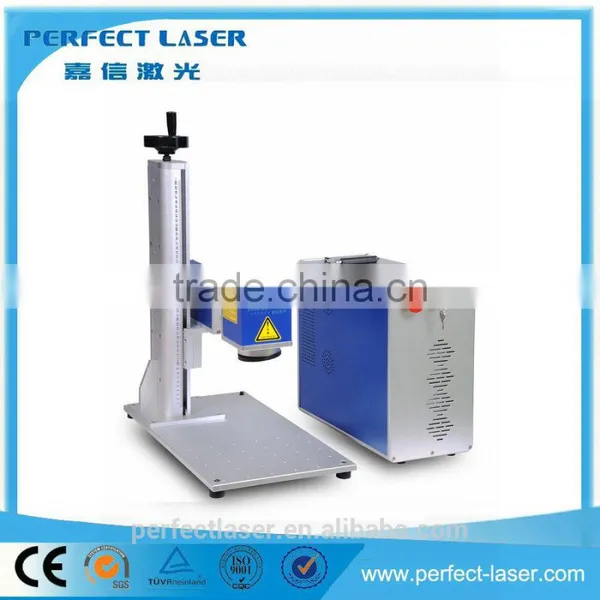

Lowest price for sale watches laser mark machine
Machine working video on You tube:

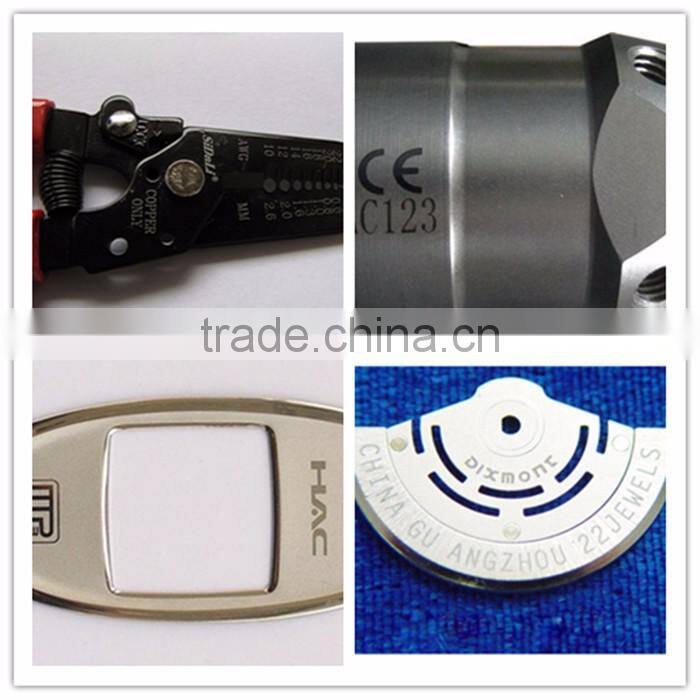

Application Field and Material:
Electronic Components : | Resistance, capacitance, chips, printed circuit boards, computer keyboard. |
Apparatus And Meter: | Panel signs, precision equipment ,etc., |
Instrument: | Panel signs nameplates, precision equipment ,etc., |
Hardware Tools : | Knives, tools, measuring tool, cutting tool, etc., |
Automobile Parts : | Pistons, piston rings, gears, shafts, bearings, clutch, lights, etc., |
Mechanical Parts : | Bearings, gears, standard parts, motors, etc., |
Daily Necessities : | Handicrafts, zipper, key holder, sanitary ware, etc., |
Jewelry Rings | Jewelry, gold, silver,etc. |
Food,drinking packing: | Plastic packings,etc. |
Product Advantages:
♦Fiber Marker is adopted international advanced technology and the working material is fiber. The diode coupling with fiber to process pump, the pump light will course the particles reverse which can emit high quality laser beam.

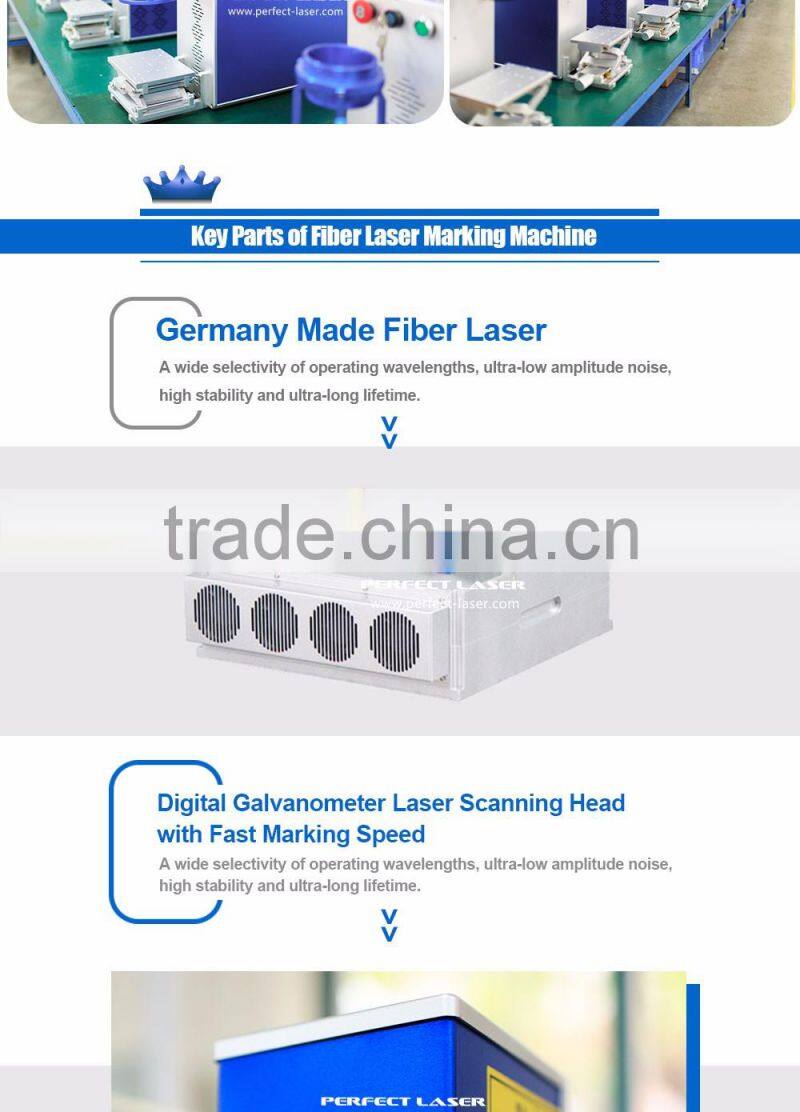

♦Perfect Laser’s Fiber Laser Marking Machine adopts international most advanced technology and the laser source is fiber with USA IPG technology, lifetime can reach 100,000 hours, 8-10 years without any consumables and maintenance. The diode coupling with fiber to process pump, the pump light will course the particles reverse which can emit high quality laser beam. This is the best choice for the customers who have special requirements to the smallest & finest laser beam and character.
♦Compact: The high-tech product, which is combined of laser device, computer, auto controller and precision machinery. It is small design and the complete weight is 22kg.
♦High Precision: Re-position precision is 0.002mm
♦High Speed: Imported scanning system makes the scanning speed is up to 7000mm/s

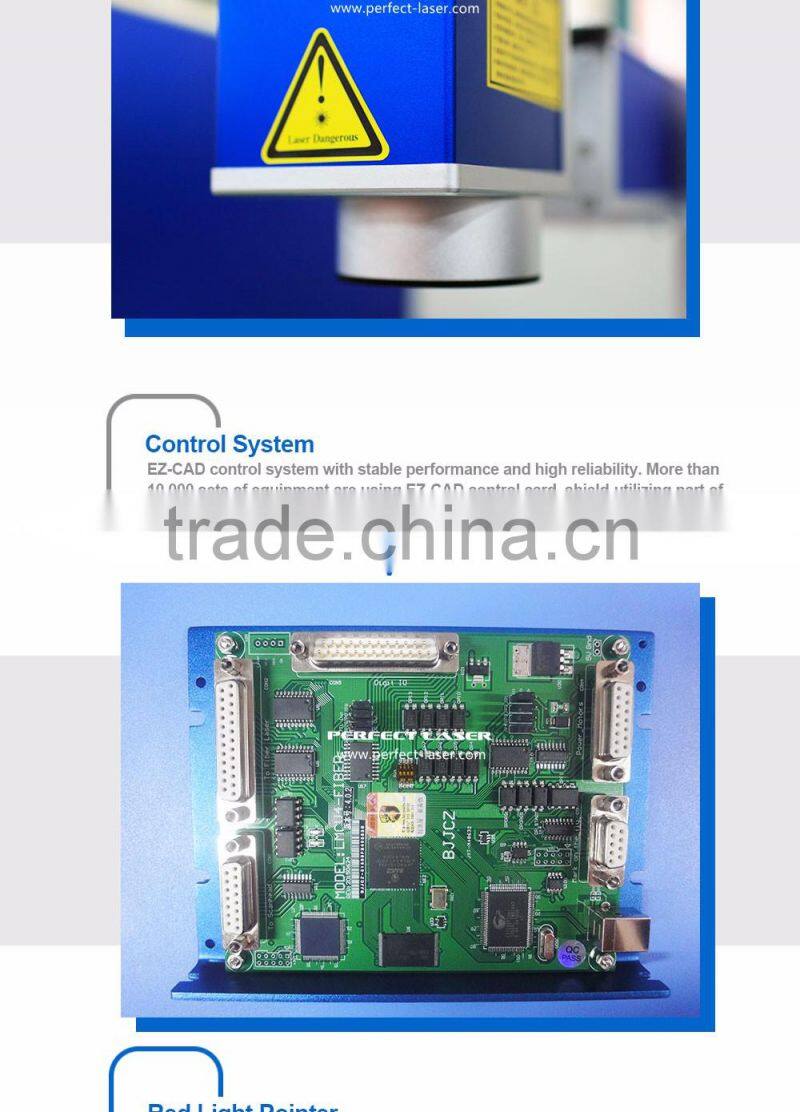

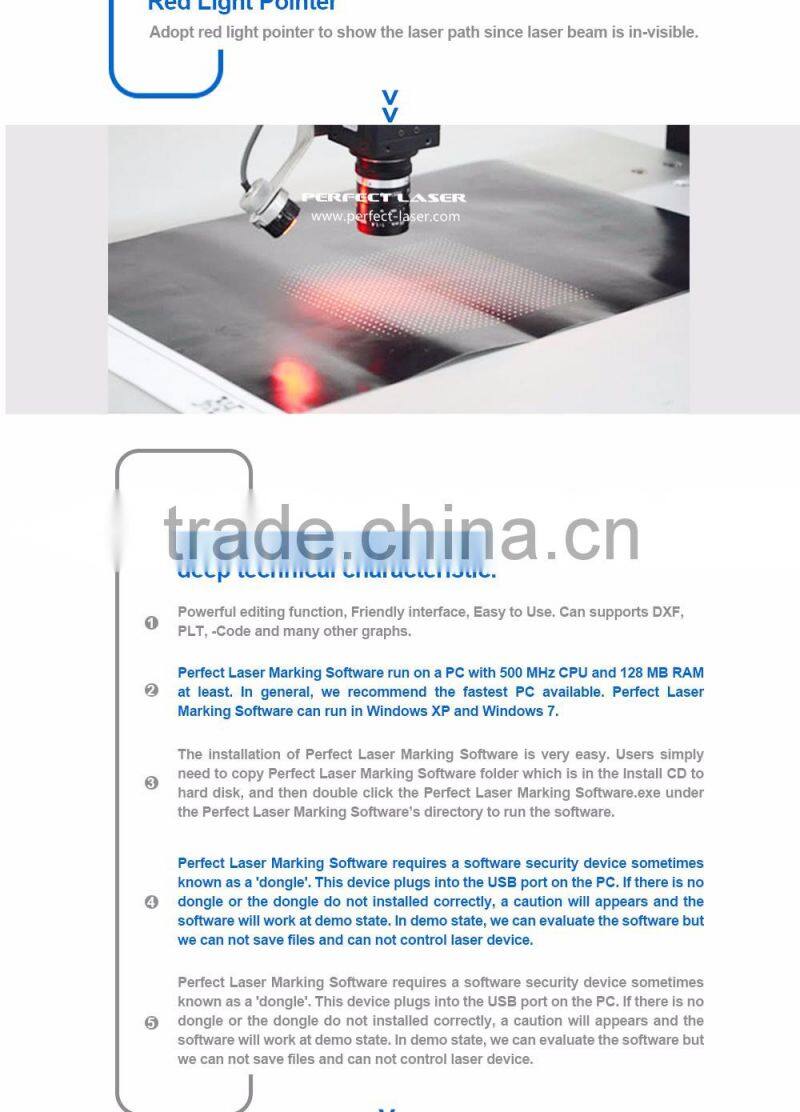

♦Easily Operating: Afford the specific marking software based on Windows, which is real-time adjust the laser power and pulse frequency. You can input and output by computer according to edit in the both of the specific marking software and the graphic software such as AutoCAD, CorelDRAW or Photoshop.
♦High Reliability: MTBF>100,000 hours
♦Energy Saving: The efficiency of optic-electrical converting is up to 70%
♦Low Running Cost: No wearing part. Free maintaining, no need to adjust the laser path.
Technical Data:

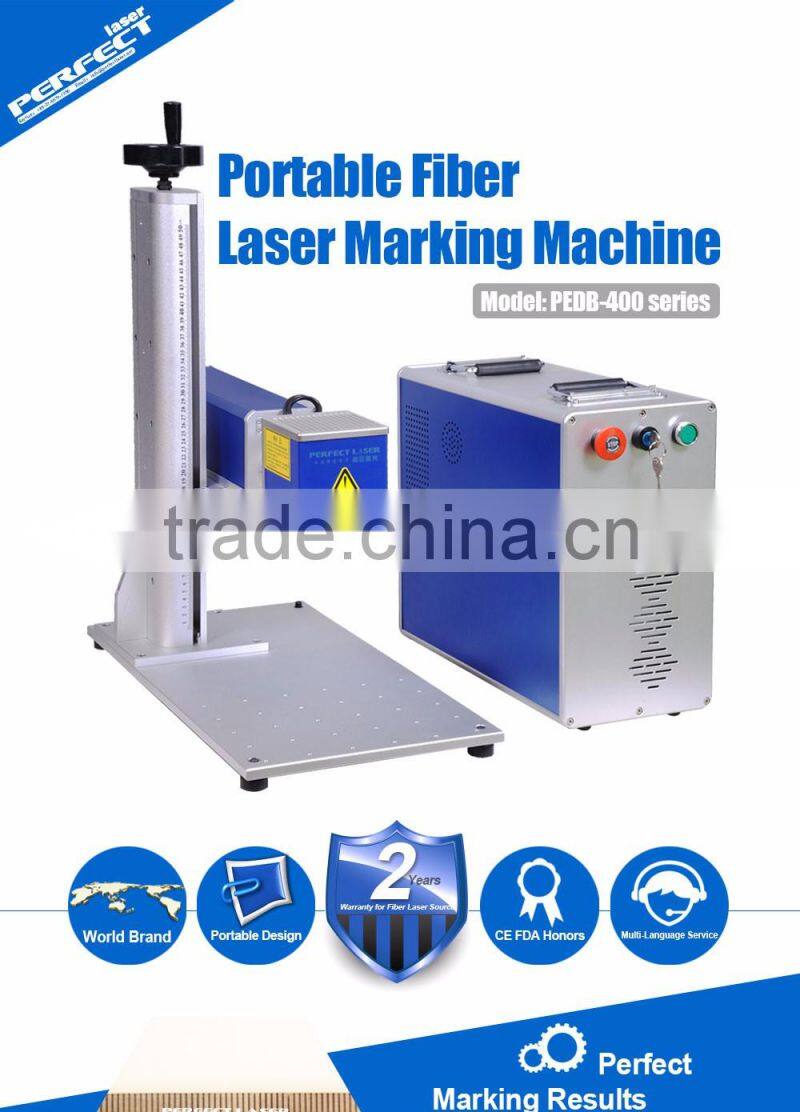

Model No. | PEDB-400A | PEDB-400B | PEDB-400C | PEDB-400D | |
Type | Portable | Desktop | Colorful | Floor Stand | |
PC includes or not | Not includes PC | includes PC | |||
Laser Source | |||||
IPG Series: | Pulsed, High Energy Ytterbium Fiber Lasers | ||||
Mode of operation | Pulsed | ||||
Polarization: | random | ||||
Nominal average output power | 10W - 20W | ||||
Central emission wavelength: | 1060-1070 nm ,Q-switched operation Output power adjustment range 10%-100% | ||||
Emission Bandwidth (FWHM) | <10 nm | ||||
Long-term average power instability | <5% | ||||
Pulse width, (FWHM) | 100 ns | ||||
Laser switching ON time | 180 μsec | ||||
Laser switching OFF time | 180 μsec | ||||
Pulse Repetition Rate* kHz | 20-80 kHz | ||||
Energy per pulse (PRR = 20 kHz) | 0.95 mJ | ||||
Typical beam quality, M2 | <1.8 | ||||
Output fiber delivery length | 3m | ||||
Operating voltage: | 220V | ||||
Max. Power consumption: | 600W | ||||
Net Dimensions: | 70*20*50cm | 80*38*72cm | 70*20*50cm | 143*62*101cm | |
Net Weight: | 44 kg | 53 kg | 44 kg | 130 kg | |
Gross Weight: | 60 kgs | 70 kgs | 60 kgs | 150 kgs | |
Quality Guarantee and After-sales Services
1) The guarantee period of quality shall be 12 months counting from the date on which the commodity arrives at the port of destination. Except the damage artificially and laser krypton lamp, we are responsible for offering the fittings free of charge during the guarantee period. While user is kindly requested to send the damaged fittings to us by courier with your charge before we send back the alternative fitting parts. After the guarantee of quality period, the parts required repairing or change, if any, shall be reasonable charged.
2) We will give technical guide by email, fax and telephone when user meets some problems on installation, operation, adjusting, maintaining.
3) We offer technical supporting to ensure safety using & maintenance for user:
Ø Operation manual for installation, adjusting, operation, maintaining;
Ø Professional marking software;
Ø Operational marking software backup;
Ø Quick supplement of key components-with reasonable price.
Life-long after-sales service & consulting service to user.
