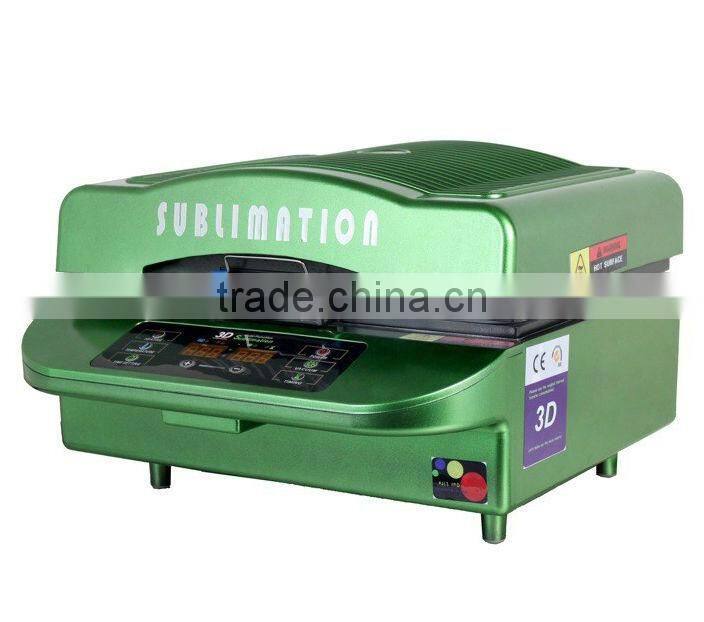

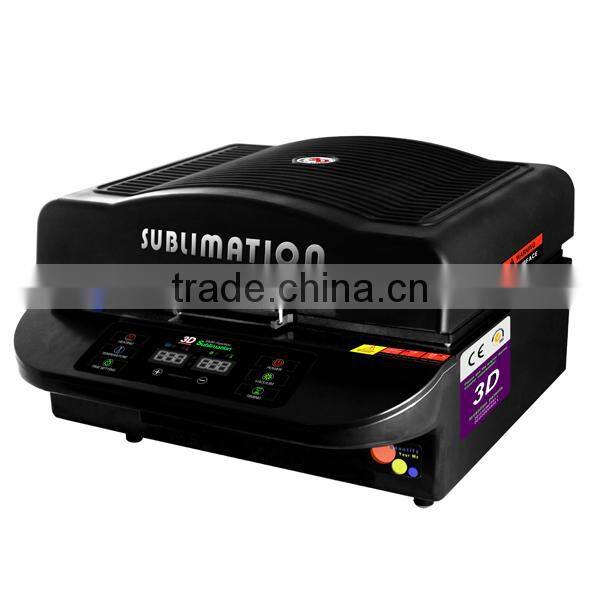

3d vacuum multifunctional sublimation heat press machine for Phone case, mouse
This machine is suitable for product whole 3d surface or irregular product surface a fornability full color thermal transfer processing .For example mobile phone cases,flat notebook computer case ,the mouse and craft gift ,ect .By taking advantage of the principe of vacuum adsorption hot transfer printing painting paper and surface of the product with irregular shape anr contacted closely with aid of sealing silicon plate on the working table ,and they are heated by means of highly efficient heating tube to the best effect of hot transfer printing ,making sure the painting on the product is clear ,vivid and good-looking ,and it is welcomed by transfer printing factories of high-grade products.
Specifications:
| the working area | 300*420*110MM | ||||
| Input voltage | 220V/110V/50HZ | ||||
| Maximun printing | 12 pcs mug one time | ||||
| Gross Power | 2.8kw | ||||
| VacuumFlow | 33L/Min | ||||
| Automatic Grade | Semi-Automatic | ||||
| Inspiratory time | 18S | ||||
| Usage | 3D Curved heat press | ||||
| temperature range | 0~390 degrees in Fahrenheit; 0~399 degrees in Celsius | ||||
| Time Range | 0~999 Seconds | ||||
| the warm-up time | 15 ~ 30min | ||||
| vacuum pressure | (-0.1)KPa | ||||
| weight | 22KG | ||||
| machine size | 470*590*290MM | ||||
| Meas | 680*630*380MM | ||||
| CBM | 0.163CMB | ||||
| Cetification | CE Cetification | ||||
| Packaging Details: | carton package | ||||
Parameter settings for Different Sublimation Blanks :
| Rim plate | 195Centigrade / 360s for 1pc /400s for 2pcs |
| Rock | 200 Centigrade /480s for 1pc/480s for 12 pcs |
| Phone case | 190Centigrade / 360s for 4pc/420s for 6pcs |
| MUGS | 200Centigrade / 360s for 1pc /480s for 12pcs |
| Photo Slate | 200 Centigrade /360s for 1pc/420s for 2 pcs |
| Metal Plate | 190Centigrade / 180s for 1pc |
| photo glass | 190 Centigrade /420s for 1pc/480s for 2 pcs |
| photo crystal | 190 Centigrade /420s for 1pc/480s for 2 pcs |
| Acryllc | 190Centigrade / 420s for 1pc |
| beer mug | 200Centigrade /480s for 7pcs |
| colothes | 190Centigrade /180s for 1pcs |
Warnings for 3D Sublimation Press machine:
- the machine shall be applied with the rated power
- keep the machine in well ventilated condition and away from explosives
- keep the machine stably and horizontally
- keep the machine dry all the way in stock, transport and operatio

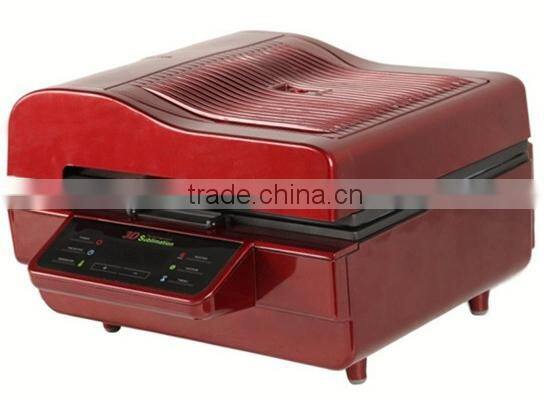

3D sublimation vacuum heat press machine:

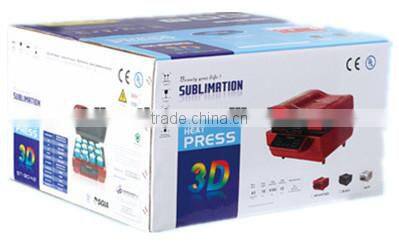

3D film heat press machine packing:
Strong colorful carton with polyfoam inside.
Packing size: 68*61*37cm
Gross weight: 25kg
A new generation of sublimation printing technology. This machine is multi-funtional.It can print mug, plate, ceramic tiles, crystal, glass, cell phone case, ipad case etc..
Payment term:
30% commission, balance paid before shipping.
T/T,Western Union. paypay and other.
Features:
1. Safty
Double-circuit design guarantees temperature control. When malfunction occurs in one circuit,
the other temperature controlling circuit activates automatically. The machine will automatically
shut down after 15 minutes' idle running, making it safe and reliable. This machine has applied
for CE/UL certificate.
2. High efficiency

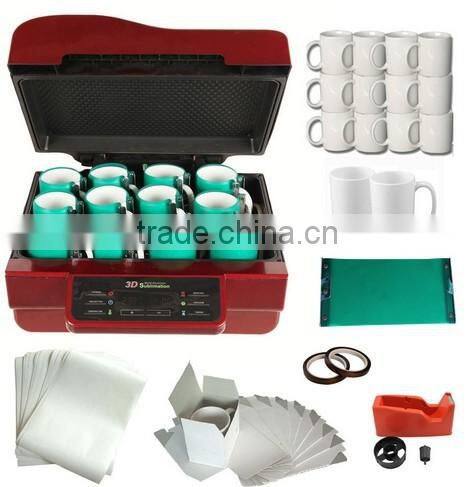

A big oven space: 300*420*110mm, unparallel working efficiency of printing 12 mugs at one
time, equaling 12 mug presses.
3. Dellcate
Heating area is enlanged with the bump dots design, and temperature of each point in the oven
is even with the aluminum alloy heating and the far infrared radiation coat. Printing comes out in
a more clear and vivid way.
4. Concise
Special flame resistant and insulative materials are applied in this streamlined compact machine.
With the tight intemal structure, the machine appears fashionably and concisely.
5. Compact
108 degree upward porsche design, simple operation and compact.

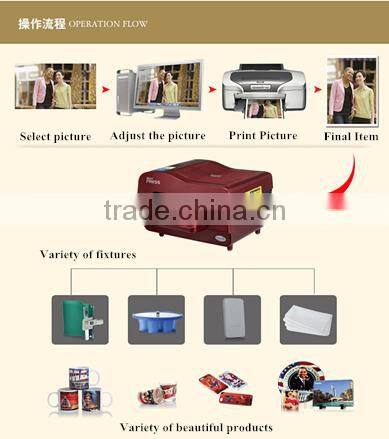

6. Intelligent
No extra manipulation needs for the whole printing process but only put-in and take-out. When
the cover is closed, the machine will automatically extract air, countdown and heat. Whe the printing
is finished, the machine will automatically suck air.
7. Use friendly desktop design
Simple fresh-hand lead in and control just with temperature and time setting.
8. Green design friendly enviromental design
Highly activated carbon air filter is equipped in the machine, effectively filtering the poisonous
smell produced during printing and protecting user's safety.
9. Multi-functional
Far outperforming conventional heat press machines, this machine designs for an all in one
solution of sublimation printing service, including mugs, glass, crystal, acrylic, plastic, wood,
metal,stone slate, textile and ect. In cooperation with our exclusive straps, multi sized mugs
can be easily printed, beautifully and clearly.
Guangzhou Elephant Digital Technology Co., Ltd. is a manufacturer of sublimation printed sportswear for all kinds of sports, including ice hockey, cycling, motor-cycling, rugby, soccer, basketball, baseball, lacrosse, paintball, weight-lifting, wrestling with well-equipped testing facilities and strong technical force.
With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in sportswear and other industries.
Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.
We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!

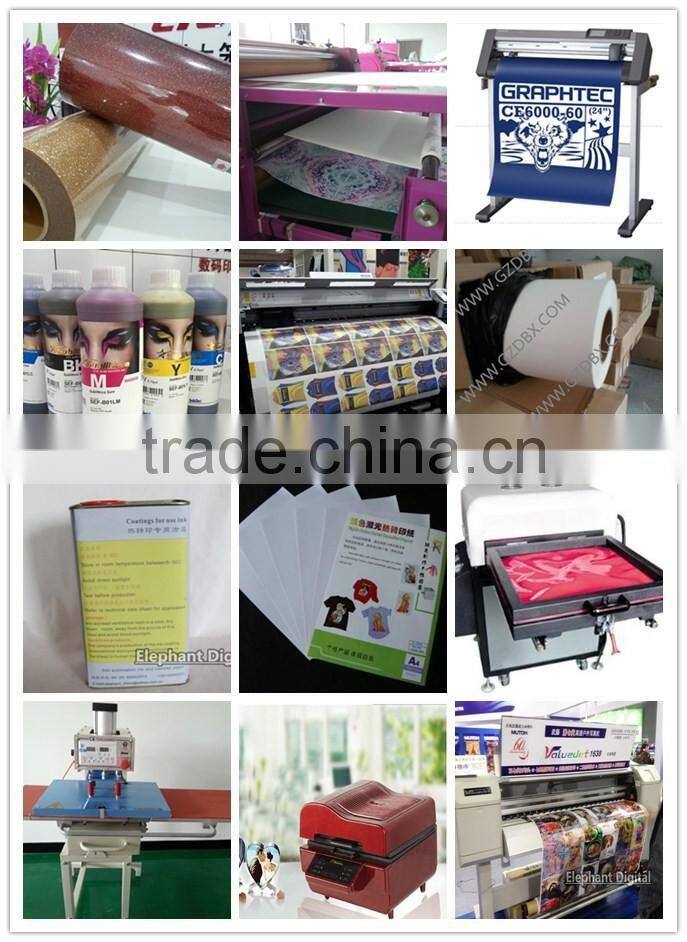

1. Sublimation ink and solvent ink.
2. Heat transfer paper, solvent transfer paper, heat transfer vinyI.
3. Digital printing machine.
4. Roll heat press machine.
5. Heat transfer machine.
6. Sublimation printing for cotton fabric, t-shirt, sportswear, bag, shose and so on.
