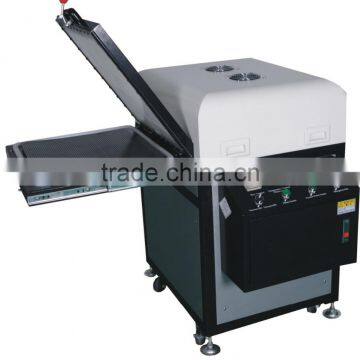

DBX supplier & manufacturer 3d multifunctional vacuum sublimation machine
Introduction
3D Vacuum Sublimation Press machine is suitable for the entire 3D surface or irregular surface forming full-color thermal transfer process,IT has a pneumatic drive pump built in that generates a vacuum environment for the heat transfer process, which benefits the sublimation heat transfer printing quanlity and saving more time and work and increasing market competitiveness.it scope of application such as Phone case, flat panel,mouse housing,advertising, logo signs, gifts,pre-coated metal plates,stone, ceramic glass, wood and so on.It is ideal equipment to improve production efficiency and quality.
Vacuumsub 3D sublimation heat press machine brings you more possibilities of printing with curved or multiple-surfaces sublimation blanks.
Specification:
| Type | single working station | double working station |
| The working area | 450 × 500mm×50mm | 450 × 500mm×50mm |
| Input voltage | 220V/110V/50HZ | 220V/110V/50HZ |
| Working station | single working station | double working station |
| Gross Power | 3800W | 3800W |
| Automatic Grade | Automatic | Automatic |
| Color & Page | Color & Page | Color & Page |
| Heat platen size | 50*48cm | 50*48cm |
| Usage | 3D Curved heat press | 3D Curved heat press |
| Temperature range | 0 ~ 399 °C | 0 ~ 399 °C |
| The warm-up time | 15 ~ 30min | 15 ~ 30min |
| Vacuum pressure | (-0.1)KPa | (-0.1)KPa |
| Weight | 180kg | 180kg |
| Dimensions(W*D*H) | 1320*1000*1100mm | 1320*1000*1100mm |
| Packaging Details: | carton and wooden package | carton and wooden package |
First,the use of preparatory work before:
1. Mounting rails and heating tube chassis(schematically as a video installation),ensure smooth slide rails(Note:the need to install the arrival of the duplex vacuum transfer machine the attached fringe orbit(table),single-station vacuum transfer machine track installed and do not need to install).
2. Connection the heating tube chassis control electric box wiring(quick connectors).
3. power connection(Note:the size of the supply voltage and the power cord must comply with machines subject of parameters,and the power leakage protection switch must be connected to the machine casing connected to ground).
Second,the principle :
The sealed silica films by vacuum suction principle and within the fully snapping thermal transfer paper all the products profiled surface .Re-use and efficient heat pipe is heated to thermal transfer be results.
Common problems and troubleshooting methods:
1.Vacuum pump abnormal sound or difficulty in starting
Remedy:
a.checking whether the vacuum pump oil in the oil level online
b.Check the power voltage is too low
C.Check the vacuum pump are trapped in the debris
2. In the case of any electronic valve did not open leak
Remedy:
a.check electronic valve is debris stuck inside can not be sealed
b.check the gas line fittings,cylinders under plug contacts vacuum gauge and vacuum gauge leaks
3. Vacuum suction is not enough.
Remedy:
a.the check contact vacuum table maximum pressure and minimum pressure adjustment(the general adjusted up to a maximum of -0.09 the lowest adjusted to -0.06)
b.check the work area e silicone tube interface slit(available high temperature glass gluing)
Real pictures:
applications & samples:
Shipping:
1.We have cooperated Express Company, so our customers can get low freight cost.
2.If you have your own forwarder in China, we can offer Free Delivery for you in Guangzhou
City!
3..There are no shipments on weekend and public holidays.
Package & delivery:
1. Neutral package or as customers' request.
2. we will arrange delivery 2-3workdays for samples after we confirm the payment.
Payment terms:
T/T Western Union, paypal
Guangzhou Elephant Digital Technology Co., Ltd. is a manufacturer of sublimation printed sportswear for all kinds of sports, including ice hockey, cycling, motor-cycling, rugby, soccer, basketball, baseball, lacrosse, paintball, weight-lifting, wrestling with well-equipped testing facilities and strong technical force.
With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in sportswear and other industries.
Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.
We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
V.Scope of warranty:
1.Heating tube gel tablets,e-type silicone tube is the loss of parts,since the date of the factory warranty a month
2.vacuum pumps,electronic valves,linear slide and electrical items are purchased parts,since the date of the factory warranty for 3 months
3.other quality problems,since the date of the factory warranty of 12 months
Security alerts
1.the machine is containing high-temperature device machine,the operator must wear high temperature gloves,beware of burns
2.Found abnormal or replacement parts during use,turn off the master switch,stop the machine on the operation of all components,and then disconnect the total power,the inspection is completed and to ensure that normal to the use of electricity
