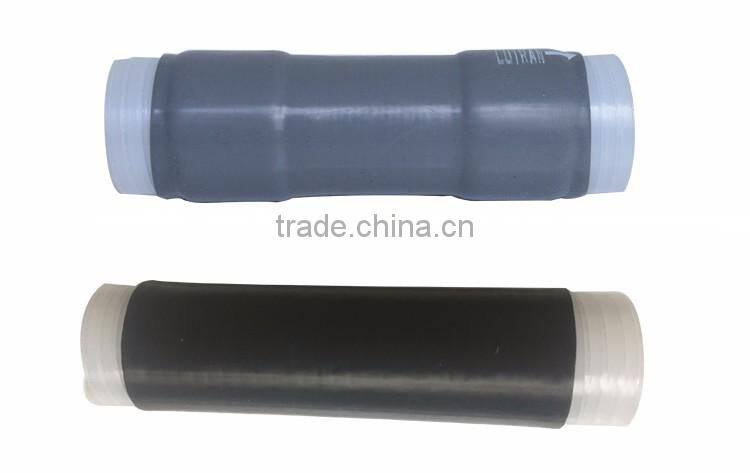

PCS35-9M, Cold Shrink Insulator For 2-4/0 AWG Power Cable.
US$ 0.5 - 5
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
maxdao
Model Number:
Cold Shrink Tube
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Ningbo Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
as Silicone Cold Shrink Tube Equivalent 98-KC21US$ 0.5 - 5MOQ: 1 Piece -
Silicone Cold Shrink Tube Equivalent to 3M 98-KC31US$ 0.5 - 5MOQ: 1 Piece
-
Cold Shrink Tube Equivalent to 98-KC11US$ 0.5 - 5MOQ: 1 Piece
-
Cold Shrink Expandable SleevingUS$ 0.5 - 5MOQ: 1 Piece
-
Cold Shrink TubingUS$ 0.5 - 5MOQ: 1 Piece
Place of Origin
Jiangsu, China
Brand Name
maxdao
Model Number
Cold Shrink Tube
Type
Insulation Sleeving
Material
Other, EPDM
Application
Other, Low Voltage, waterproof
Rated Voltage
1kv
Tensile Strength
12Mpa
Hot Sale
Product Description
| Cold Shrink Tube |
| Cold Shrink Tube is insulated,open-ended,tubular,rubber sleeve which is factory expanded and assembled onto a removable core. |
| The core is removed after the tube has been positioned for installation over a cable connection,terminal lug,etc.,allowing the tube to shrink and form a water-resistant seal. |
| The insulating tube is made of EPDM rubber which contains no chlorides or sulfurs. |
| Main Features: |
| Simple installation,requires no special tools. |
| No torches or heat required. |
| High effective long life. |
| Good tracking resistance and electric corrosive resistance. |
| Good thermal stability. |
| Seals light,retains its resiliency and pressure even after prolonged years of aging and exposure. |
| Excellent wet electrical properties. |
| Resists fungus. |
| Resists ozone. |
| Applications: |
| Primary electrical insulation for all solid dielectric(rubber and plastic) insulated wire and cable splicing. |
| For indoor,outdoor. |
| Physical protection and moisture sealing for high-voltage,air-insulated connectors and lugs such as spacer cable and lug connections to bus bar. |
| Insulation of secondary splices,copper or aluminum conductors. |
| Relocation of servie. |
| Dig-in repairs. |
| Sheath repairs. |
| Environmental sealing for communication and other non-electrical applications. |
Technical Data:
| Property | Test Method | Standard |
| Color | - | Black/Gray |
| Hardness (shore A) | ASTM D 2240 | 49 |
| Tensile Strength(Mpa) | GB/T528 | 11.8MPa |
| Elongation At Break(%) | GB/T528 | 639% |
| Tear Strength(KN/m) | ASTM D 624 | 38.6kN/m |
| Dielectric Strength(KV/mm) | ASTM D 149 | 6~20kV/mm |
| Volume Resistivity(Ω.cm) | GB1410-89 | 4~8*10 15ohm*cm |
Specifications:
| 3M Model | Diameter(mm) | Range of cable outer diameter,mm(min-max) | Relaxed tube length,mm(inch) |
| 8423-6 | 20 | 7.8~14.3 | 152(6'') |
| 8423-8 | 25 | 10.1~20.9 | 203(8'') |
| -- | 32 | 13~25.4 | 229(9'') |
| -- | 32 | 13~25.4 | 279(11'') |
| 8426-9 | 35 | 13.9~30.1 | 229(9'') |
| 8426-11 | 35 | 13.9~30.1 | 279(11'') |
| 8427-6 | 40 | 17.5~35.1 | 152(6'') |
| 8427-12 | 40 | 17.5~35.1 | 305(12'') |
| 8427-16 | 40 | 17.5~35.1 | 406(16'') |
| 8428-6 | 53 | 24.1~49.2 | 152(6'') |
| 8428-12 | 53 | 24.1~49.2 | 305(12'') |
| 8428-18 | 53 | 24.1~49.2 | 457(18'') |
| 8429-6 | 70 | 32.2~67.8 | 152(6'') |
| 8429-9 | 70 | 32.2~67.8 | 229(9'') |
| 8429-12 | 70 | 32.2~67.8 | 305(12'') |
| 8429-15 | 70 | 32.2~67.8 | 381(15'') |
| 8429-18 | 70 | 32.2~67.8 | 457(18'') |
| 8430-9 | 104 | 42.6~93.7 | 229(9'') |
Performance Test
Trade Assurance
Trade Information
| Trade terms | CIF, DDU, EX-WORKS |
| Payment terms | T/T, L/C, Negotiable |
| MOQ | 1 |
| Supply capability | 1000000 pieces per month |
| Lead time | 3-15 days |
| Shipment | Sea, Air, Express |
| Port | Shanghai, Ningbo, Shenzhen |
| Sample availability | Yes |
| Sample time | 3-5 days |
| Packaging | Plastic bag, Carton, Pallet |
