Home > Products > Viscosity Control & Test Device > With Pump Viscosity Regulator
With Pump Viscosity Regulator
- 2000 Unit / Units per Month
- Shenzhen/Shantou
- Credit Card
- Sand Water Filter/Water treatment plants
- Automatic Doypack Seal Machine (insert and sealing machine)
- IPX3/IPX4 Hand-held Water Spray Nozzle Test Device IEC 60529
- IPX5,IPX6 Jet Nozzle of IEC 60529, Brass material
- Adjustable and multifunctional Spring Impact Hammer IK01-IK07 Level Tester
- Test probe 43 IEC 61032-Probe 43-Figure 17 Jusdtest
Product Details
Place of Origin: | Guangdong, China | Brand Name: | Rongtai | Model Number: | BML-10V/15V/20V |
Product Description

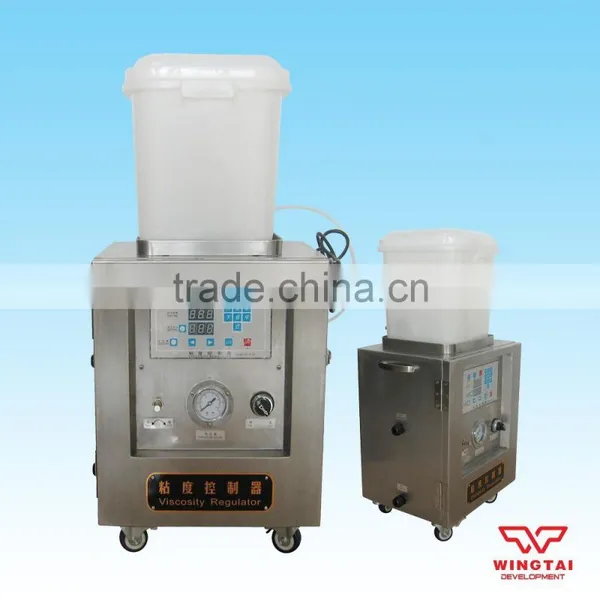

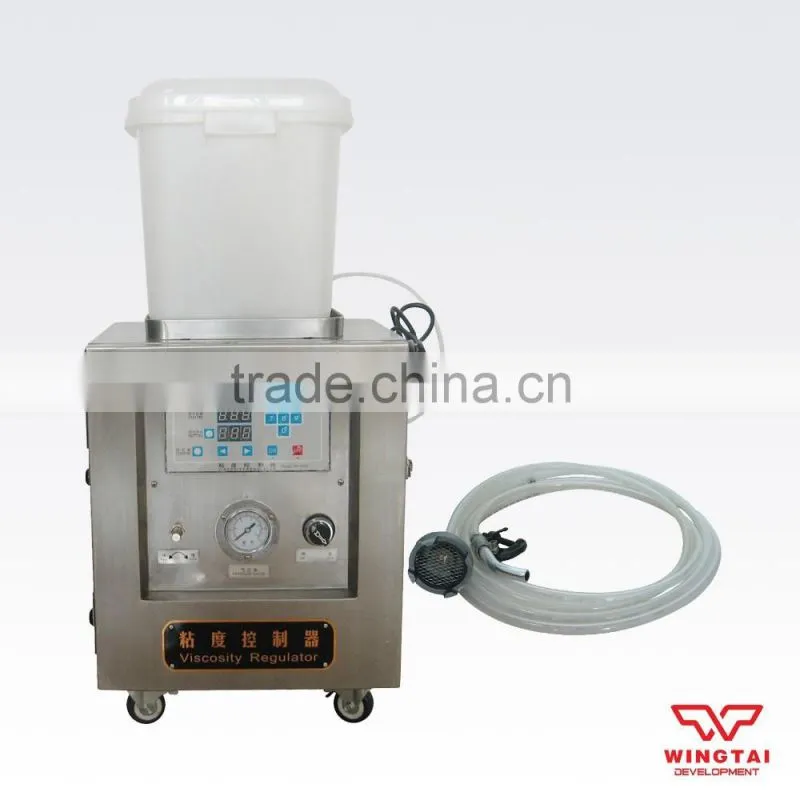

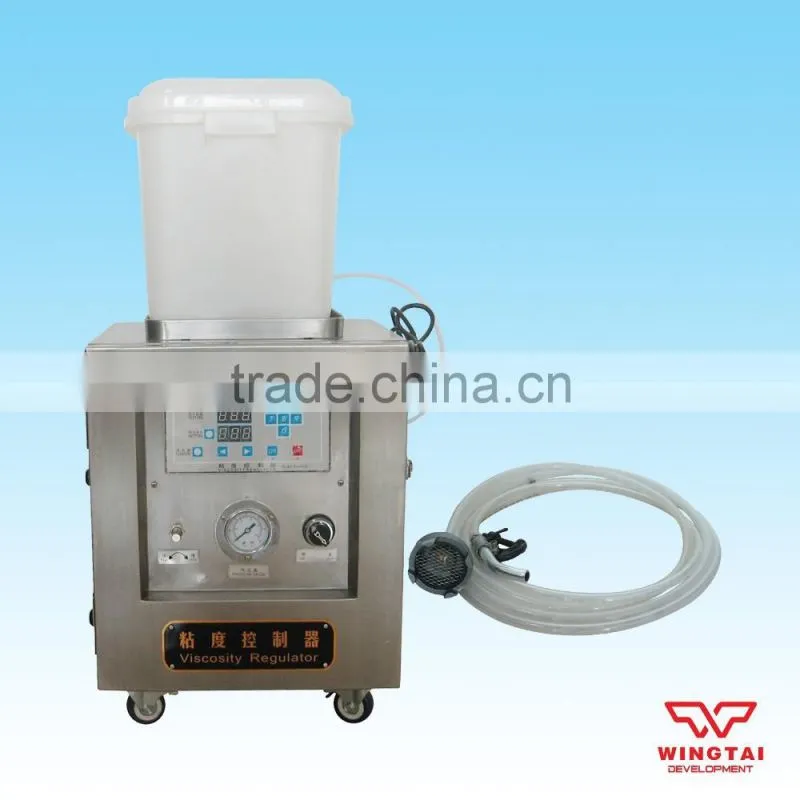

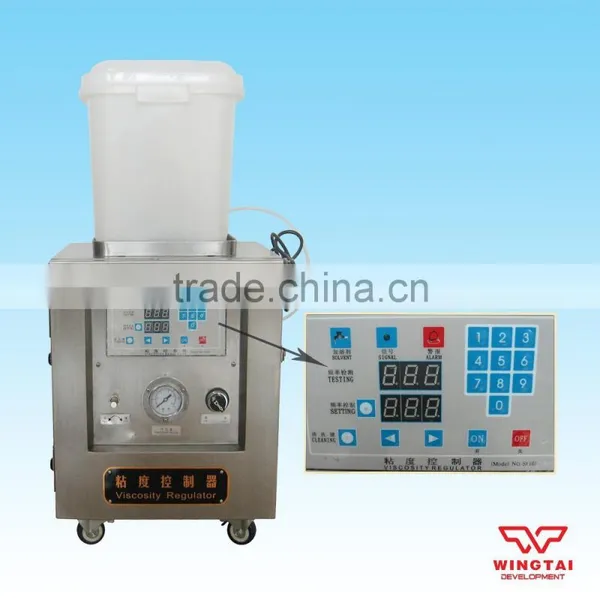

viscosity Regulator
The machine is suitable for printing industry to automatically dilute the viscosity of the ink, and glue.Easy to use , no need manual adjust the ink,only need to set the viscosity value,according to the product requirement. Pulse detector testing viscosity, Pneumatic diaphragm pump cycle ink and glue. Safe&reliable, accurate detection of viscosity. Using viscosity controller automatic tracking& monitoring to make the viscosity consistent when printing, lamination, coating .
Technique parameters:
Model | BML-10V | BML-15V | BML-20V |
Dimension | 760*350*280mm | 760*350*280mm | 780*380*300mm |
Appearance | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
Net Weight | 19kg | 21kg | 25kg |
Control Range | NO.3:13~30s | NO.3:13~30s |
|
| NO.4:13~50s | NO.4:13~50s | |
Control Precision | 0.5s | 0.5s | 0.5s |
Suction Hose | 11*8mm*2m | 14*10mm*2.3m | 25*19mm*2.5m |
Delivery Hose | 10*6.5mm*2m | 11*8mm*2.3m | 25*16mm*2.5m |
Circulation Volume | 3.9 L/min | 8.8 L/min | 19 L/min |
Air Consumption | 40 L/min | 90 L/min | 160 L/min |
Working Pressure | 0.4MPa | 0.5MPa | 0.6MPa |
Working Voltage | 220V | 220V | 220V |
Max.Volume of Sub-tank | 20L | 40L | 80L |
1. Single unit can complete printing ink circulation, mixing, viscosity control
2. Improve the printing color consistency, greatly reduce the defect and guarantee the quality of the products
3.Timely to add solvent, sharply reduce the ink consumption up to 15 ~ 20%, effectively reduce the printing cost
4. Accurate control of viscosity, printing operators do not need to worry about viscosity change, can put more attention on other printing problems, also can save the manpower. Stable ink viscosity reduce printing defects.
5. The pump frequency (hz) as control unit, ensure the precise of the control precision
6. The equipment of pipe for the ink, solvent is pneumatic control valve, more efficient, safe and reliable.
7. Simple way of equipment maintenance, as long as half a gallon of solvent and one minute of time, can complete cleaning equipment

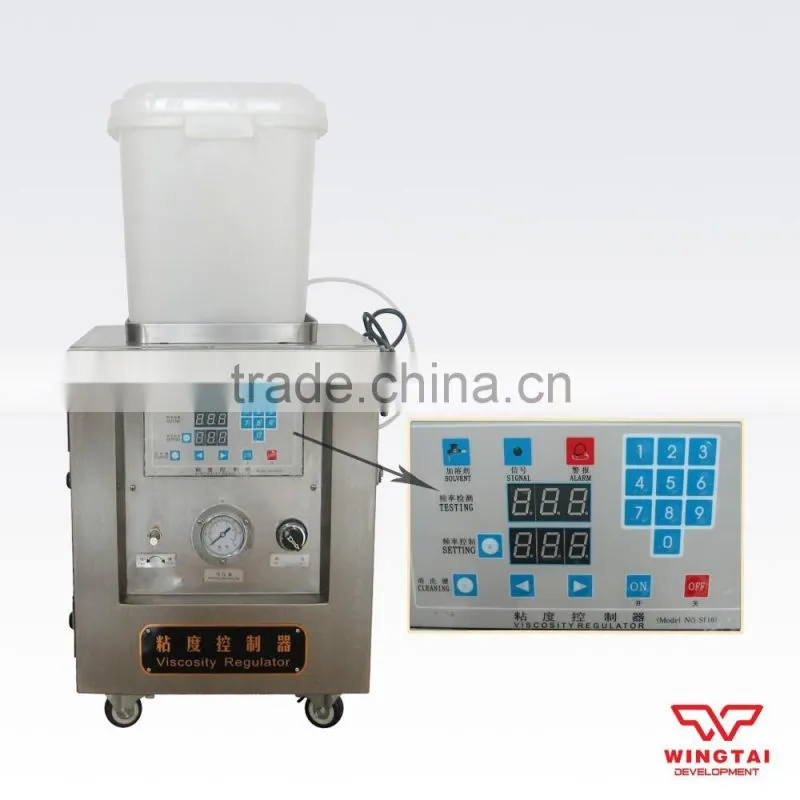

8. Using large digital display, easy observation, operation set, easy to adjust
9.Use automatic lubrication and oil recycling system, extend the service life of the diaphragm pump 3 times
10. Ink hose using special material more soft, strong recovery, not deformation, not distention
11. Compact structure, lightweight, easy to carry and install

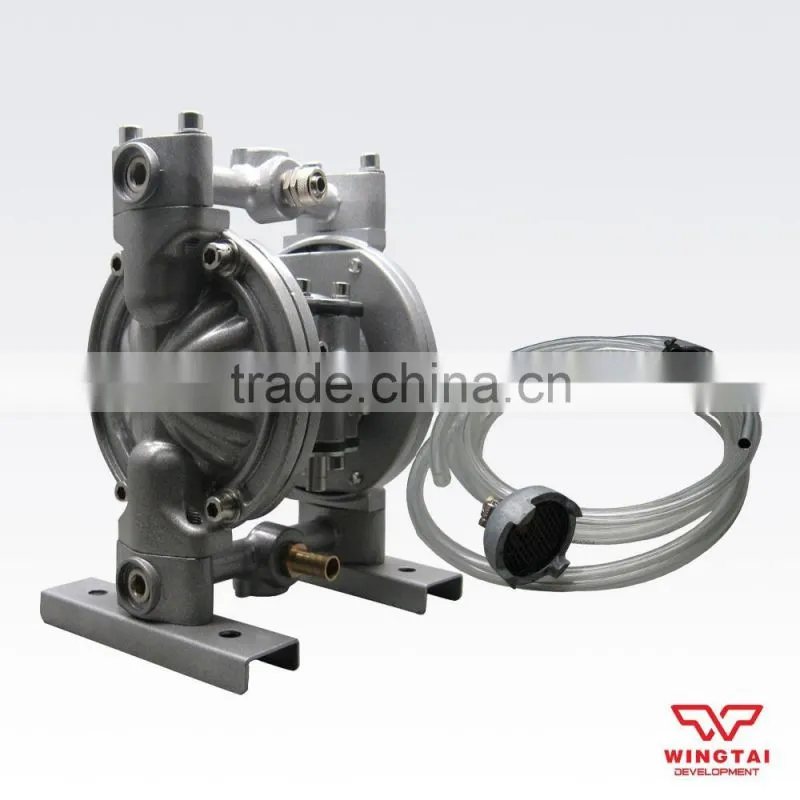

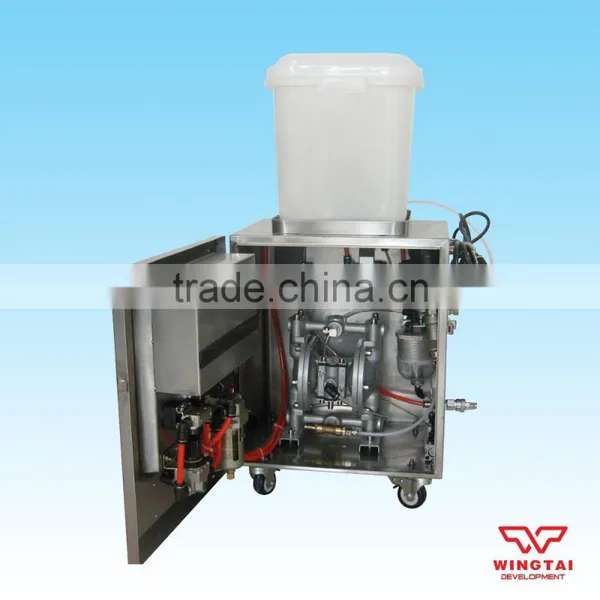

12. Pneumatic diaphragm pump cycle ink is safe and reliable
Application:
1. Gravure printing and flexo printing: food package printing,plastic bag printing, PVC calico paper printing and all kinds of plastic package peinting.
2.Laminating: food plastic package laminating,paper laminating and rubber laminating
3. Coating: fit for bank card,negative,film,Polaroid,car decorating and all kinds of substrate coating.
4.Other use: all kinds of industry which is required for liquid viscosity consistency.

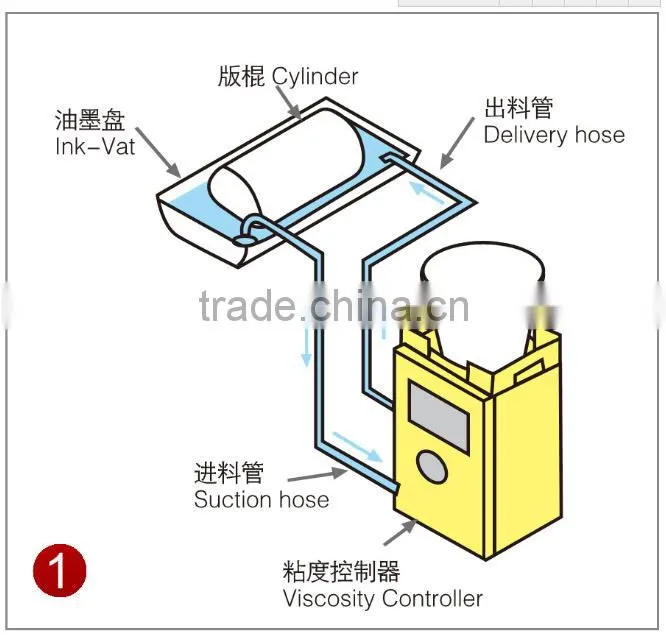

1. Direct Circulation

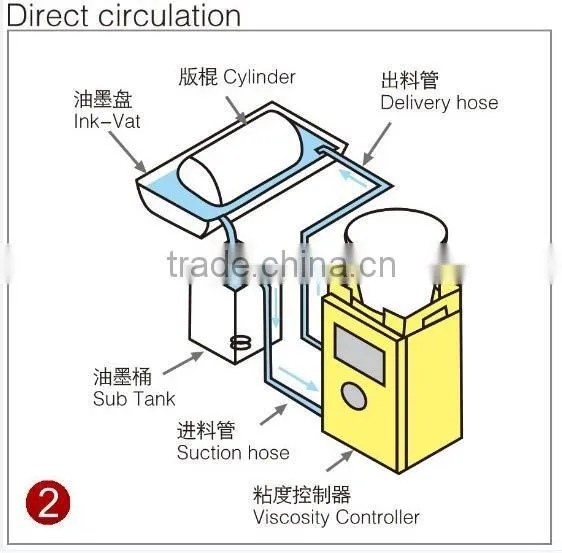

2. Circulation through sub ink-tank

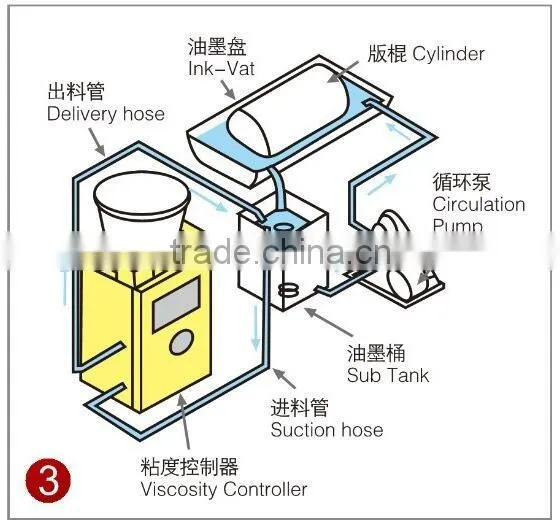

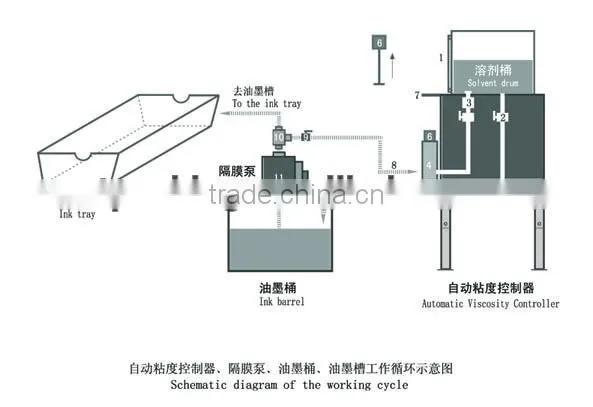

3. Circulation through sub ink-tank with using circulating pump

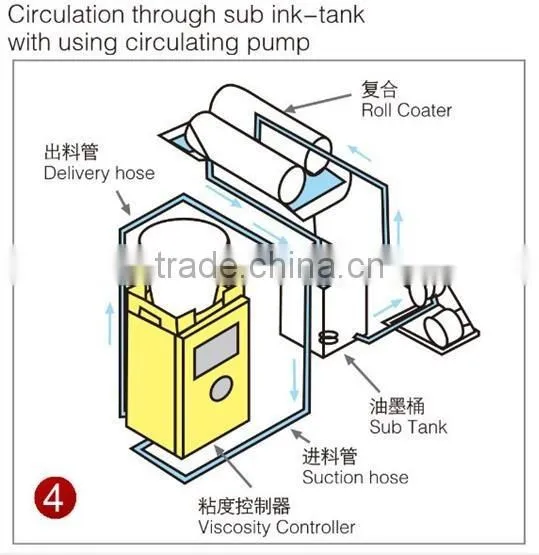

4. Circulation through sub ink-tank with circulating pump for roll coater.

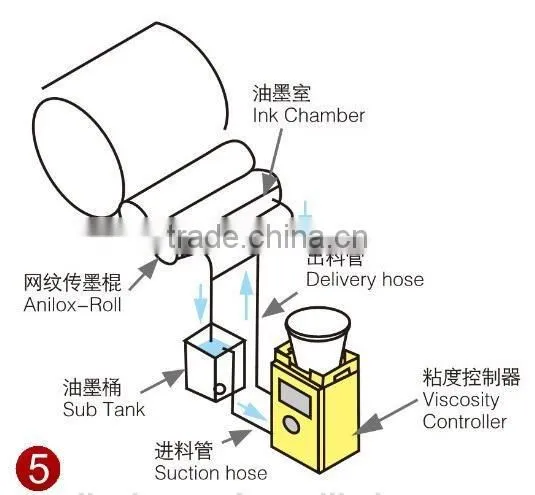

5. Circulation through sub ink-tank for ink chamber
You maybe interest below product,click the headline to browse more...

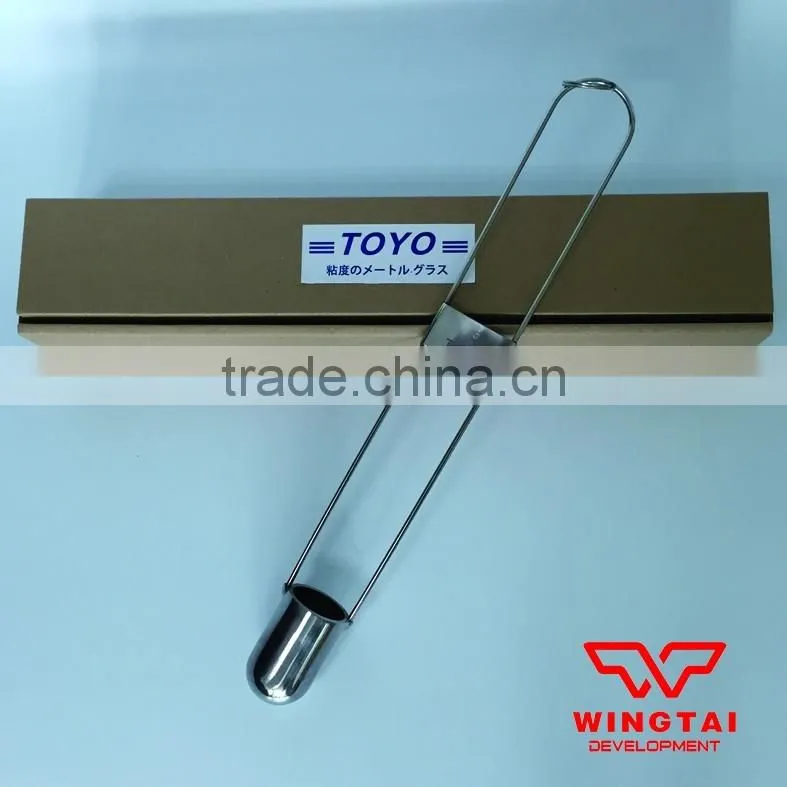

BML-5 One Way Pneumatic Glue Air Pump | BML-10 Double Way Pneumatuc Glue Pump | BML-15 Double Way Pneumatic Diaphragm Pump | TOYO Stainless steel Paint Viscosity Cup |

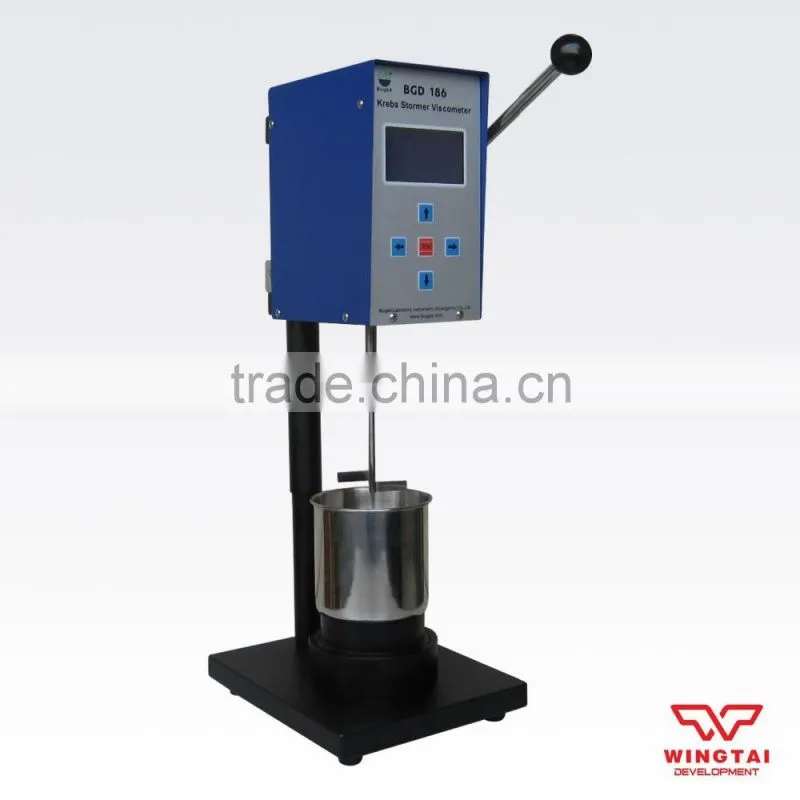

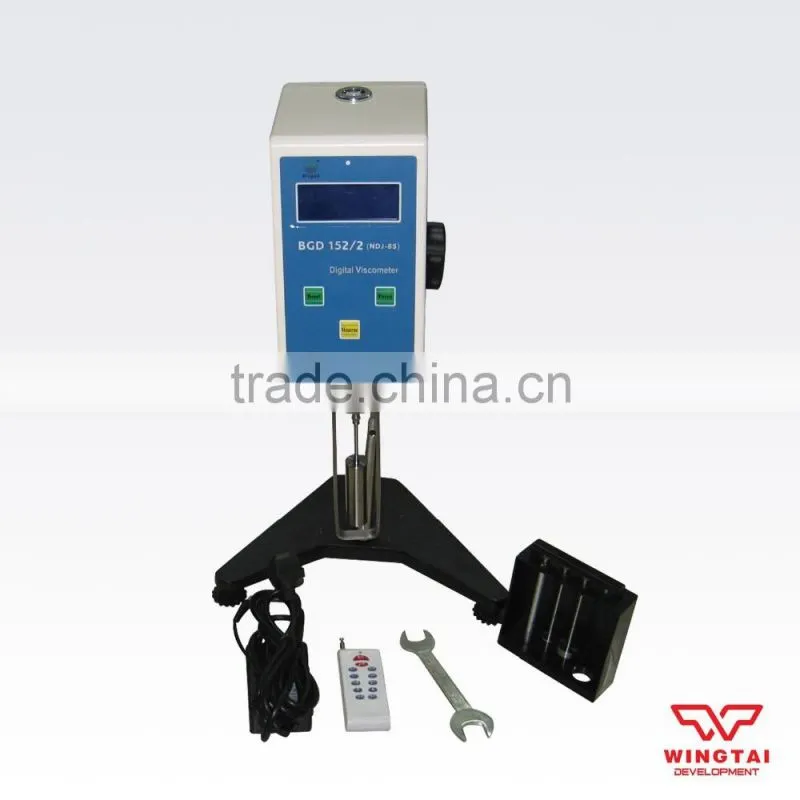

BGD 186 Stormer Paint Viscometer | Digital Viscosity Meter 152/2 | Ink, Glue Viscosity Regulator BML-10 | ink,glue viscosity regulator for printing BML-15V |
