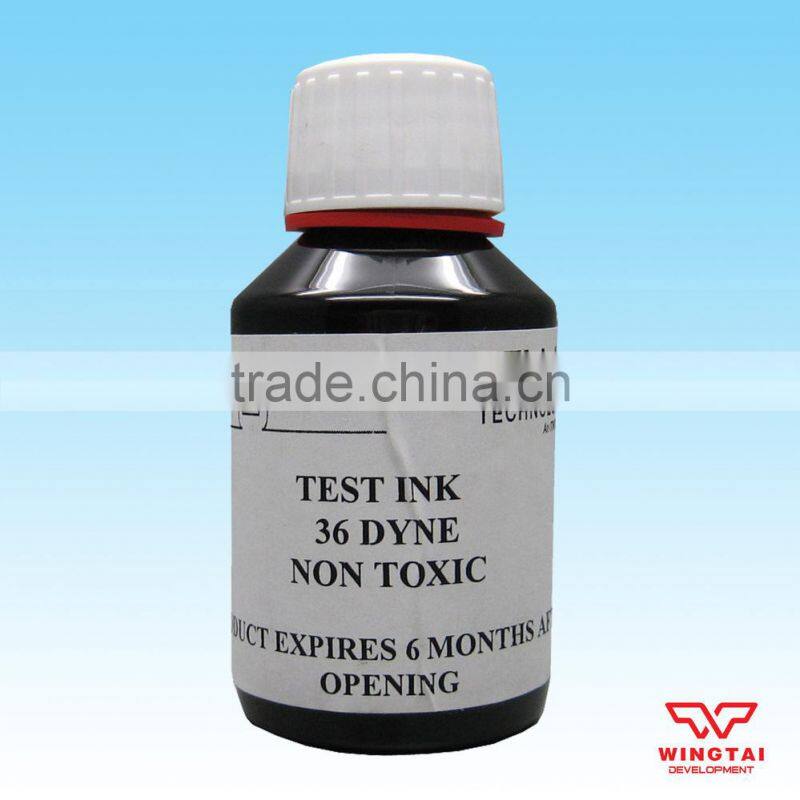

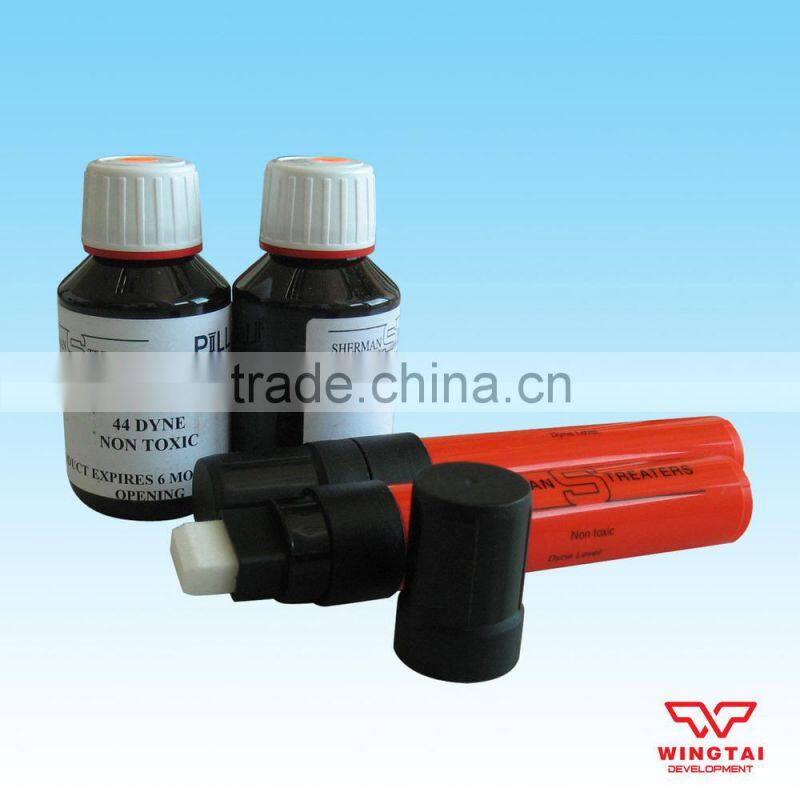

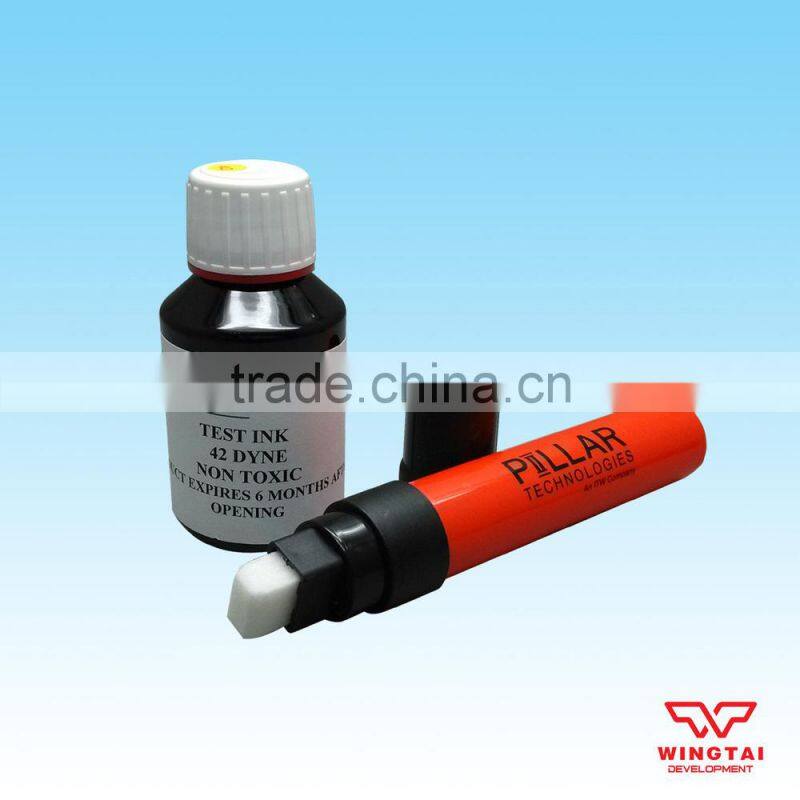

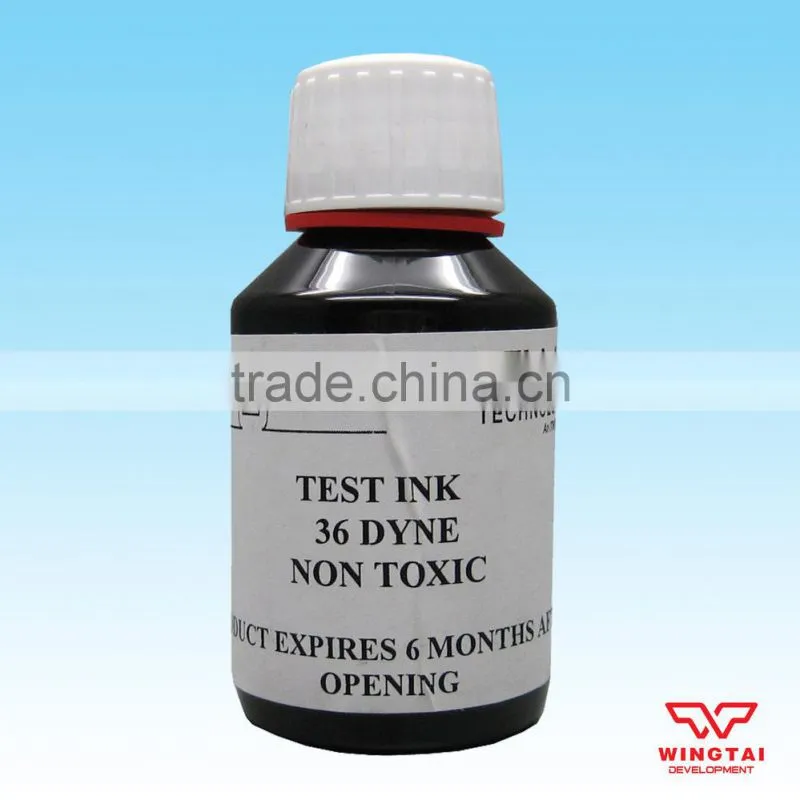

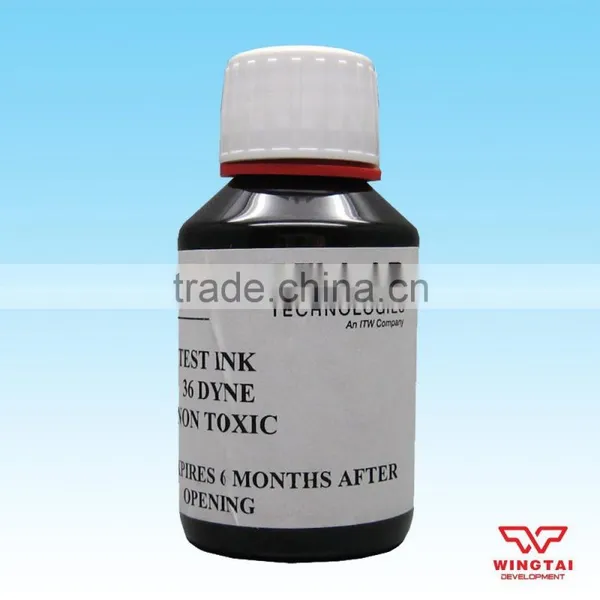

1 Set Sherman corona dyne test pen and ink

SHERMAN Dyne Test Pen With Testing Ink

Original Place : United Kingdom
Brand : SHERMAN TREATERS

Assorted Pen Model No. : 31 32 34 36 38 40 42 44 46 48 50 52 54 56
58 59 61 63 65 67 69 71 dyne/cm
( 1 pcs pen tube + 1 bottle 100ml test reagent)

Ink color : Blue green

It can accurately test the dyne value and wetting tension of the film surface,which belongs to the advanced technology all over the world.

Performance
It can accurately test the surface tension of plastic film, Which reaches the dyne value or not. So that users can clearly understand this film whether suitable for printing composing and vacuum plating So we can effectively acontrol quality and reduce waste or time delays by unqualified material.

Features
Sealed pen cover, a long storage life, free from pollution, non-carcinogenic substances, to accord with the international health standards, red display, easy to use, testing accurately , reduce waste, large capacity storage for ink, long life usage.

Function

To test the dyne value on the surface of film or film surface tension when it is wet .

Testing Procedure Tips- Solutions

• Spread the test fluid from the felt tip pen lightly over an area of approximately 7 cm of the test specimen, noting the time it takes for the continuous film of ink to break into droplets.

• Breaking of the fluid into droplets in less than 2 seconds indicates a lack of wetting and a lower numbered test fluid should be tried.

• If the fluid remains intact for longer than 2 seconds, a higher numbered test fluid should be tried.

• The aim is to establish the lowest reading at an optimum dwell time of 2 seconds.

• Extreme care must be taken to ensure the film surface is not touched or contaminated in the areas in which the tests are to be made.

• We recommend the replacement of the inks regularly if the bottled inks are frequently opened to atmosphere.

*If bottled inks are exposed to the air on a daily basis: dispose of remaining inks after 3 months.

*If bottled inks are exposed to the air on a weekly basis: dispose of remaining inks after 6 months.

* If bottled inks are exposed to the air on a monthly basis: dispose of remaining inks after 6 months.
