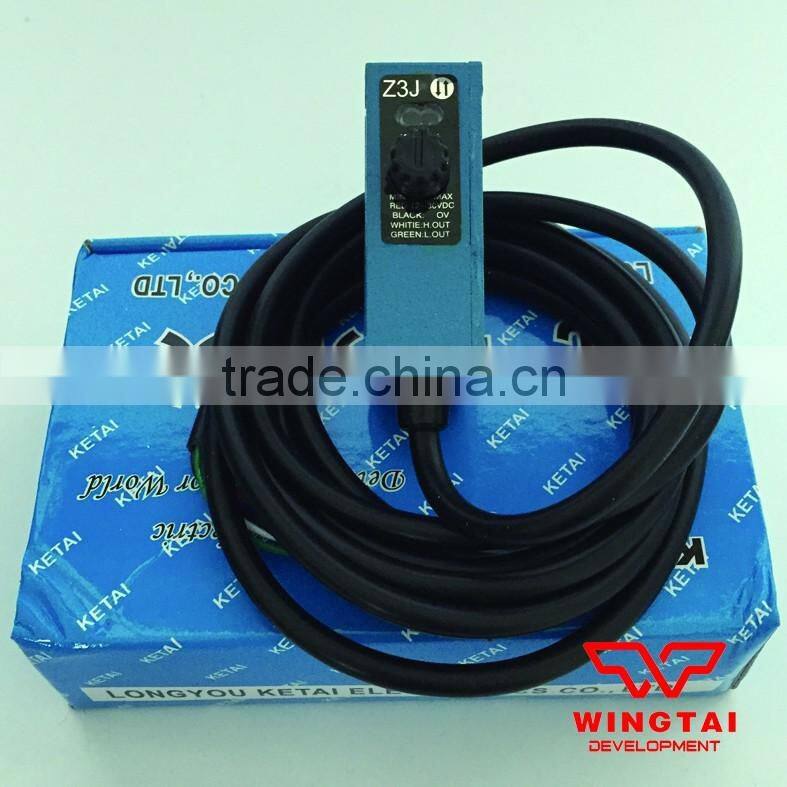

KETAI Bag-making Machine Photo-electric Sensor Z3J

KETAI Bag-making Machine Photo-electric Sensor Z3J Infrared Detection Switch / Sensor

Place of Origin: China

Model Number: Z3J-DS50E3

Z3J-Infrared series

Containing a small amplifier that can absorb 100mA bright or dark current,

output control convenience

Metal interference ability

Operation Steps:

Infrared photoelectric switches, photoelectric switch is on the object to be detected,

adjust the sensitivity knob to adjust the detection distance photoelectric switches,

sensing distance can be increased to the maximum detection distance of the model from 0mm

Connecting Method

Red---Positive

Black---Negative

Green---Output (Bright moving)

White---Output (Dark moving )

Main Technical Data:

Attentions:

1. Be sure to check before energizing the power supply fits DC12-24V ± 10%, the maximum does not exceed 30V, otherwise it may damage the photoelectric switch

2. Adjust the sensitivity, use a small screwdriver and should not be excessive force,  otherwise it may damage the potent knob affect photoelectric switch

3. The installation should prevent direct glare into the optical lens or take appropriate measures  blackout.

4. The working environment temperature, humidity, vibration, shock and other corrosive gases,  are likely to affect the work of the photoelectric switch

5. Usually pay attention to protect the optical lens clean, try to avoid facing up  when you install the lens erected to reduce dust.

Model Number
