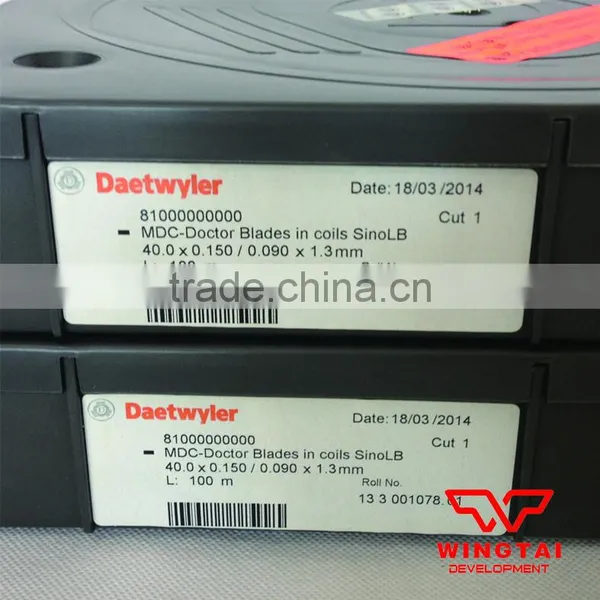

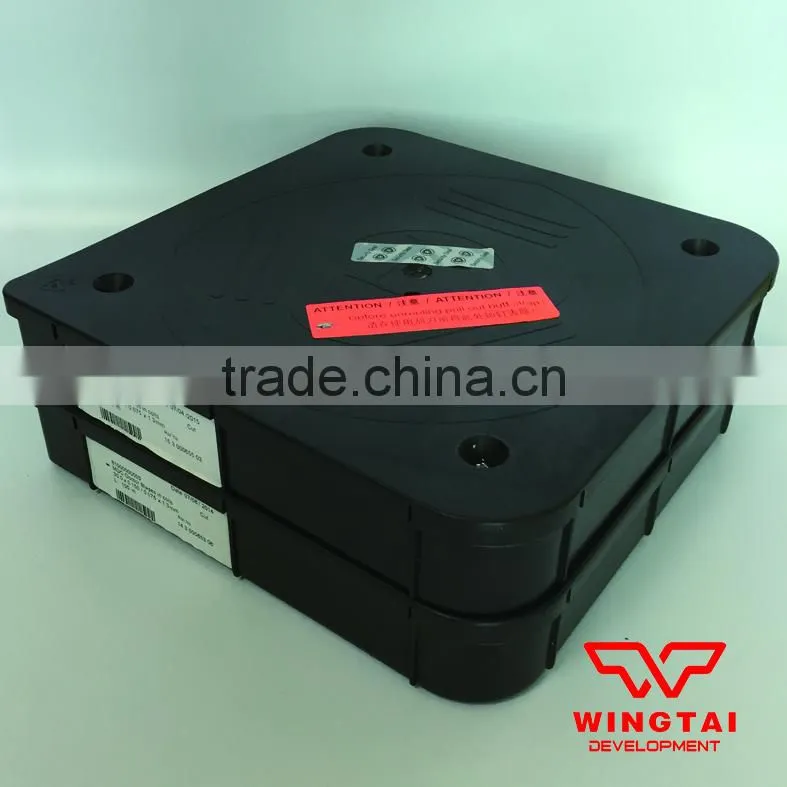

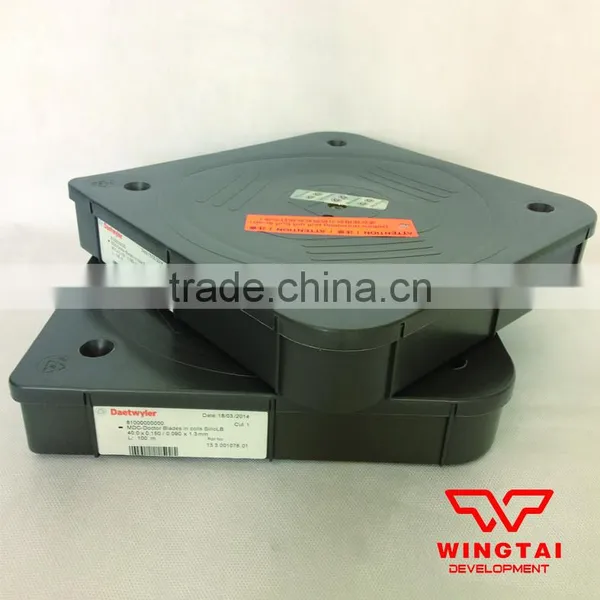

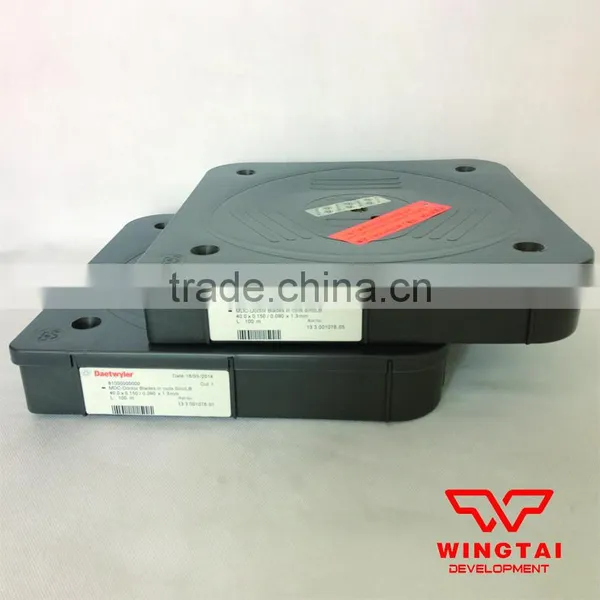

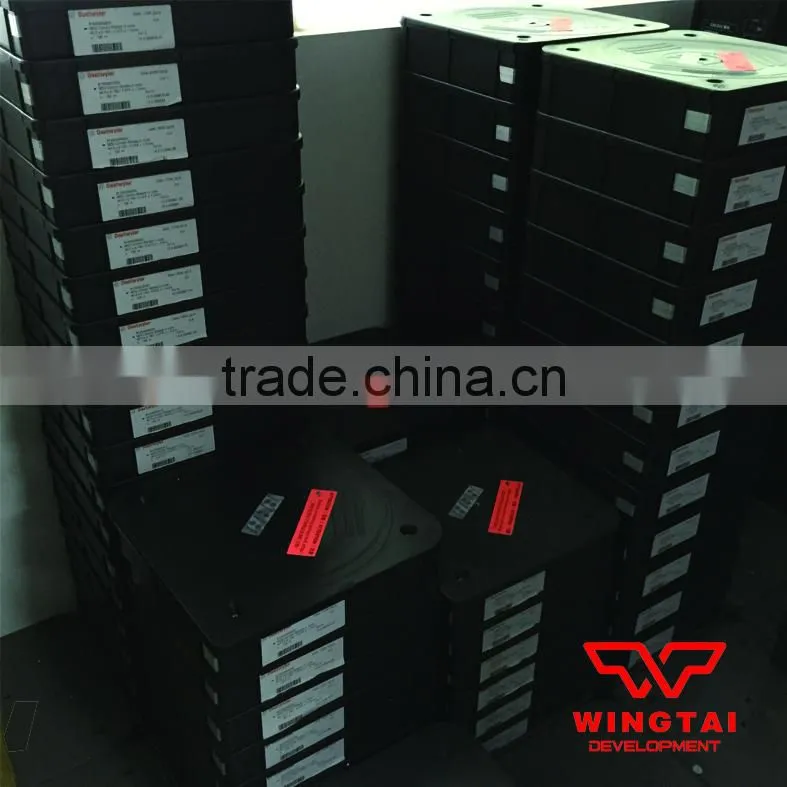

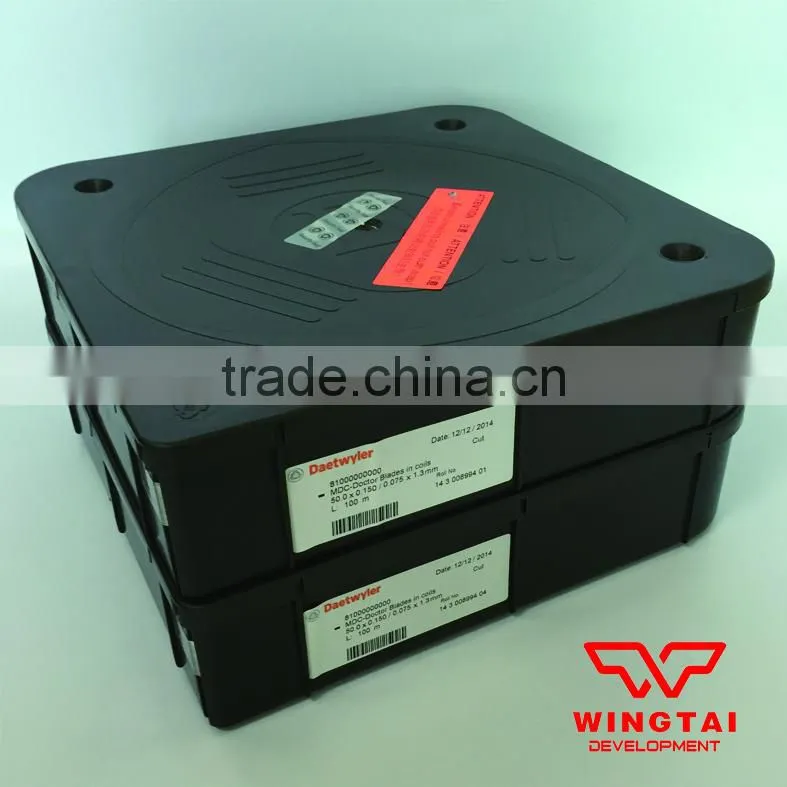

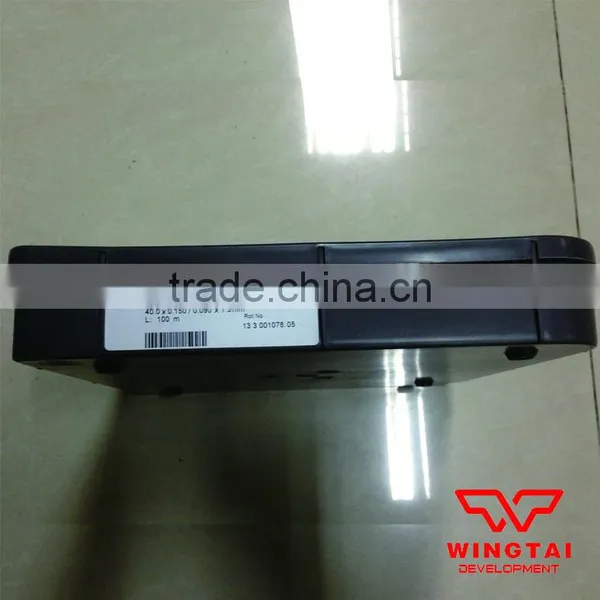

MDC Doctor Blade Gravure Printing Machine
Place of origin: Switzerland
Manufacturer: Daetwyler
Model number: Doctor Blades in coils
Material: Carbon Steel
Common width: 30/40/50/60 mm
Common thickness: 0.15/0.2mm
Common lamella: 0.075*1.3mm / 0.125*1.7mm
MDC standard doctor blade(carbon steel material)
Standard doctor blade has identical blade thickness, within the service life of the blade, it keeps consistent with the contact surface of the roller, therefore, its hue is the same. The blade point has unique polishing processing, will not waste and fit with the roller quickly when start printing.
Advantage
·High quality European steel
·The specially polished blade guarantees smooth and sharp doctoring
·Available in all configurations
·Reduce anilox roll wear
·Can be used in solvents or water-based inks
Application
·Flexo Print
·Gravure
Specification
• WIdth 8.5 - 80.0 mm
• Thickness 0.150 / 0.200 / 0.250 / 0.300 / 0.400 mm
MDC standard doctor blade specification:
Item name |
Specification |
Material |
Suitable machine speed |
MDC-Doctor Blades in coils |
W30*T0.15mm/0.075*1.3* L100m |
Carbon Steel |
180m / min |
MDC-Doctor Blades in coils |
W30*T0.2mm/0.125*1.7* L100m |
Carbon Steel |
180m / min |
MDC-Doctor Blades in coils |
W40*T0.15mm/0.075*1.3* L100m |
Carbon Steel |
180m / min |
MDC-Doctor Blades in coils |
W45*T0.15mm/0.065*1.3* L100m |
Carbon Steel |
180m / min |
MDC-Doctor Blades in coils |
W50*T0.15mm/0.075*1.3* L100m |
Carbon Steel |
180m / min |
MDC-Doctor Blades in coils |
W60*T0.15mm/0.075*1.3* L100m |
Carbon Steel |
180m / min |
MDC-Doctor Blades in coils |
W25*T0.2mm/0.125*1.7* L100m |
Carbon Steel |
180m / min |
MDC-Doctor Blades in coils |
W30*T0.2mm/0.125*1.7* L100m |
Carbon Steel |
180m / min |
MDC-Doctor Blades in coils |
W40*T0.2mm/0.125*1.7* L100m |
Carbon Steel |
180m / min |
MDC-Doctor Blades in coils |
W50*T0.2mm/0.125*1.7* L100m |
Carbon Steel |
180m / min |
MDC-Doctor Blades in coils |
W60*T0.2mm/0.125*1.7* L100m |
Carbon Steel |
180m / min |
MDC-Doctor Blades in coils |
W40*T0.2mm/0.08*1.7* L100m |
Carbon Steel |
Special lamella need to booking |
MDC-Doctor Blades in coils |
W80*T0.25mm/0.08*1.7* L100m |
Carbon Steel |
180m / min |
