Home > Products > Mechanical Electrical Equipment > FZ 100A-1 Magnetic Powder Brake For Printing Machine

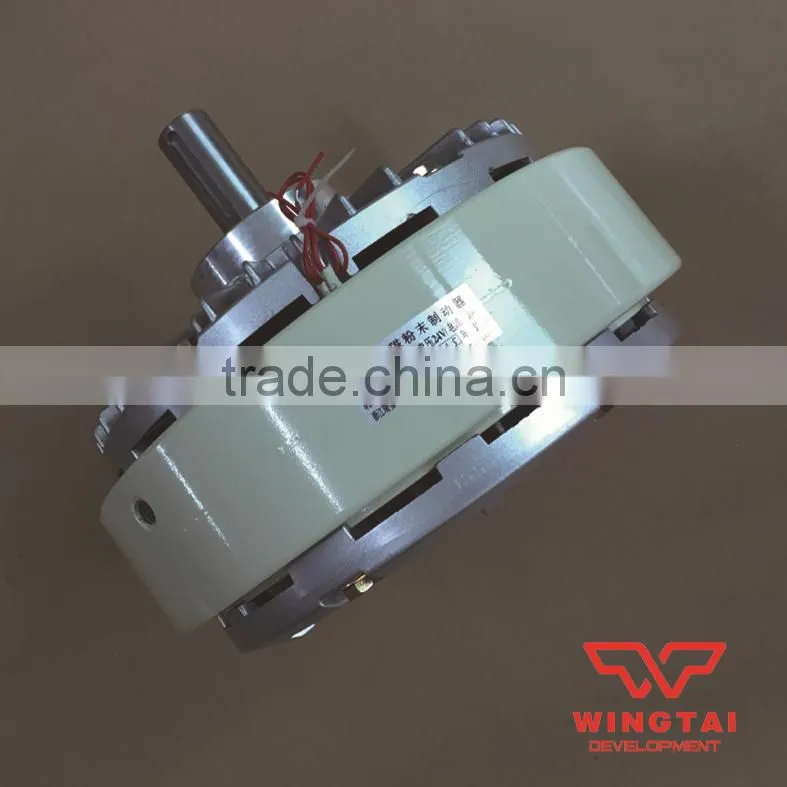

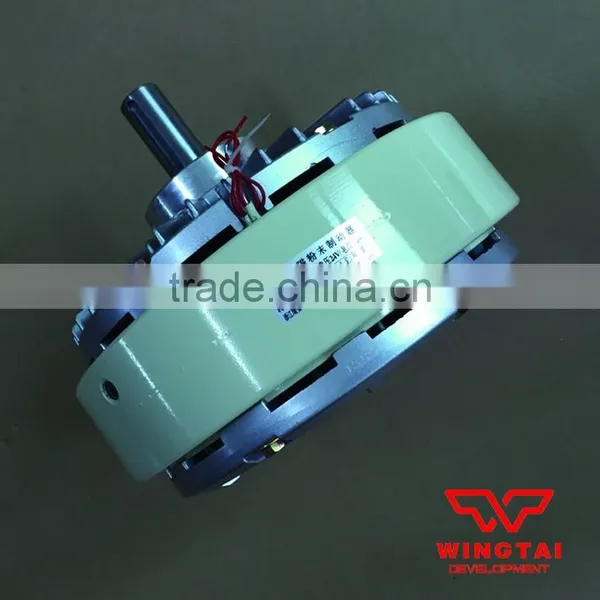

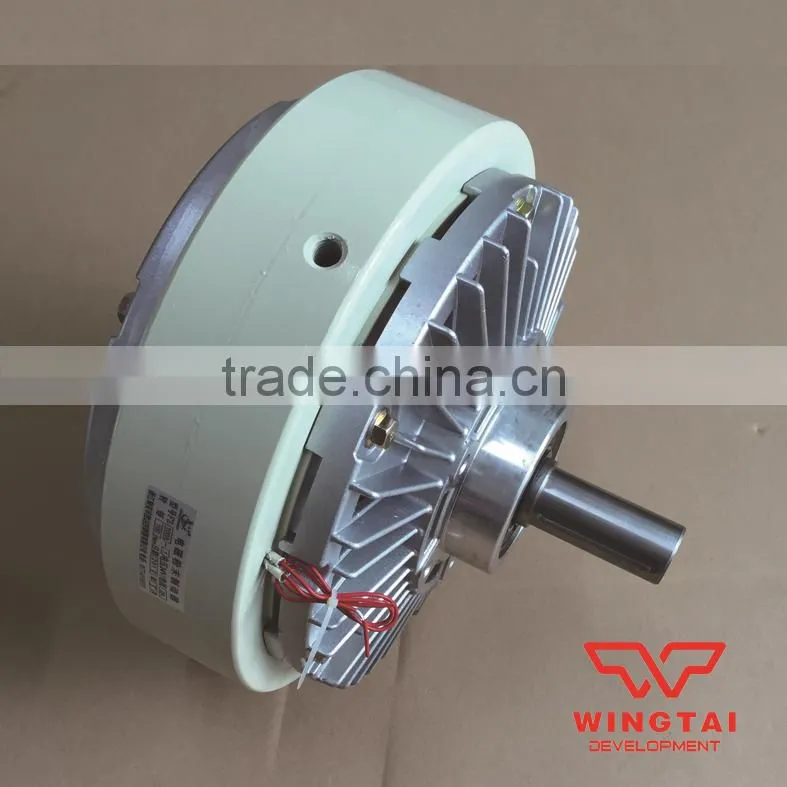

FZ 100A-1 Magnetic Powder Brake For Printing Machine
- 200 Unit / Units per Month
- SHENZHEN
- Credit Card
Product Details
Place of Origin: | Guangdong, China | Brand Name: | Rongtai | Model Number: | FZ 100A-1 |
Type: | Other, Magnetic Powder Brake | Use: | Other, Any printing machine . | Printing Type: | Other, Any type printing machine . |
Product Description
FZ 100A-1 Magnetic Powder Brake For Printing Machine
Working Principle:
- 1. Magnetic powder brake is adopted as the medium, forming magnetic power is applied to the chain in the transmission torque of the new drive without pieces, mainly from the inner rotor, outer rotor, excitation and magnetic composition chart
- 2. When the coil is not energized, active rotor rotates, centrifugal force, left behind in the inner wall of the active magnetic rotor, there is no contact between the powder and the driven rotor, rotor idling initiative
- 3. Objective generate an electromagnetic field after a DC power supply is turned on, the working medium is formed in the magnetic lines of magnetic force effect of magnetic chain, the inner rotor, outer rotor coupled together so as to achieve transfer, the braking torque
Features:
- 1. Control of high-precision torque control Torque is very wide, and high control precision, to convey torque and exciting current into the correct proportion, can achieve high-precision control
- 2. Superior durability, long life and heat-resistant, abrasion resistance, oxidation, corrosion resistance super super alloy powder, long life.
- 3. Magnetic characteristics superior stability constant torque characteristic good magnetic powder and the binding force between particles mutual stability, sliding torque is very stable, with no relation to the relative number of revolutions, can endure constant torque
- 4. Continuous sliding operation using the cooling effect of thermal deformation and excellent in uniform cooling structure, together with the magnetic powder high heat resistance to allow coupling and braking power and power sliding, smooth sliding operation can not cause vibration
- 5. Link sleek, non-shock Link the impact when small, can not impact the smooth start and stop. And resistance torque is extremely small, does not cause unwanted heat
- 6. Suitable for high frequency operation fast and agile response to special cooling structure for the use of high-frequency operation
- 7. Lightweight, maintenance-free, long life type concise lighter, use high temperature of the coil and special grease bearings, and wear special treatment for the armature prone to wear impose, extend the using life
Usage:
1.Buffer starting, stopping: Sleek feature uses links and buffering effect when given torque characteristics, namely the acceleration stability and peak torque shock does not occur
2.Continuous sliding, tension control
3.Torque limit Used
4.high-speed response with
5.the power absorbed by
6.positioning stopping
7.with a simulated load
Apply to flexible packaging machinery, such as printing presses, slitter, complex machine, etc.
Model | Main technical data | Outside dimension | Axle | section | R | Net weight(kg) | |||||||||||
torque | voltage | Revolving speed | Max current A | D1 | D2 | D3 | L1 | L2 | L3 | L4 | 6-S | d | t | diameter | depth | ||
FZ6A-1 | 6 | 24 | 1400 | 0.8 | 130 | 62 | 44 | 25 | 10 | 67 | 107 | M5 | 12 | 4 | M4 | 8 | 3 |
FZ12A-1 | 12 | 1 | 157 | 62 | 50 | 30 | 15 | 84 | 133 | M5 | 16 | 5 | M4 | 8 | 5 | ||
FZ25A-1 | 25 | 1.5 | 182 | 78 | 58 | 40 | 19 | 91 | 154 | M6 | 20 | 6 | M5 | 10 | 7.5 | ||
FZ50A-1 | 50 | 1.8 | 219 | 100 | 75 | 50 | 22 | 110 | 185 | M6 | 25 | 8 | M6 | 12 | 13 | ||
FZ100A-1 | 100 | 1000 | 2 | 290 | 120 | 90 | 65 | 25 | 143 | 238 | M8 | 30 | 8 | M10 | 20 | 28 | |
FZ200A-1 | 200 | 3 | 335 | 140 | 110 | 70 | 30 | 170 | 275 | M10 | 35 | 10 | M10 | 20 | 47 | ||
FZ400A-1 | 400 | 4 | 398 | 200 | 130 | 99 | 35 | 199 | 338 | M12 | 45 | 14 | M10 | 20 | 73 |
