Home > Products > Mechanical Electrical Equipment > Mitsubishi ZX-10YS Magnetic Particle Brakes

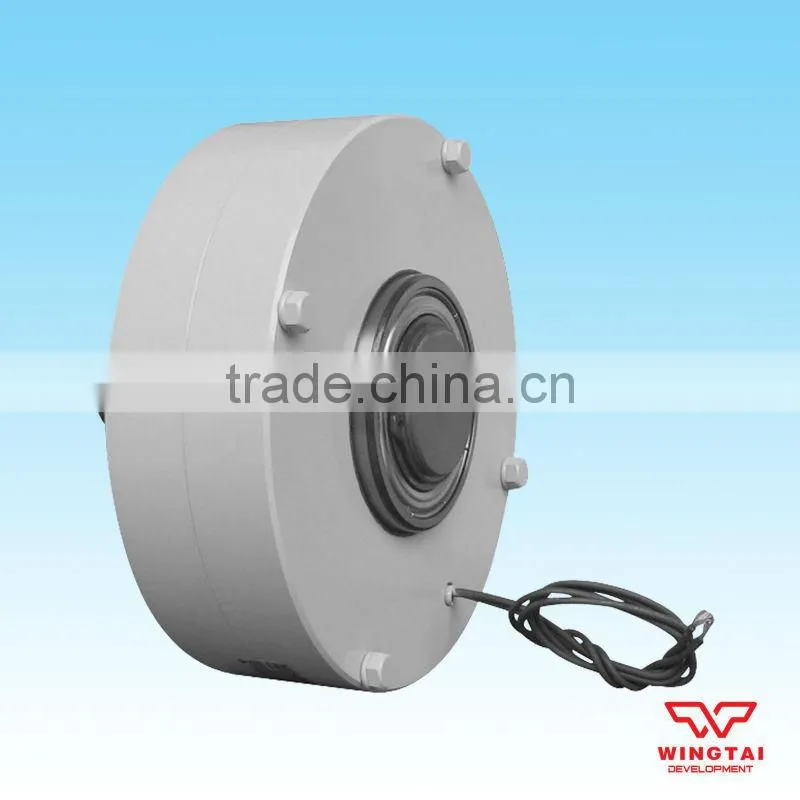

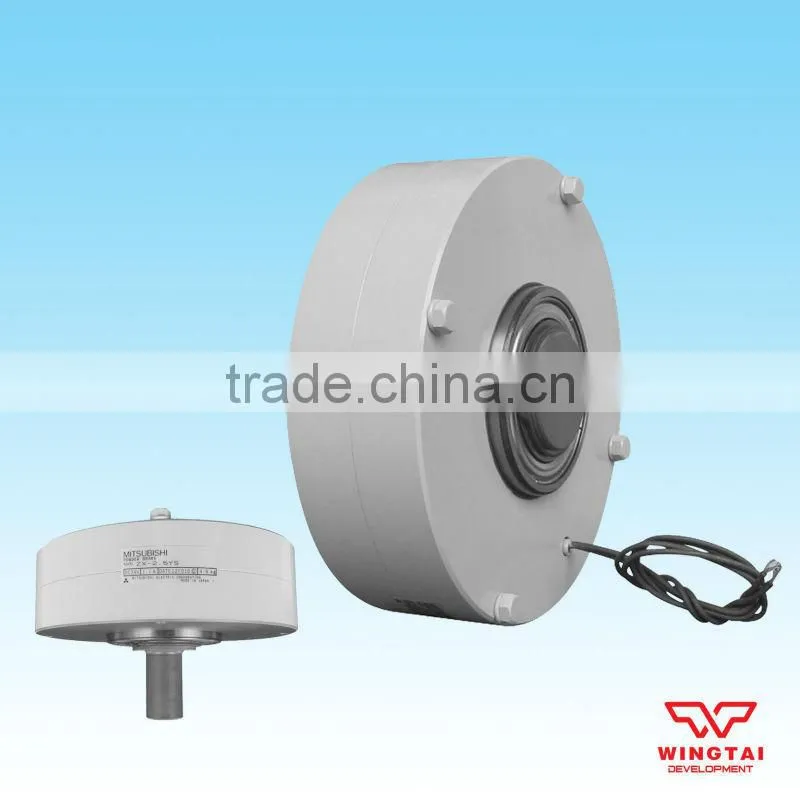

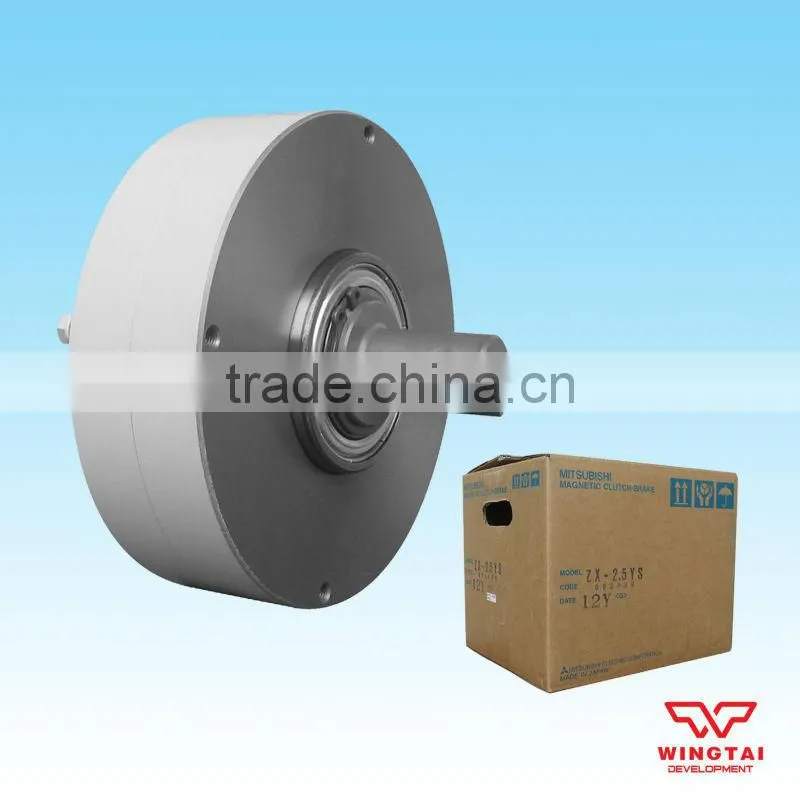

Mitsubishi ZX-10YS Magnetic Particle Brakes
- 200 Unit / Units per Month
- SHENZHEN
- Credit Card
Product Details
Place of Origin: | Japan | Brand Name: | Mitsubishi | Model Number: | ZX-10YS |
Type: | Other, Magnetic Powder Brake | Use: | Other, Any printing machine . | Printing Type: | Other, Any type printing machine . |
Product Description
ZX-YS-type magnetic powder brake
Feature
Rated torque: 25 to 100 (N · m)
Natural cooled projecting shaft type
1, 5 r / min from available
2, Rated voltage DC24V
Specification
Model | Rated torque (N·m) | Coil(75℃) |
| Allowable heat loss power(W) | Max. allowable speed (r/min) | Weight(kg) | |||
Voltage(V) |
Current (A) |
Impedance(Ω) |
Power (W) | ||||||
ZX-2.5YS | 25 | 24 | 1.1 | 21.9 | 26.4 | 3×10^(-4) | 150 | 600 | 4.9 |
ZX-5YS | 50 | 24 | 1.35 | 17.8 | 32.4 | 11×10^(-4) | 200 | 600 | 9.3 |
ZX-10YS | 100 | 24 | 1.5 | 15.6 | 36 | 40×10^(-4) | 300 | 600 | 19.5 |
