Japan MITSUBISHI ZA-Y Powder Brake

Specifications

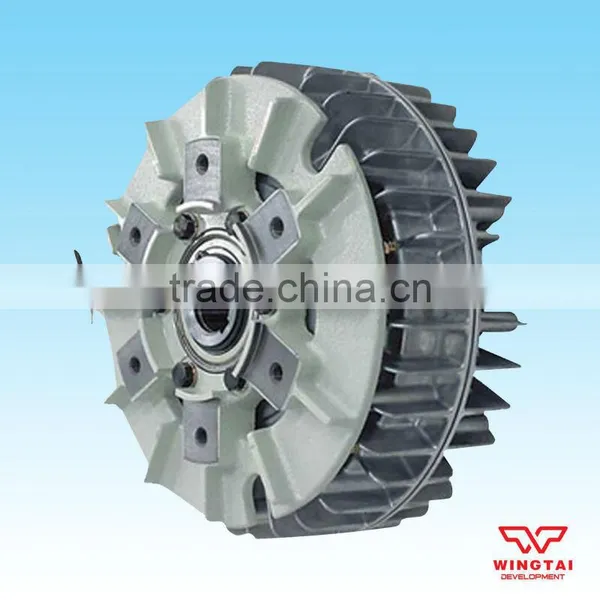

Mitsubishi Powder Brake ZA-5Y1
1.Non-contaminated and no noise
2.Apply in tensile force controlling
3.100% Japan Origin

ZA-Y-type magnetic powder brake

Feature

· Rated torque: of 6 ~~ 400 (N · m),

· Naturally cooled hollow shaft type

 1, 15 r / min from available

 2, the rotary models improve the cooling performance, to increase the thermal capacity of the outer peripheral

Specs:



Model	Rated Torque (Nm)	Magnetic Coil (75°C)			Flywheel Distance (kgm2)	Weight (kg)	Max Speed (r/min)	Powder Weight (g)
		Current (A)	Power (W)	Time (s)
ZA-0.6Y	6	0.30	7.2	0.10	1.55x10-3	2.4	1.800	14
ZA-1.2Y1	12	0.39	9.4	0.13	5.5x10-3	5	1.800	25
ZA-2.5Y1	25	0.73	17.5	0.15	9.4x10-3	7.4	1.800	39
ZA-5Y1	50	0.94	22.6	0.17	2.3x10-2	11	1.800	60
ZA-10Y1	100	1.21	28.8	0.30	6.6x10-2	21.5	1.800	117
ZA-20Y1	200	1.9	45.6	0.60	2.0x10-1	39.5	1.000	255
ZA-40Y	400	2.2	52.8	0.60	4.6x10-1	64	1.000	440





Application

Printing machinery, paper industry machinery, bag-making machinery, paper-making machinery , wire and cable machinery,coil machinery,wire machinery,strapping bag machinery, textile machinery, weaving-dimensional machinery, woodworking machinery, test equipment, analog load use, the kinds of mechanical precision tension controlling,general industrial equipment, other general industrial machinery.
