UK RK K Hand Coater/Wire wound bar/Rod Coater
Brand:RK
Place of Origin:UK
Model:0~9
Diameter:0.9CM (The diameter of No. 0 ~ No. 4 is 0.3cm )
Siz: 140*245mm / 255*375mm
Type:Close wound bar
RK Print has been the industry's most acclaimed manufacturer of coating equipment.Its products such as coating rods, KPP Printing proofer, gravure printing presses and so on are widely used internationally.You can experience products at Chinacoat International Coatings Exhibition hold every year.
The necessary number can be selected immediately because each number has a different handle color.Although there have in many brands of stainless steel coating rods at home and abroad, but RK's stick has been favored by old customers, many customers are come here especially!
RK 0 bar has two size--24.5cm and 37.5cm.It is more favorable In the areas of ink proofing, packaging and printing and daily chemical and so on.
Order Id |
Description |
Color Code |
Wet Film Deposit |
KHC.10.0 |
Short K-Bar No.0 |
White |
4µm |
KHC.10.1 |
Short K-Bar No.1 |
Yellow |
6µm |
KHC.10.2 |
Short K-Bar No.2 |
Red |
12µm |
KHC.10.3 |
Short K-Bar No.3 |
Green |
24µm |
KHC.10.4 |
Short K-Bar No.4 |
Black |
40µm |
KHC.10.5 |
Short K-Bar No.5 |
Horn |
50µm |
KHC.10.6 |
Short K-Bar No.6 |
Orange |
60µm |
KHC.10.7 |
Short K-Bar No.7 |
Brown |
80µm |
KHC.10.8 |
Short K-Bar No.8 |
Blue |
100µm |
KHC.10.9 |
Short K-Bar No.9 |
Tan |
120µm |

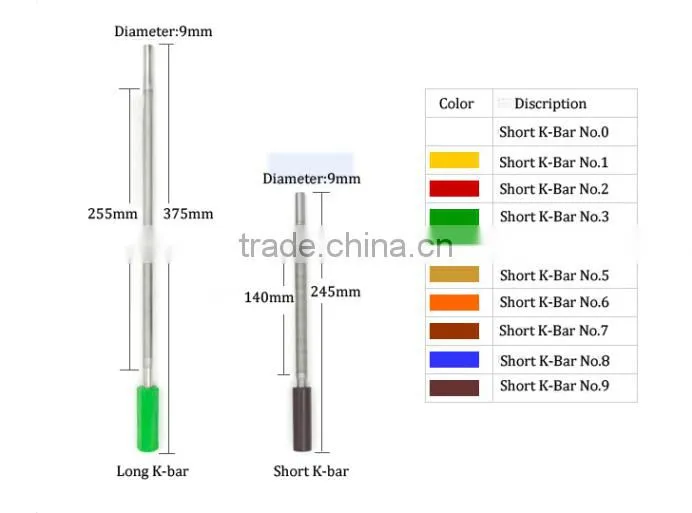

The total length of the short K bar is 24.5cm, the coating width: 14cm; the diameter of No. 0 ~ No. 4 is 0.3cm, the diameter of No. 5 to No. 9 is 0.9cm | |||
K Bars are produced by winding precision drawn stainless steel wire onto a stainless steel rod resulting in a pattern of identically shaped grooves. These grooves precisely control the wet film thickness.Close wound bars will produce coating thicknesses from 4 to 120µm. Still higher coating weights up to 500µm can be obtained using spirally wound bars.
|
|
|
