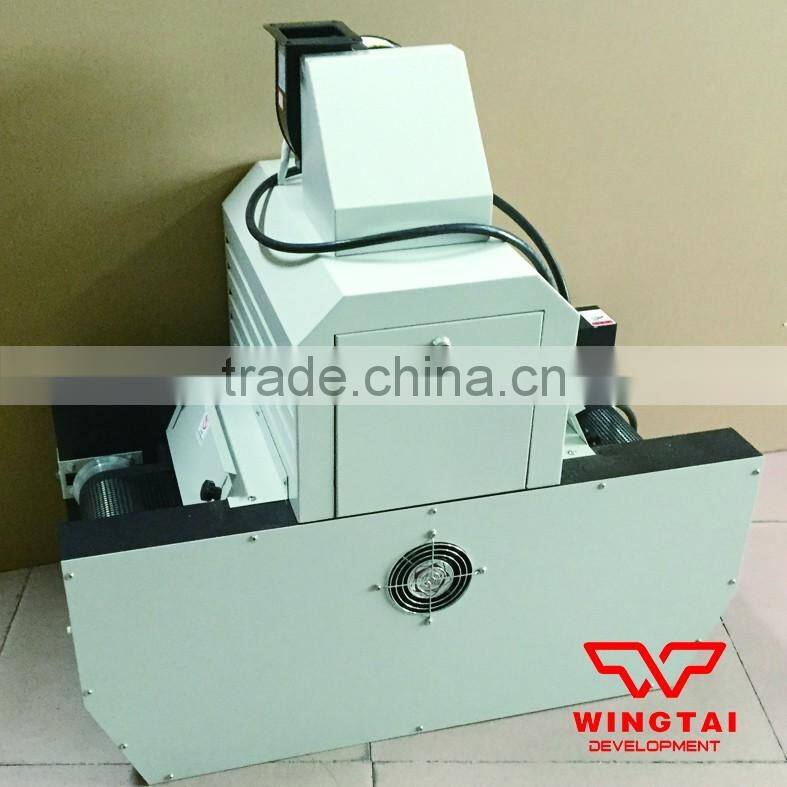

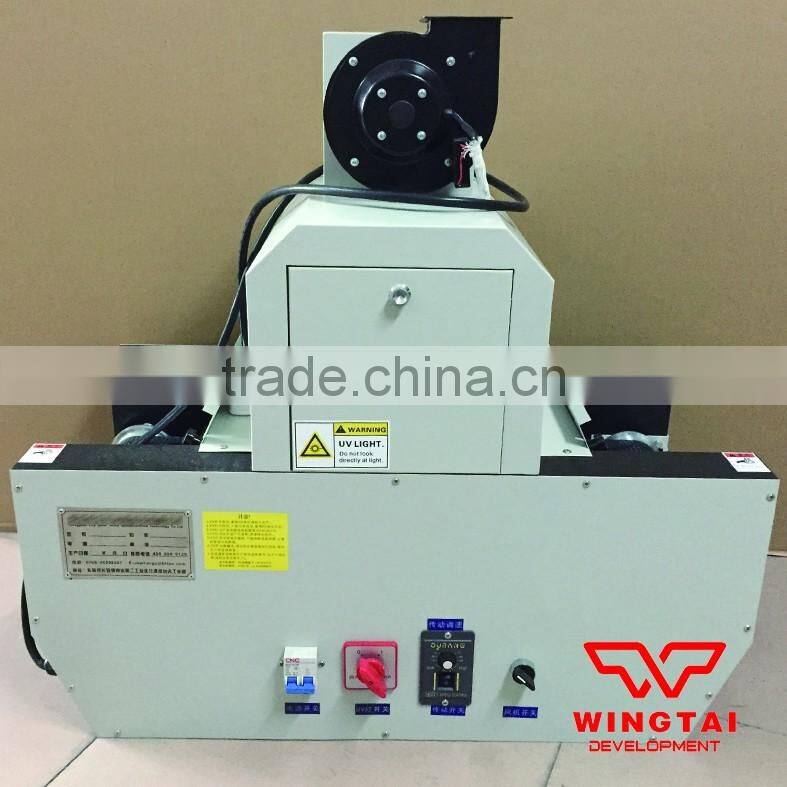

UV Solidifying Machine For Ink,Coating
1. Purpose
This machine is mainly used in curing and dried instantly, suitable for UV photosensitive coatings, inks, adhesion agent, injection-type or multiple materials of printing surface.
1.Printing: widely used in screen printing, offset printing, letterpress printing, self-adhesive trademark, metal nameplate, PC, PVC, ABS, PS, acrylic, Tetoron, glass, ceramics, electronic components, single-sided circuit board, etc...
2.Painting: the shiny wood surface coating, paper coating, plastic floor tiles, PU leather into polishing, fiber optic lines and other surface coating.
3.Adhesion agent: the circuit board CHIP components adhesion, a variety of electronic parts and glass adhesion, LCD adhesion, terminal sealant adhesion.
4.CASTING: the decorative color plate ware, decorative wear products (buttons, brooches, hair clips, belt buckles, etc.).
2. Features:
1. Instant dry, high production efficiency.
2. After drying make printing surface achieves high hardness, high gloss, abrasion resistance, solvent effect.
3. Using high quality and efficient lamp, in the lamp room, it forces to heat rejection, extend lamp service life, to protect the dried goods will not be temperature distortion.
4. Case body surface all spray, nice and corrosion-resistant.
The machine innovative design, reasonable structure, effective working area, full-function, easy operation, easy maintenance and adjustment, low noise, high reliability, low cost, low energy consumption, high production efficiency.
(Note: the machine out of the box, you should read the instructions before use)
UV Machine RX200-1 Parameter and Specification
Item Name |
Parameter |
|
Product name |
UV curing machine |
|
Model number |
RX200-1(1KW*1pcs) 220V |
|
Main technical data |
Outside dimension |

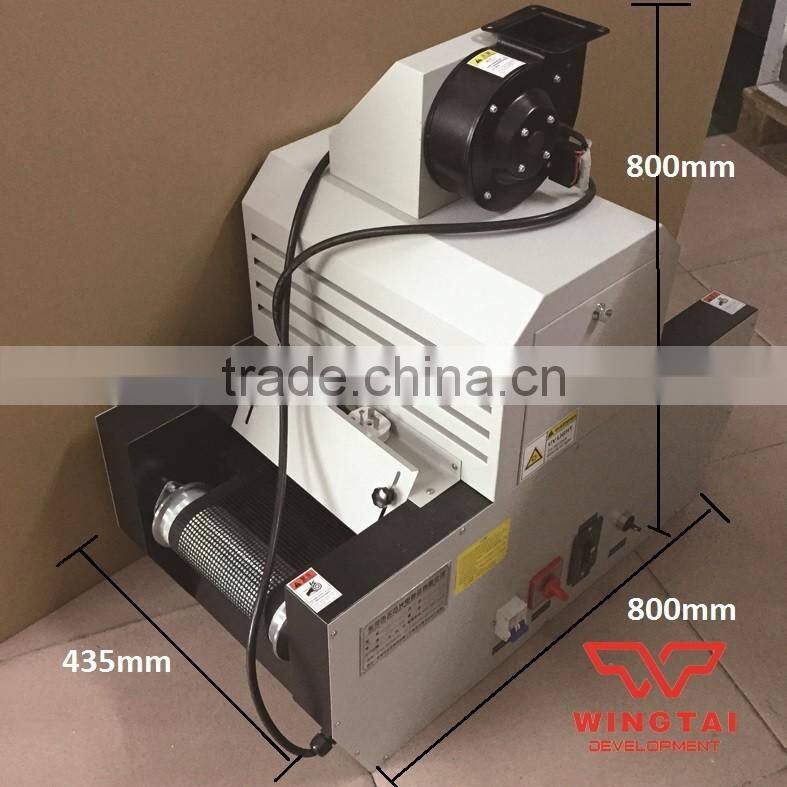

1.W435mm*H800mm*L800mm 2.Inlet / Outlet length: 170mm, UV part length:460mm 3.Inner width: 290mm, inlet height:70mm 4.Mesh belt width: 200mm
|
|
1.Adopts BLTUV high pressure mercury lamp 2.The main peak: 365mm, total 1 set, 1Kw 3.About distribution in the furnace (with ballast, trigger, aluminum reflector) |
||
Curing mode |
Plane illumination |
|
Power supply |
Two phase, AC220V, 50Hz |
|
Total power |
1.2 kw |
|
UV Oven’s structure & Features |
Outside material |
Adopts 2mm thick Q235 Cold-rolled steel (the best overall performance of strength, ductility and welding ) are bent and welded |
Surface treatment |
Surface grinding, polishing, phosphate (can increase metal corrosion resistance, paint adhesion) after treatment |
|
UV light adjustment |
Using hanger type adjustment, can adjust the height of lamp freely. |
|
Sealing material |
Sealing material using "3M" Armstrong gum strip, effectively shading, and enhance the sealing effect |
|
Conveyor belt |
Using teflon conveying mesh belt |
|
Conveying motor |
Stepless adjustment motor |
|
Control System |
Exhausting system |
1. Using force air cooling 2. UV area's unique air inlet shutters and a separate door ready to open for easy cleaning 3. Improve UV lamp life, reduce the UV oven temperature and the products’ temperature |
Others |
1.Control circuit apparatus are used Schneider and ohmic brand 2.Lamp switch independent control (two lamps can work at the same time, but also can work alone) |
|
Ground protection |
Structure safety grounding protection |
|
Environment |
Environment temperature |
-5℃~40℃ |
Relative humidity |
≤85%RH |
|
