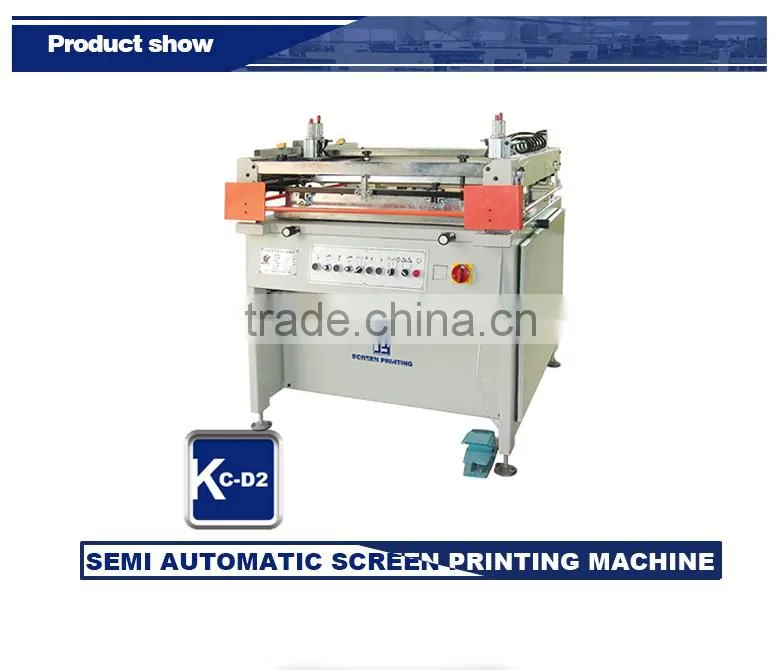

KC-D2 Adopted Italy motor reducer, Japanese clutch and electrical components to control lifting/descending and printing; the printing is controlled by frequency conversion, pressure by pneumatic, which enhanced the reliability of action, and prolonged the service life; the stainless steel table is precise and durable. it is suitable to the precise screen printing on varieties of flat materials, such as plastic, glass, metal, paper etc; and is widely applied to the industy of color paper, packing & printing, circuit board, thin film switch, scutcheon, etc. the electrode, reducer, clutch, and the electri- cal control system adopted imported components, Print speed can be adjusted by frequency conversion, the structure of stainless steel table surface is aluminum honeycomb. the pneumatic blade switching is fast and stable. it is automatic and synchronous screen separation the suction force of working table isadjustable, the sensitive safe bar ensures the personal safety.
Model | KC-D2 | |
MaX. printing Area(cm) | A:60*80 | B:50*70 |
MaX. size of screen frame(cm) | A:88*110 | 78*100 |
Frame size of printing table(cm) | A:79*91 | 69*81 |
MaX. printing speed(pc/h) | A:1100 | B:1200 |
Thickness of printing(mm) | 0-10 | 0-10 |
Height of synchronous screen separafion(mm) | 0-15 | 0-15 |
Working table L/T adjustment(mm) | ±10 | ±10 |
(Power supply)(3phases,4lines)V/HZ | 380/50-60V/HZ | 380/50-60V/HZ |
Power(k w) | A:1.8 | B:1.5 |
Air pressure(mm) | 0.4-0.6 | 0.4-0.6 |
Outline size(cm) | A:140*130*120 | 130*120*120 |
(N.W)(kg) | A:400 | B:350 |
